Sensaphone fgd-0006 MAGNETIC REED DOOR & WINDOW SWITCH User Manual

Page 2

background image

spacer

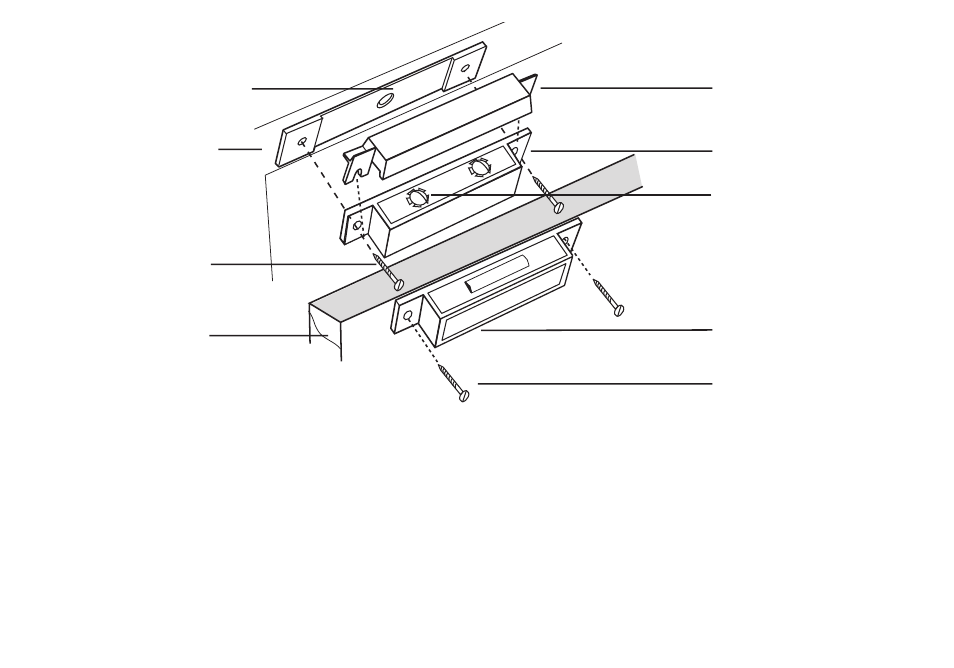

mounting screws

sensor

sensor casing

magnet

wire terminal

screws to

Sensaphone inputs

mount sensor to the

stationary surface,

such as a door or

window frame

mount magnet to the

moving surface, such as

a door or window

mounting screws

Mounting and Assembly Diagram

SPECIFICATIONS:

Normality: Normally closed

Dimensions: 2

1

2

” x

3

4

” x

1

2

” (part with screw terminals); 2

1

2

” x

3

4

” x

5

8

” (part with magnet)

Number per input: Multiple, wired in series

For customer service, call (610) 558-2700

SENSAPHONE

®

901 Tryens Road

Aston, PA 19014
