Sensaphone – Sensaphone fgd-0105v 10K ImmErSION Temperature Sensor User Manual
Page 2
mOuNTING
Install well into customer-supplied 1/2” FNPTsaddle (or Thredolet®).
Screw sensor into the well via the 1/8” NPSM brass fitting.
WIrING
Terminate with butt splice or soldering. Wire nuts are not recommended.
Use full 8’ (2.44m) lead length provided to avoid moisture migration up
the wire.

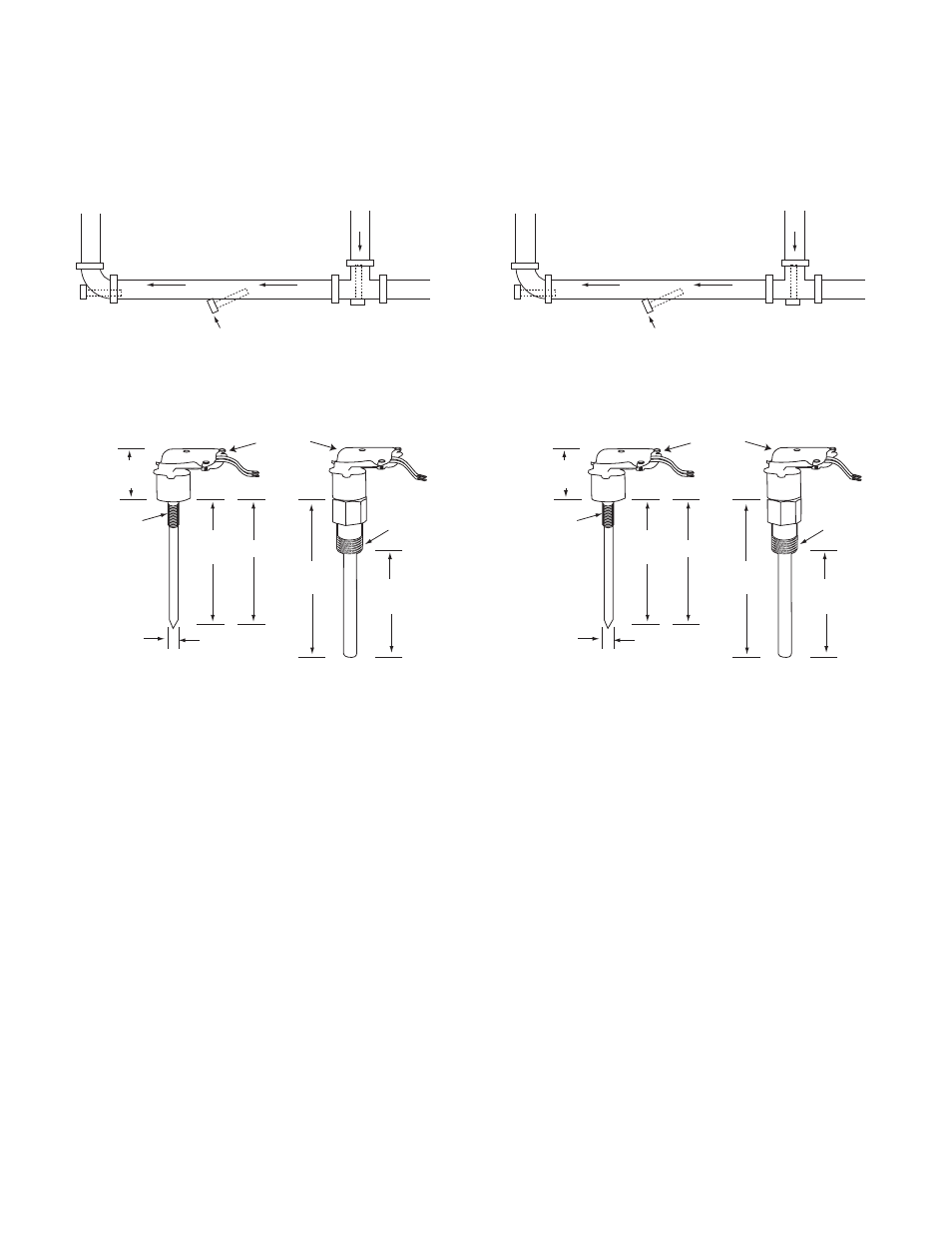

Flow
Flow
Angle must not allow end of well
Install the wells as shown to obtain
optimum well strength.
DImENSIONS
1/2" NPT
5.13
(13.03)
3.25
(8.26)
4.87
(12.38)
0.25
(0.63)
1.37
(3.49)
(XL)
1/8" NPSM
Sensor
Sensor in Well
Greenfield
Fitting
in
(cm)
For technical support, call 877-373-2700.
SENSAPHONE
®
REMOTE MONITORING SOLUTIONS
901 Tryens Road
Aston, PA 19014
www.sensaphone.com
