RKI Instruments SDM-E2 - Manual (Page 183)

Config Window • 178
Database Tab
The Database Tab allows you to view or change where the data from your SDM-E2
docking stations is saved. It also allows you to create a brand new database, import
data from another database, or export saved data.

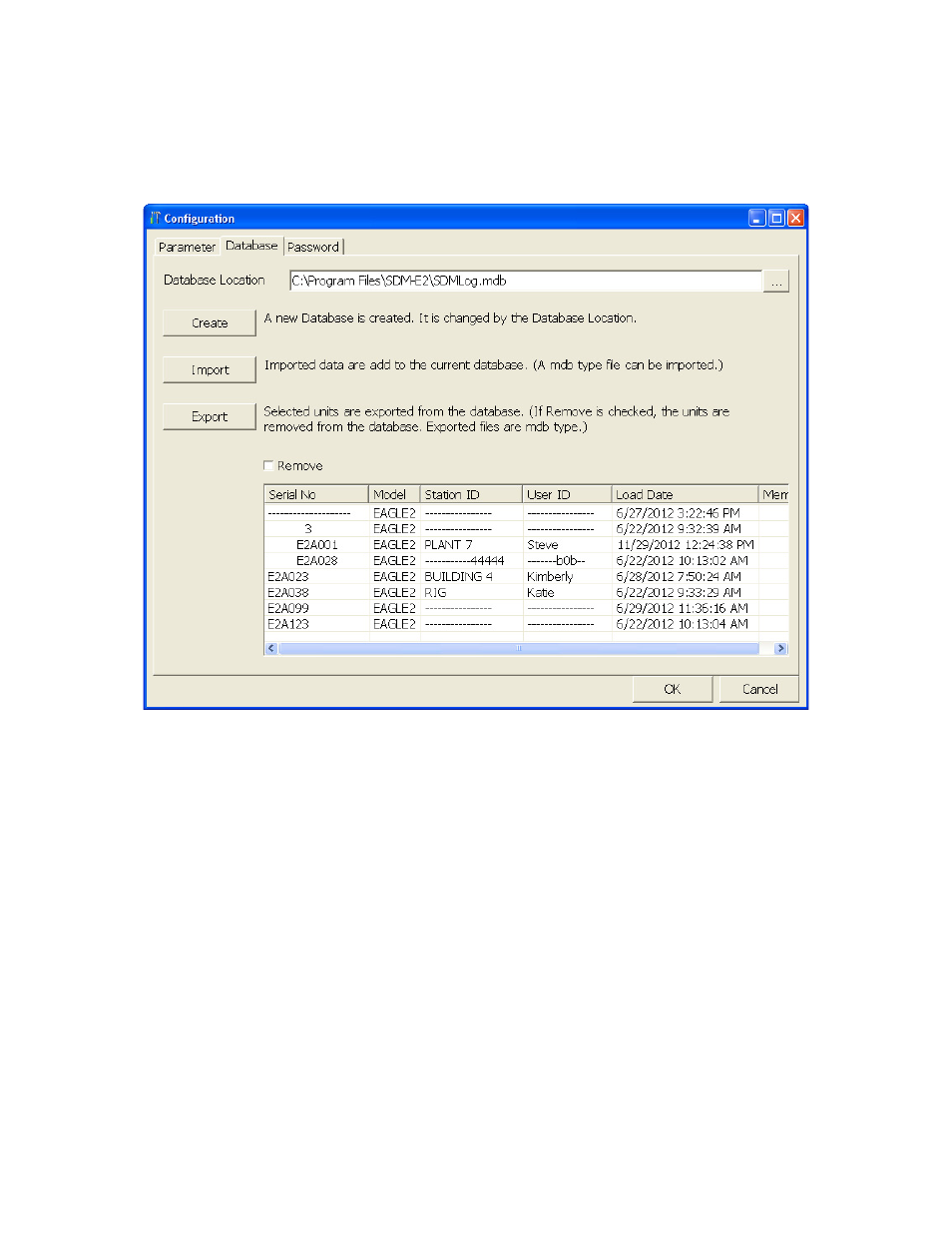

Figure 127: Config Window Database Tab
To change the database location:
1. Click the button to the right of the current location that has three dots on it.
2. Choose a new location where a database exists and click Open. The new
database location will be displayed in the Data Location field.
3. A window will appear telling you to restart the PC Controller Program. Click
OK.
4. Click OK in the Database Tab.
5. Click the Exit control button in the upper right corner of the main program
window.
6. Reopen the PC Controller Program.
To create a new database:
1. Click the Create button located along the left side of the Database Tab window.
