127 • Logs Button
To change the proportions of the table to the graph, click the divider between
the two and move it.
To display instrument information along with the data and graph, click the “i”
control button in the upper left corner.
6. In the table part of the screen,
• To view only events in the interval trend data file, click the Only Event
selection box.
• The catalytic combustible channel can be recorded in %LEL, ppm, or
%volume units depending on the instrument setting. When viewing the
interval trend data in table format, the units are displayed as the unit the
reading was recorded in.

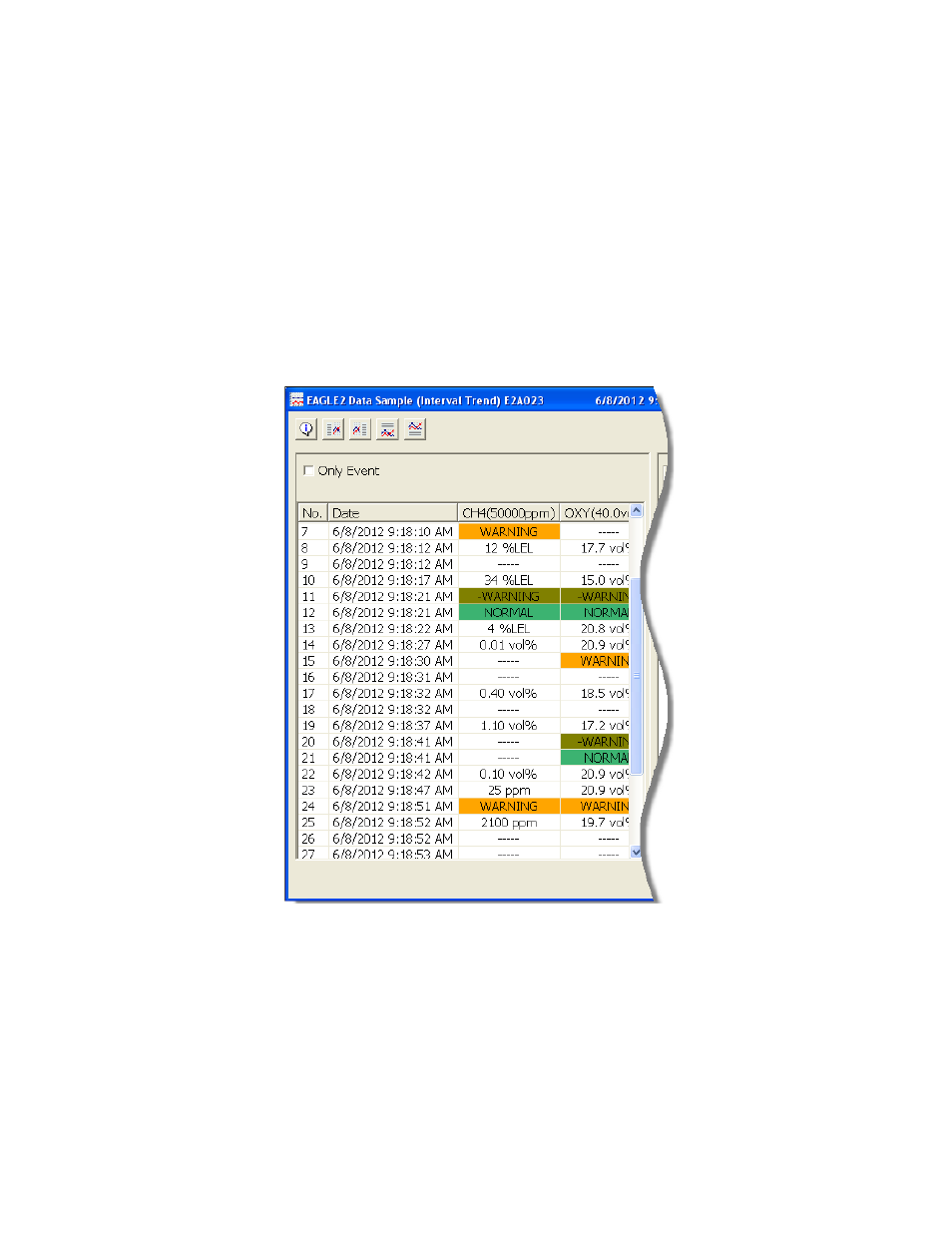

Figure 95: Interval Trend Data with Different Catalytic LEL Channel Units
