Operating the machine

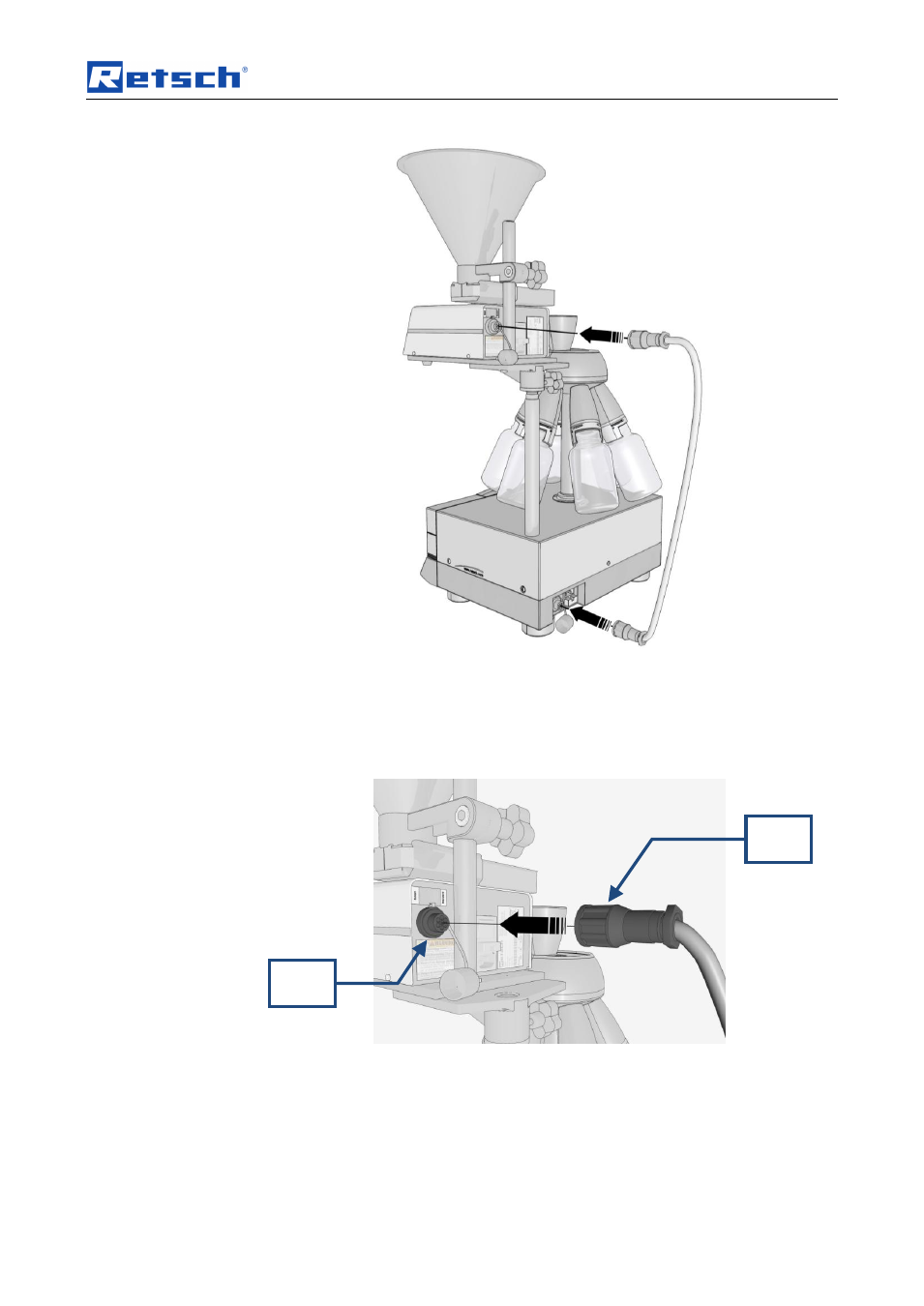

Fig. 5: Connection of the PT100 to the DR 100

Use the interface cable contained in the scope of supply for the retrofit kit to
establish the connection between the DR 100 and the PT100.

•

Insert the connection cable (VK) into the interface (DF) on the back of the
DR 100.

Fig. 6: Inserting the DR 100 connection cable

•

Insert the connection cable (VK) into the interface (PF) at the back of the
PT100.
