Operating the machine
17

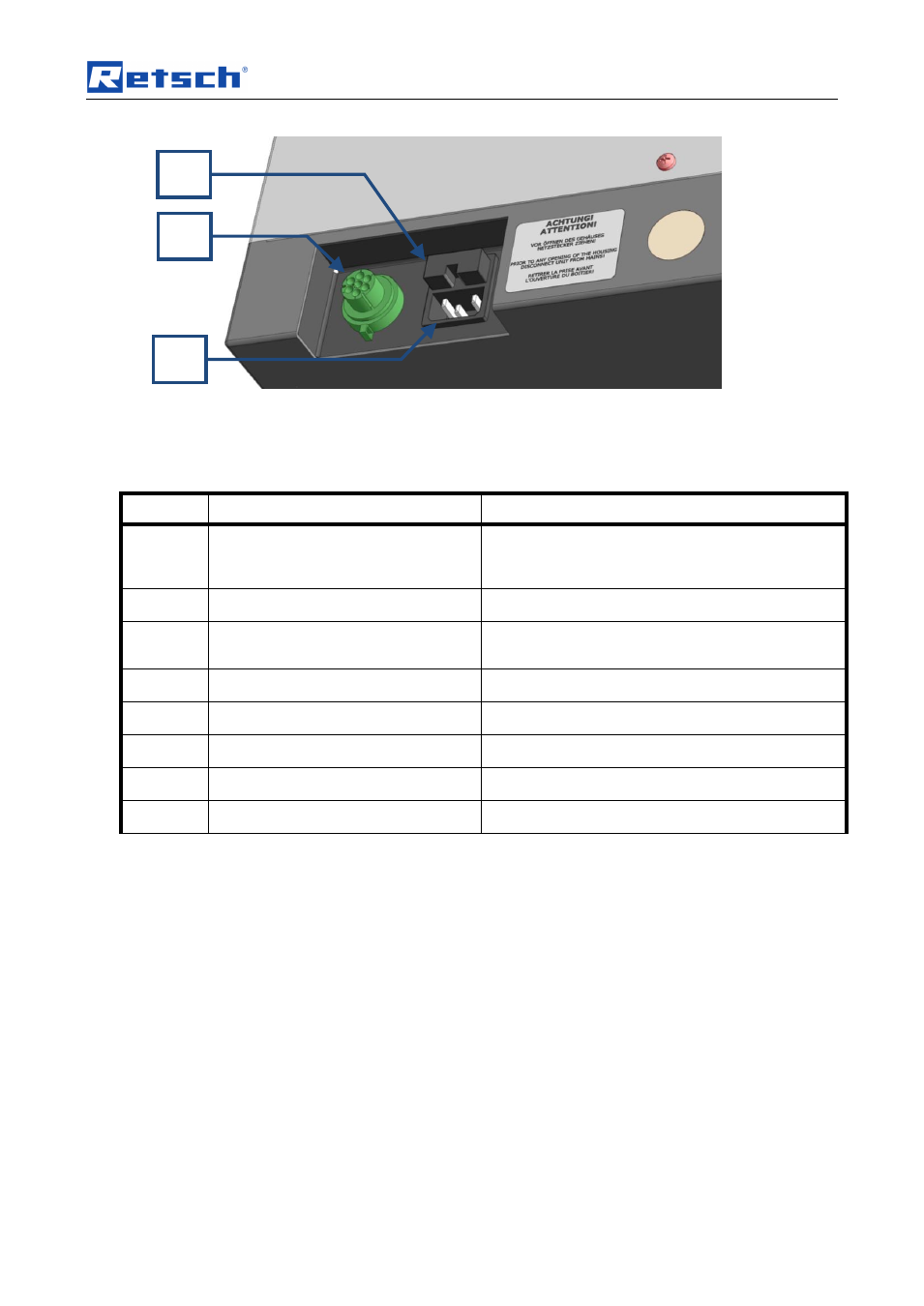

Fig. 4: Back of the device – power connection and interface
Pos : 7. 4 / 00005 Übersc hrift en/1. 1 Ü berschrif ten/ 1. 1 Ü bers chrift en BDA/ 11 Ü bersic hts tabelle der G erät et eile @ 0\ mod_1228990616846_9. doc @ 4972 @ @ 1
5.2 Overview table of the parts of the device
Pos : 7. 5 / 00010 Bedienungsanlei tungen Kapit elsamml ung en/PT 100 ( 2011)/0015 PT 100 Bedi enung/1515 PT 100 M odul Ü bersichtst abelle G erät et eile @ 3\ mod_1302779708867_9. doc @ 24955 @ @ 1
Element Description Function
A Dividing head hopper Accommodates a feed hopper, available as an
accessory, or guides the sample material from the
vibratory feeder into the tube dividers.
B Dividing head Divides the sample among the sample containers.
C Adapter tube with quick-release sample
outlet Holds the sample vessels
E Main switch Switches the device on and off.
K Control panel START / STOP, time display, runtime setting
L Fuse tray Contains two glass fuses
M Interface to the vibratory feeder Links the connection cable to the vibratory feeder
N Power socket Connection for the mains power cable
