Operating the machine
29
Pos : 7. 44 /00005 Ü berschrif ten/ 1. 1 Ü bersc hrift en/ 1. 1 Übersc hrift en BD A/ 11 Z ycl on Kass ett e demonti eren @ 3\ mod_1299765219709_9.doc @ 24120 @ 2 @ 1
5.17 Dismantle the cyclone cassette
Pos : 7. 45 /00010 Bedi enungsanleit ung en Kapitels ammlungen/T wis ter Mill ( 2011) /0015 Z yklon Mill T wis ter Bedi enung/ 1590 N IR Modul Kas et te entf ernen @ 3\ mod_1284538325818_9. doc @ 23457 @ @ 1

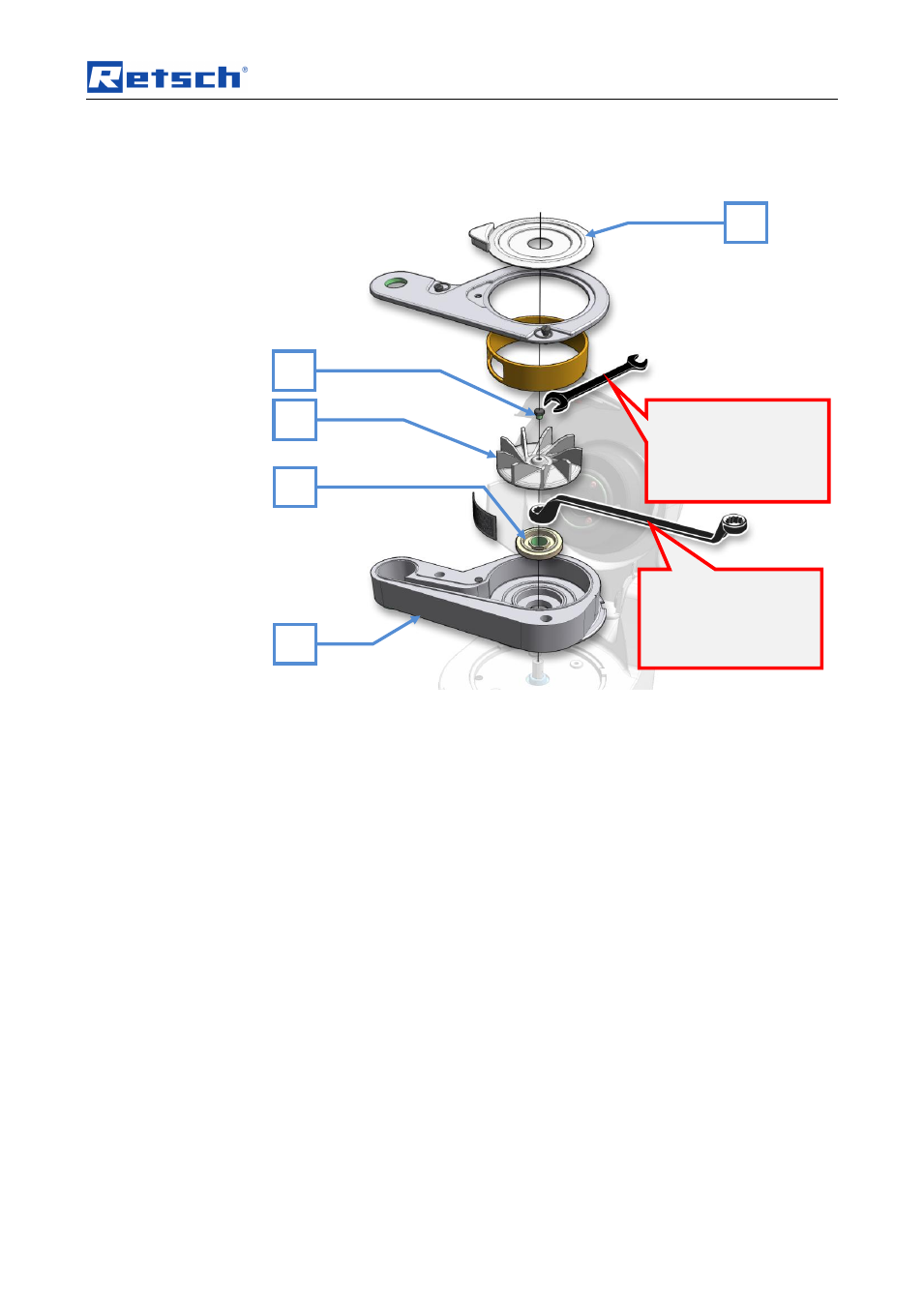

Fig. 22: Disassembling the cyclone cassette

Remove the grinding chamber cover (L).

Unscrew the rotor screw (S).

Remove the rotor (R).

Loosen the shim (T) using the double end ring spanner supplied.

When assembling the cyclone cassette, tighten the shim (T)
hand tight (5Nm-7Nm).
NOTICE
Tighten to approx.
5Nm - 7Nm (hand
tight).
NOTICE
Tighten to approx.
2Nm - 3Nm (hand
tight).
L
S
R
T
C
