5.8 Inserting sample vessel
Pos : 7. 24 /00010 Bedi enungsanleit ung en Kapitels a mmlungen/T wis ter Mill ( 2011) /0015 Z yklon Mill T wis ter Bedi enung/ 1595 T WI ST ER M odul Probenglas ei nsetz en @ 5\ mod_1360662909106_9.doc @ 37854 @ @ 1

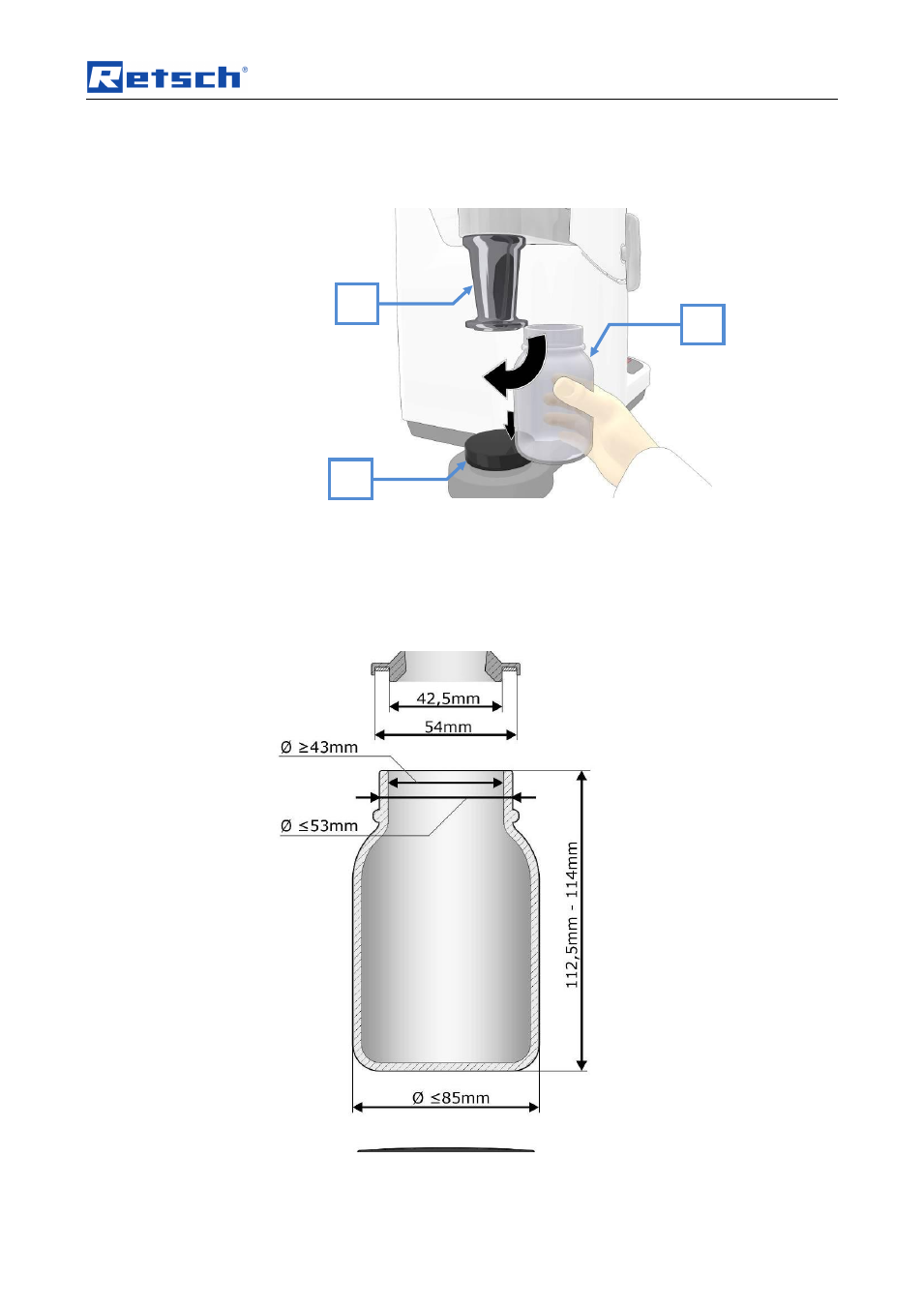

Fig. 9: Inserting the sample vessel
• Press the pressure disc (U) downwards when inserting the sample vessel
(F).
• Slide the sample vessel (F) between the pressure disc and
hopper (E).
• Ensure that the vessel seals tight with the hopper.
Fig. 10: Sample vessel dimensions
