Opening and closing of mill housing
0 I

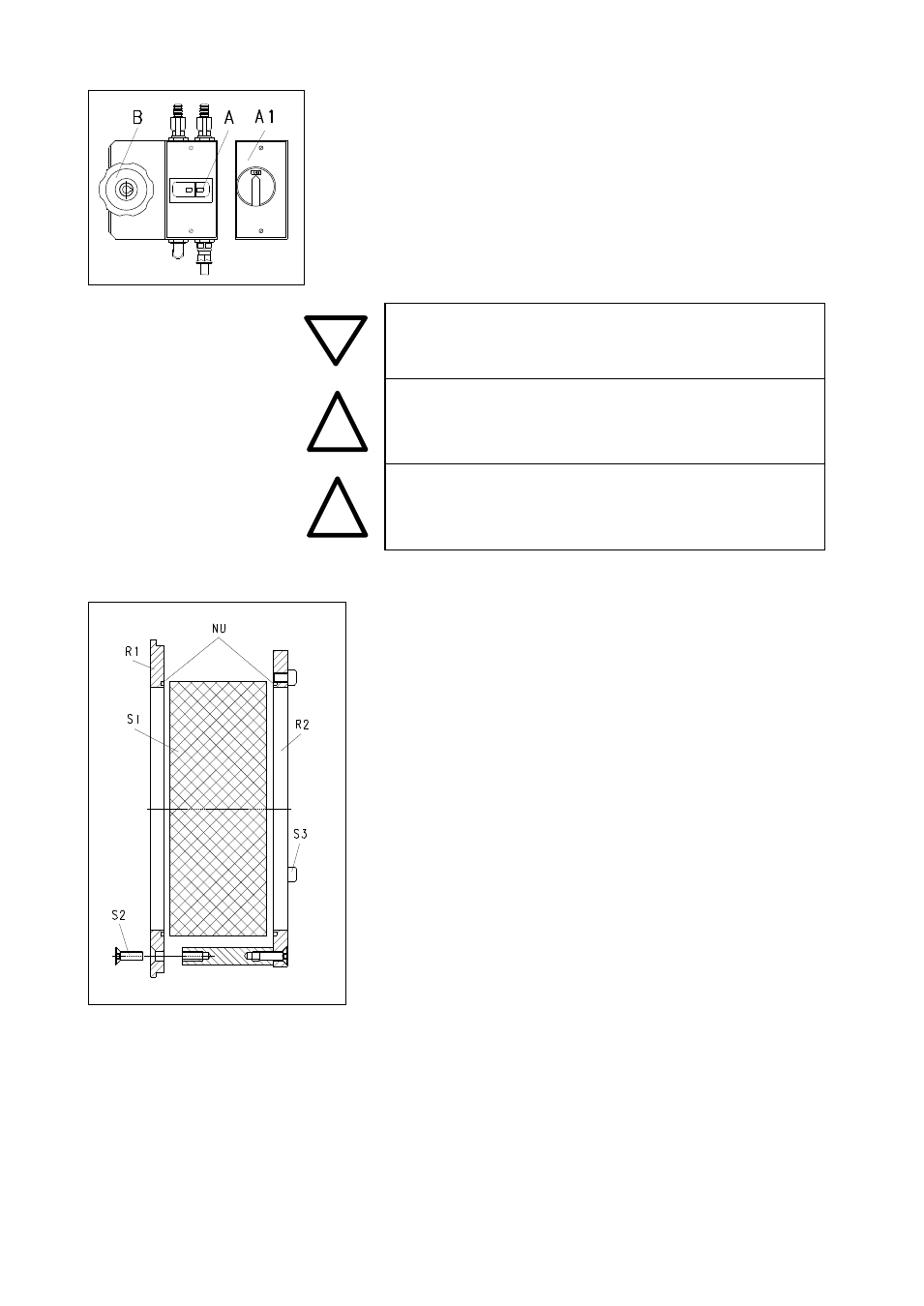

Fig.6
Only open when the SR 200 is switched off.
* Press button 0 on power switch A or, with A1, turn to OFF
position Fig.6
* Press hand wheel B and turn in anticlockwise direction
* Hand wheel locks into end position
* the door can be opened
* close in reverse order
Only close the door when the contact surfaces are absolutely free of
material to be crushed or other contaminants.
Mechanical components and the seal may be damaged.
!
Do not open the SR 200 when motor is running.
When crushing toxic or otherwise health-endangering materials,
there is a danger that health-hazardous dust may be inhaled.
!
Do not open the SR 200 and release the motor brake at the same time.
Danger of injury from unbraked rotor.
Insert sieve frame 360° with ring sieve
Fig.7
A selection of sieve frames which are chromium-plated, of stainless
steel and ring sieves of stainless steel with Conidur or round
perforations are available as accessories. Fig.7
Conidur 0.08/0.12/0.20/0.25/0.50/
0.75/1.0/1.25/1.5/2.0mm
Round hole 3.0/4.0/5.0/6.0/8.0/10.0mm
* Undo screws S2
* Remove ring R1 and insert sieve SI in the groove NU of the ring
R2
* Carefully mount the ring R1 until the sieve SI slides in the
groove NU
* Turn in screws S2 and tighten well
* Open door
* Insert sieve frame with ring sieve, ring R1 is to the front and ring
R2 to the rear
* Screw heads S3 on the ring R2 belong to the holes of the mill
housing
* Close door
Ensure that a collecting pan is mounted.
*
Start the SR 200
