Operating elements and their function

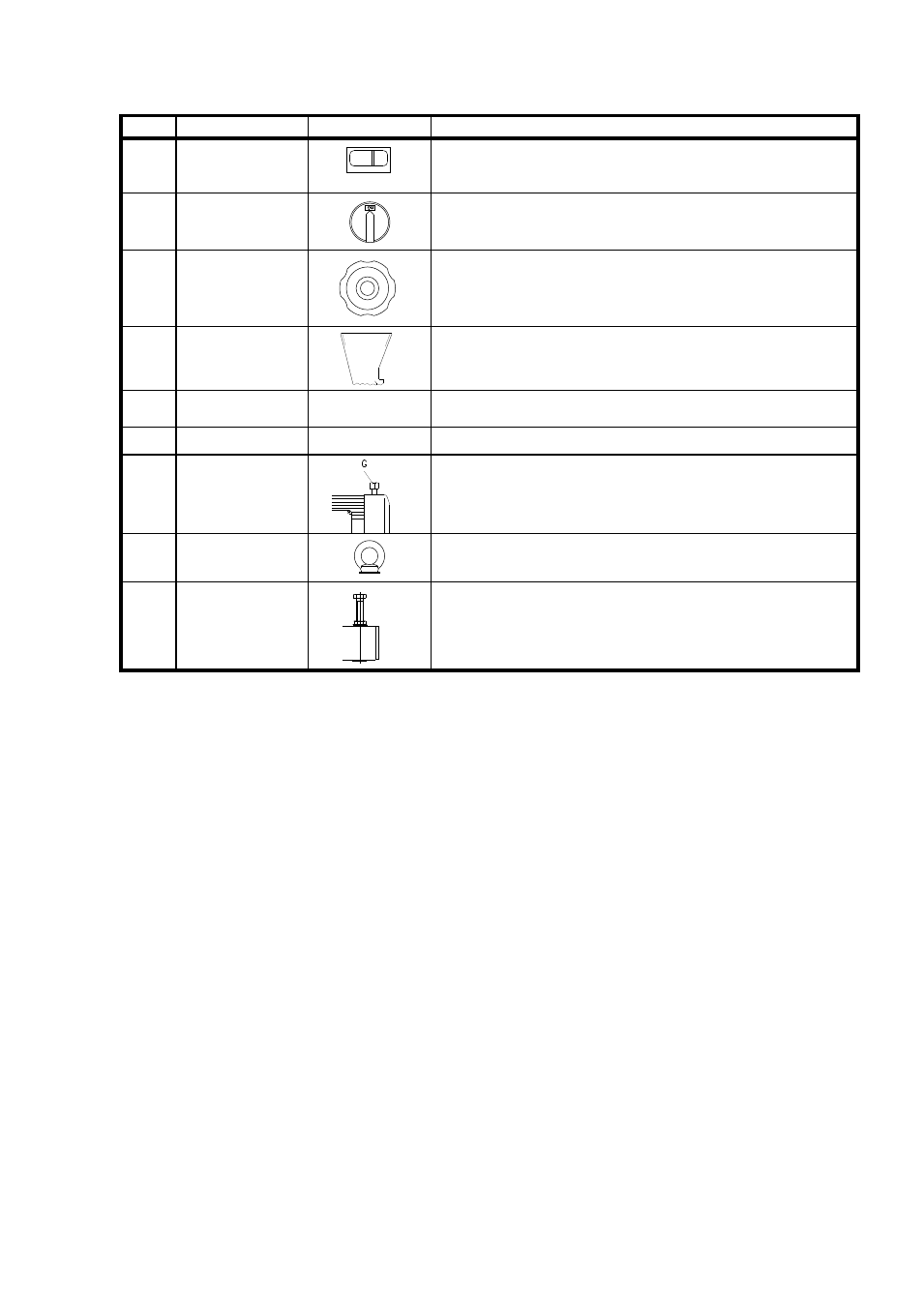

Overview of operating elements
Item Element Figure Function
A Power switch with
ON/OFF button
0 I
Isolates and connects the SR 200 from/with the power supply
I depressed = SR 200 is switched on
0 depressed = SR 200 is switched off
A1 Power switch with
knob Isolates and connects the SR 200 from/with the power supply
ON = SR 200 is switched on
OFF = SR 200 is switched off
B Door lock Opens and closes the door of the SR 200, clamps the door seal
Depressed and turned clockwise = locks the door
Depressed and turned anticlockwise = opens the door
D Feed funnel at door Takes the material to be crushed, but is not used to store this
material.
Reliably prevents the material to be crushed from splashing back.
E Filter hose
Page 15
Prevents build-up of the air pressure generated by the rotating rotor
and thus accelerates material throughput.
F 5l collecting pan
Page 15 Takes the crushed material.
G Release lever for
motor brake
When pressed to the rear, facilitates release of the motor brake and
thus makes it possible to rotate the rotor manually for cleaning
purposes.
H Transport screw Prevents damage to mechanical and electrical components during
transport.
I Setting screws on
underframe Make it possible to align the underframe when the floor is not even.
When screwed out, they expose the openings with which it is
possible to fasten the underframe to the floor, diam. 10mm
