Fig.2

Fig.3

We recommend that the SR 200 be mounted on an

underframe, which can be supplied as an accessory.

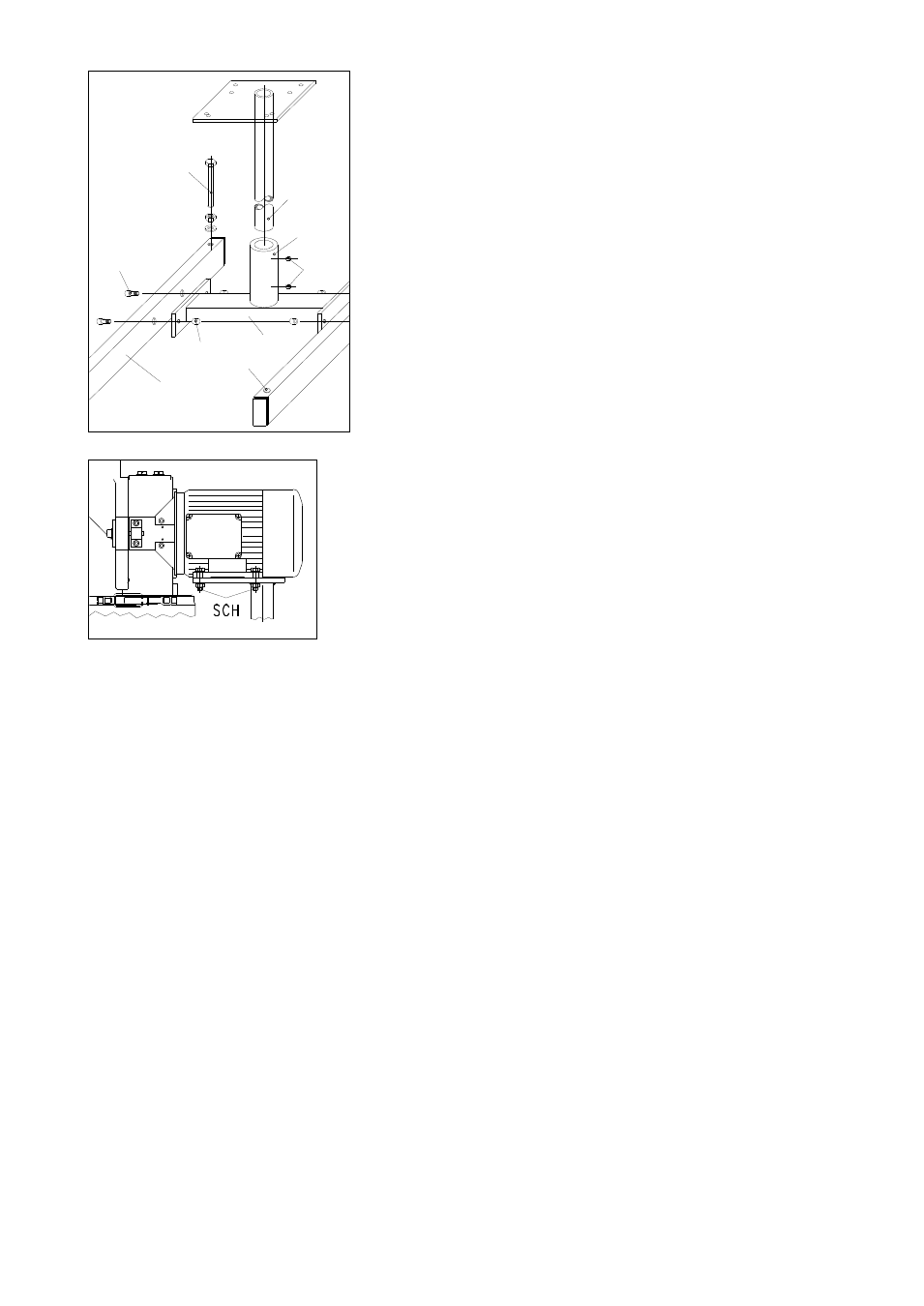

Fig.2

Mounting:

* Connect centre cross-piece 9 base side pieces 8 using the

cylinder-head screws 1

* Push covering caps 2 onto the projecting thread

* Place stand tube 3 in the sleeve 4 and fasten tight with the

headless screws 5

* If necessary, the underframe can be aligned using the

cylinder-head screws 6

So as to be able to fasten the underframe with screws,

maximum diam. 10mm possible, to the ground, the two setting

screws 6 and the front plastic caps 7 must be removed.

* Place SR 200 on the underframe

Fig.3

* To fasten hexagon-head bolts SCH M8x35 supplied with

the underframe, use spring washers and hexagon nuts
