9 Fault messages
Pos : 15.3 /00010 Bedi enungsanleit ung en Kapitels ammlungen/ SM200/ 0035 SM 200 Sic her hei tsf unktionen und Fehler anzeige3505 SM200 M odul F ehl er mel dungen ( 2013- 01-29 09: 01: 30) @ 3\ mod_1280233554638_9.doc @ 22214 @ @ 1
Flashing sequence Meaning Instruction
G4 and G5 flash
alternately
Safety circuit is not
closed

Close the door.

Pull the locking bracket forwards.

Allow the locking bolt to engage.
G5 flashes Motor block

Remove the blocking pieces of sample material
from the grinding chamber.

Press button G6

Press button G1.
G4 + G5 flash
simultaneously
Faulty relay contact

Service necessary!
G4 flashes Revolving field
detection 
Switch the two phases (L1 with L2) on the power
cable

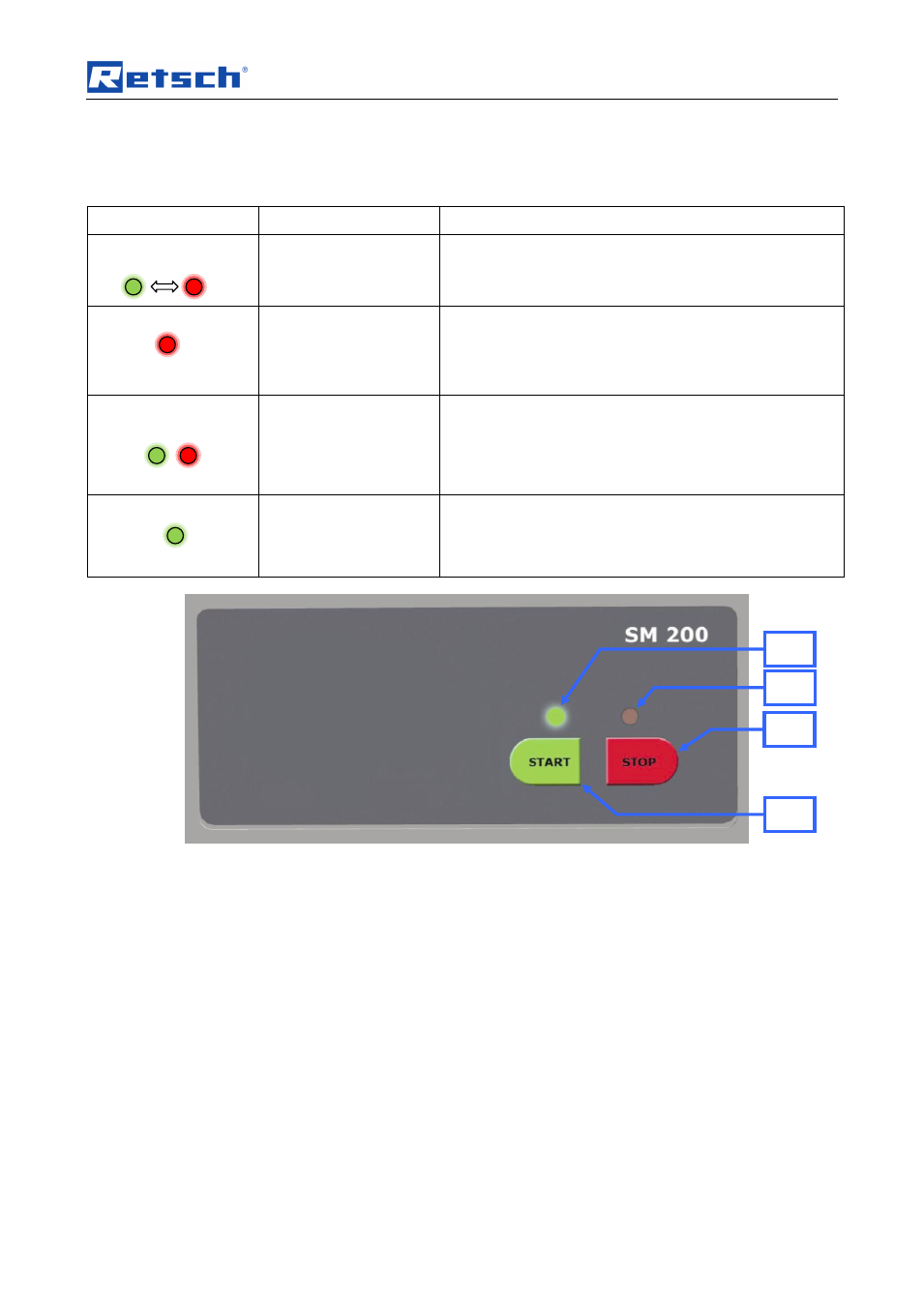

Fig. 30:Flashing sequence during error message
