Assembling and using the cyclone
29
Pos : 12.1 /00005 Ü berschrif ten/ 1. Ü berschrif ten/ 1 Ver wendung von Z ykl on und Bodenplatt e f ür Wei thalsfl asc hen – SM300 @ 3\mod_1279541116382_9.doc @ 20674 @ @ 1
7 Assembling and using the cyclone
Pos : 12.2 /00005 Ü berschrif ten/ 1. 1 Ü bersc hrift en/ 1. 1 Übersc hrift en BD A/ 11 Z ykl on Mont age ( 2) @ 3 \mod_1279541156398_9. doc @ 20683 @ @ 1
7.1 Cyclone assembly
Pos : 12.3 /00004 Warnhinweis e/ V0014 VOR SICHT Rotier ende Messer @ 2\ mod_1263480051017_9.doc @ 18590 @ @ 1
CAUTION
2.V0014
Injuries to limbs
Rotating blade
–
Can cause injury to hands and feet.
• Keep hands and feet away from the device openings
when the device is switched on.
• Pull the plug out before cleaning or retrofitting.
Pos : 12.4 /00004 Warnhinweis e/ V0001 VOR SICHT Abgetr ennt e Finger - Eingriff in den dr ehenden R otor @ 2\ mod_1279183830134_9. doc @ 20580 @ @ 1
CAUTION
3.V0001
Risk of injury to fingers
Reaching into the turning rotor
–
Unintended reaching into the grinding area and the turning
rotor.
• Never connect the device to the mains without the
discharge flange.
• Only operate the device with discharge flange.
Pos : 12.5 /00010 Bedi enungsanleit ung en Kapitels ammlungen/ SM300 Z ykl on (2011)/ 0001 Z ySM Kapit el Z ykl on Mont age/ 0201 Z ySM M odul M ont age Z ykl on @ 2 \ mod_1279186828533_9. doc @ 20601 @ 3 @ 1

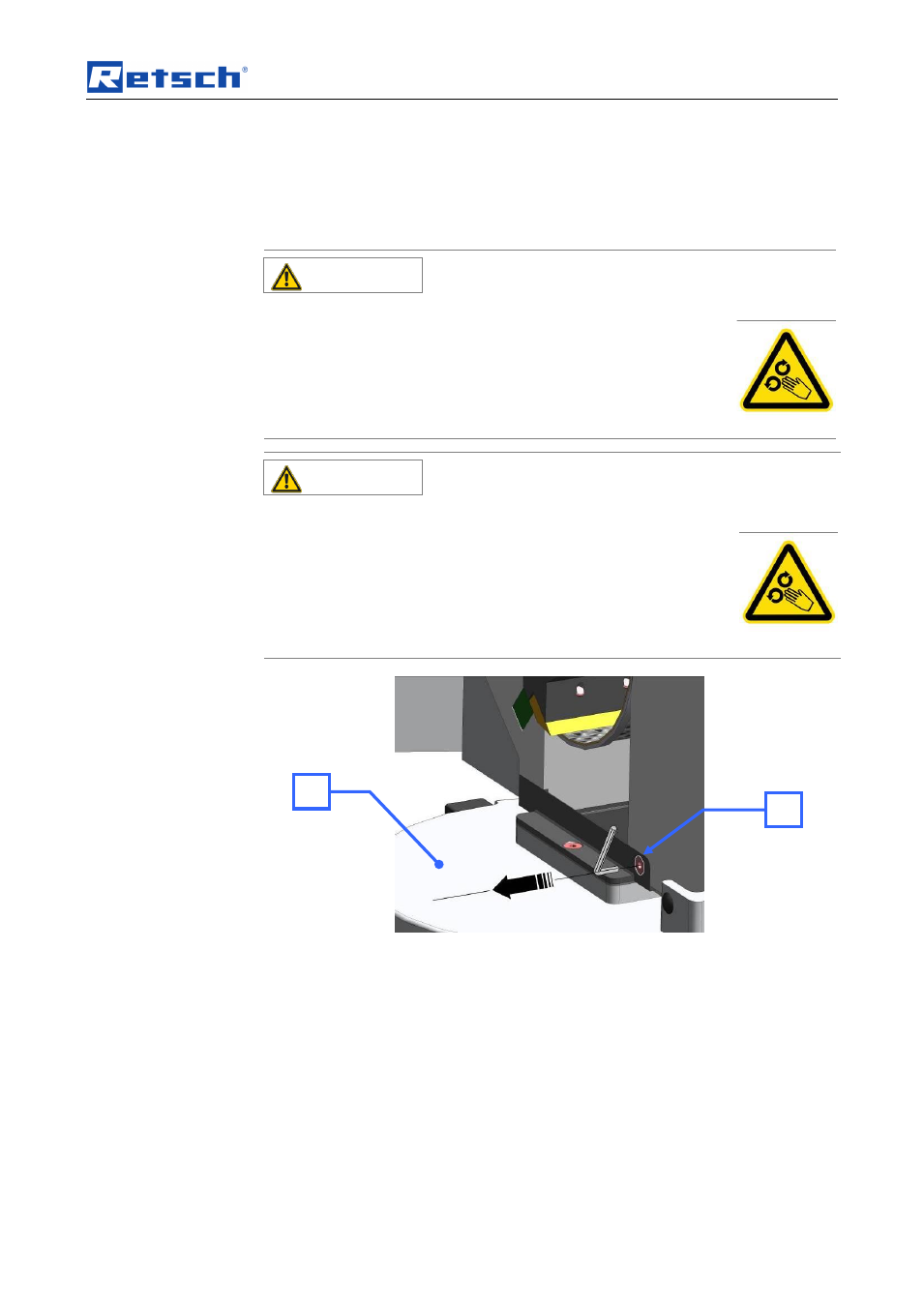

Fig. 16: Removing the discharge flange
• Disconnect the device from the mains.
• Loosen the screw (A1).
• Pull off the discharge flange (AV).
A1
1
AV
1
