Cleaning and service
34
Pos : 14.1 /00005 Ü berschrif ten/ 1. Ü berschrif ten/ 1 R einigung und Wart ung @ 0 \ mod_1231167007723_9. doc @ 5450 @ @ 1
8 Cleaning and service
Pos : 14.2 /00005 Ü berschrif ten/ 1. 1 Ü bersc hrift en/ 1. 1 Übersc hrift en BD A/ 11 Sc hnei dleis ten eins tell en @ 2\ mod_1264610496967_9. doc @ 18737 @ @ 1
8.1 Adjusting the cutting bars
Pos : 14.3 /00010 Bedi enungsanleit ung en Kapitels ammlungen/ SM300/ 0015 Bedienung/ 0501 SM 300 M odul Sc hnei dleist en eins tell en @ 2\ mod_1264605205204_9.doc @ 18730 @ @ 1
To ensure that the device will function satisfactorily, it is necessary to check the
cutting gap (target spacing 0.3 mm). The (SL) cutting bars are therefore moveable
so that the cutting gap can be set.

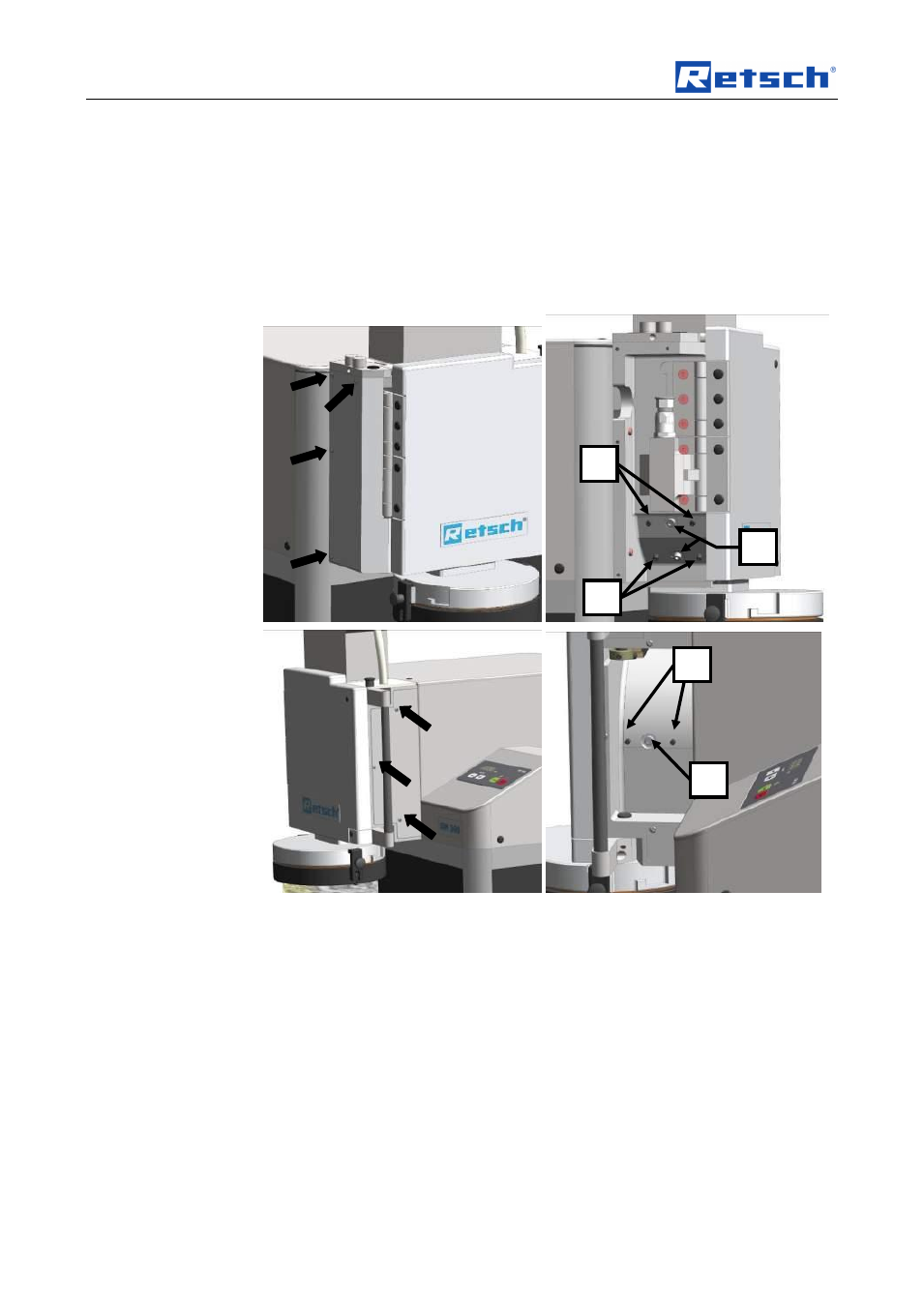

Fig. 26: Access to the cutting bars

Loosen the four screws in the left cover.

Loosen the three screws in the right cover.

Open the grinding chamber door.

Pull the rotor approx.10 mm out of the grinding chamber until it can move
freely.
U
H
U
H
W
H
W
H
U
H
