30
ATTACHING & DETACHING
ATTACHING HEADER AND ADAPTER TO TRACTOR
The adapter should be connected to the header,
with float lock-out pins in engaged position.
1. Choose a level area.
2. Follow the procedure for connecting adapter to
tractor on pages 17 to 19.
3. For 942 and 970 Series headers, when
connecting hydraulics, also connect reel lift
coupler (A) to TAN-EXTEND port on TV140
tractor or to TAN-RETRACT port on 9030
tractor.
4. After attaching is complete, raise header and:
At right hand side, move float lock-out pin from
engaged position (K) to storage position (L). At
left hand side, move float lock-out pin from
engaged position (M) to storage position (L).

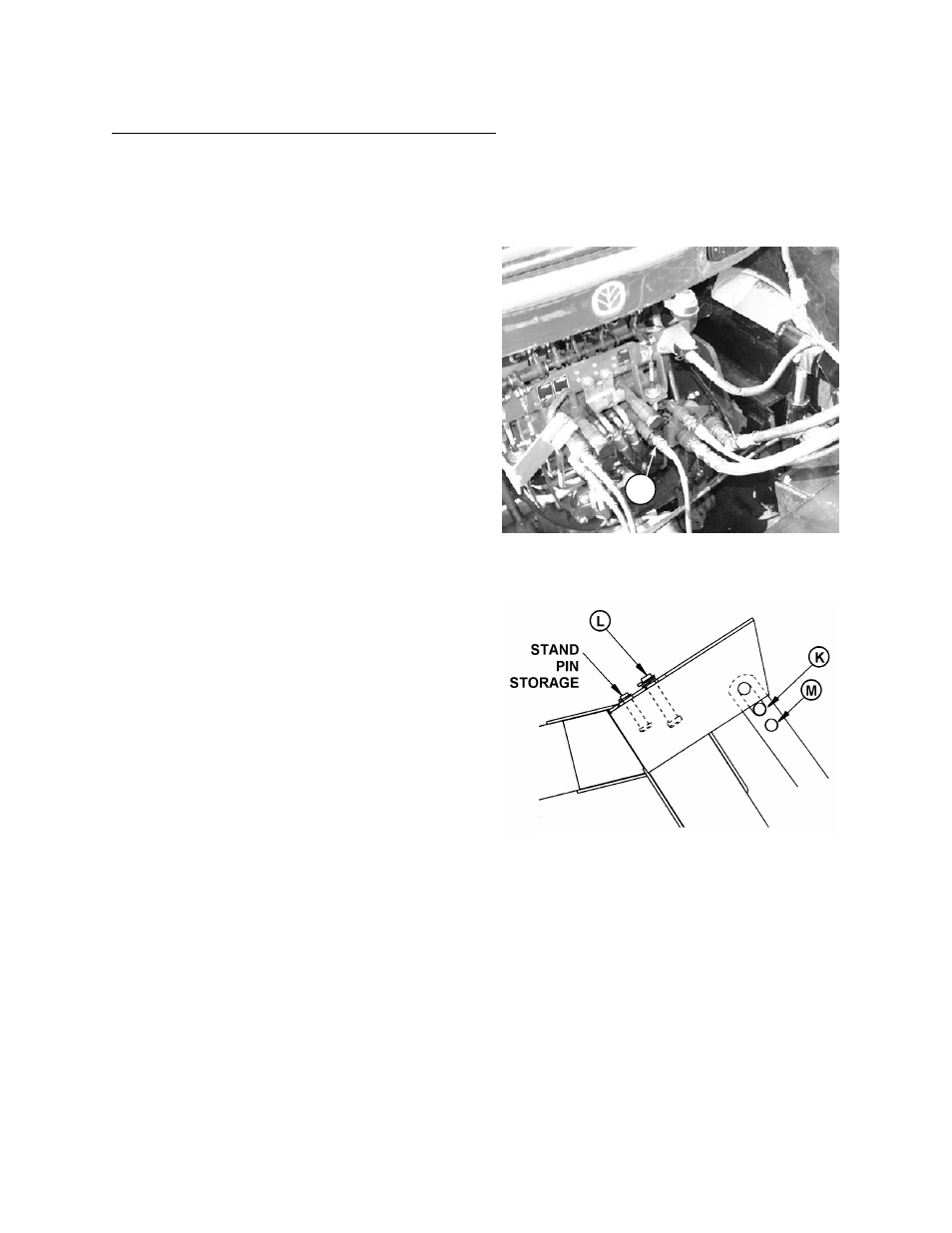

FLOAT LOCK-OUT PINS – STORAGE
HYDRAULIC & ELECTRICAL CONNECTIONS
TV140 without AUX. PUMP SHOWN
A
