28

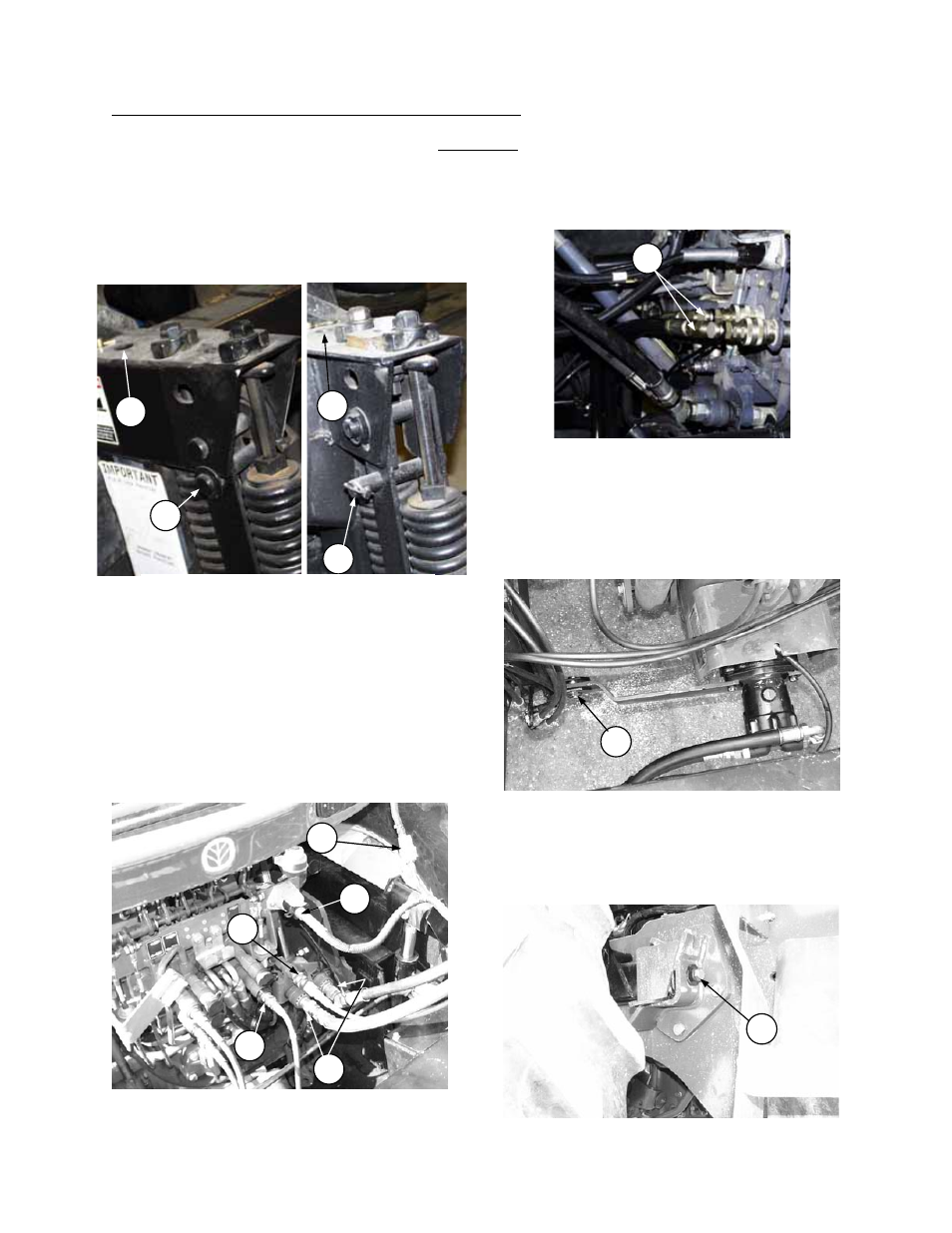

ATTACHING & DETACHING
DETACHING HEADER AND ADAPTER FROM TRACTOR
Using this procedure, adapter will remain attached to the header. This would be appropriate when tractor is
required for other use. Instructions for detaching header only from adapter and tractor are given beginning on
page 26.
1. Choose a level area. Lower the reel and raise
the header. Stop engine and remove key.
2. Move float lock-out pin from storage position
(C) to engaged position (D), both sides.
3. Lower header. Stop engine and remove key.
4. Disconnect wiring harnesses (A) and (B).
Disconnect hydraulic hoses at ¾” couplers (G),
reel lift coupler (H) and ½” coupler (J). Leave
header lift couplers (K) connected. Plug or
cap all couplers to prevent hydraulic system
contamination.
5. For TV140 Tractor with NH Auxiliary Pump:
Disconnect sickle drive ¾” couplers (L).
6. For 9030 Tractor & TV140 Tractor with
MacDon Header drive Pump: Disconnect
torque arm from channel (F) and rotate arm up
to clear adapter frame.
7. Remove bolt (E) from frame, both sides and
back partially away from adapter (enough
room to stand between tractor and adapter).
Stop engine and remove key.
L
DISCONNECT SICKLE DRIVE HOSES
TV140 with AUXILIARY PUMP
C
D
C
D
R/H SIDE L/H SIDE
FLOAT LOCK-OUT PINS - ENGAGED
DISCONNECT TORQUE ARM – MD PUMP
F
DETACH 4 X 4’S FROM TRACTOR
E
H
G
J
B
A
DISCONNECT HYDRAULICS & ELECTRICAL
(TV140 without AUX. PUMP SHOWN)
