14
INITIAL SET-UP
PREPARING THE 721/722 HAY CONDITIONER
(continued)

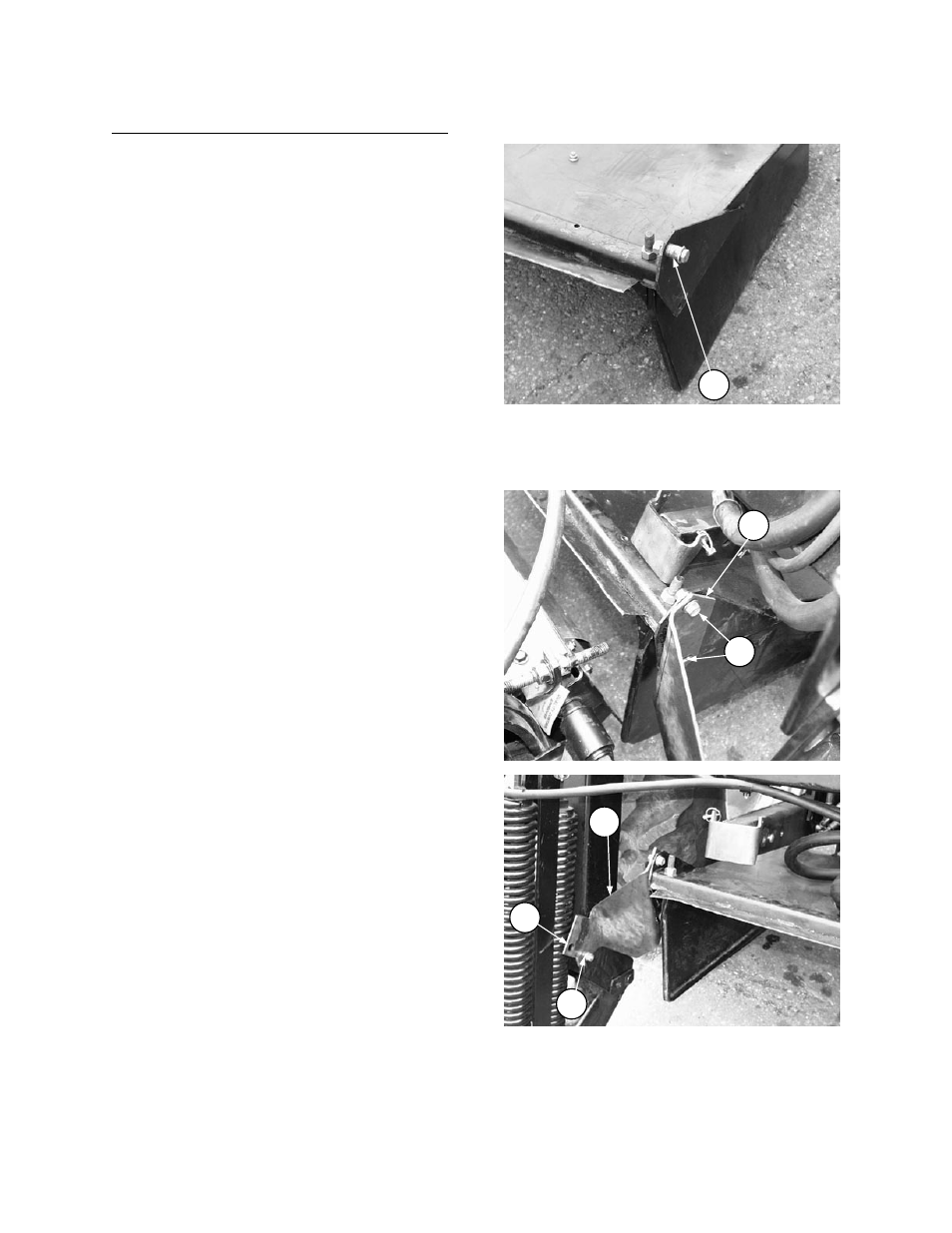

7. Remove spacers (G) from shield and install in
brackets on adapter frame legs at location
shown in Step 8 below. Ensure that bolt head
and spacer are positioned on inboard side of
frame bracket and lockwasher and nut are
positioned outboard.
8. Install front supports (H) supplied with
completion package onto spacers installed in
Step 7. Bolt to forming shield with ½ x 1 flange
bolts and flange nuts at (J) as shown.
IMPORTANT: Use top hole (K) for flat header
angle and bottom hole (as shown) for steep
header angle. Damage to pump or forming shield
may occur if mounting hole does not match header
angle. See “Header Angle” in Operation Section.
REMOVE SPACERS
G
INSTALL FRONT SUPPORTS
H
J
K
H
G
