Form # 147083 Issue 01/07 26

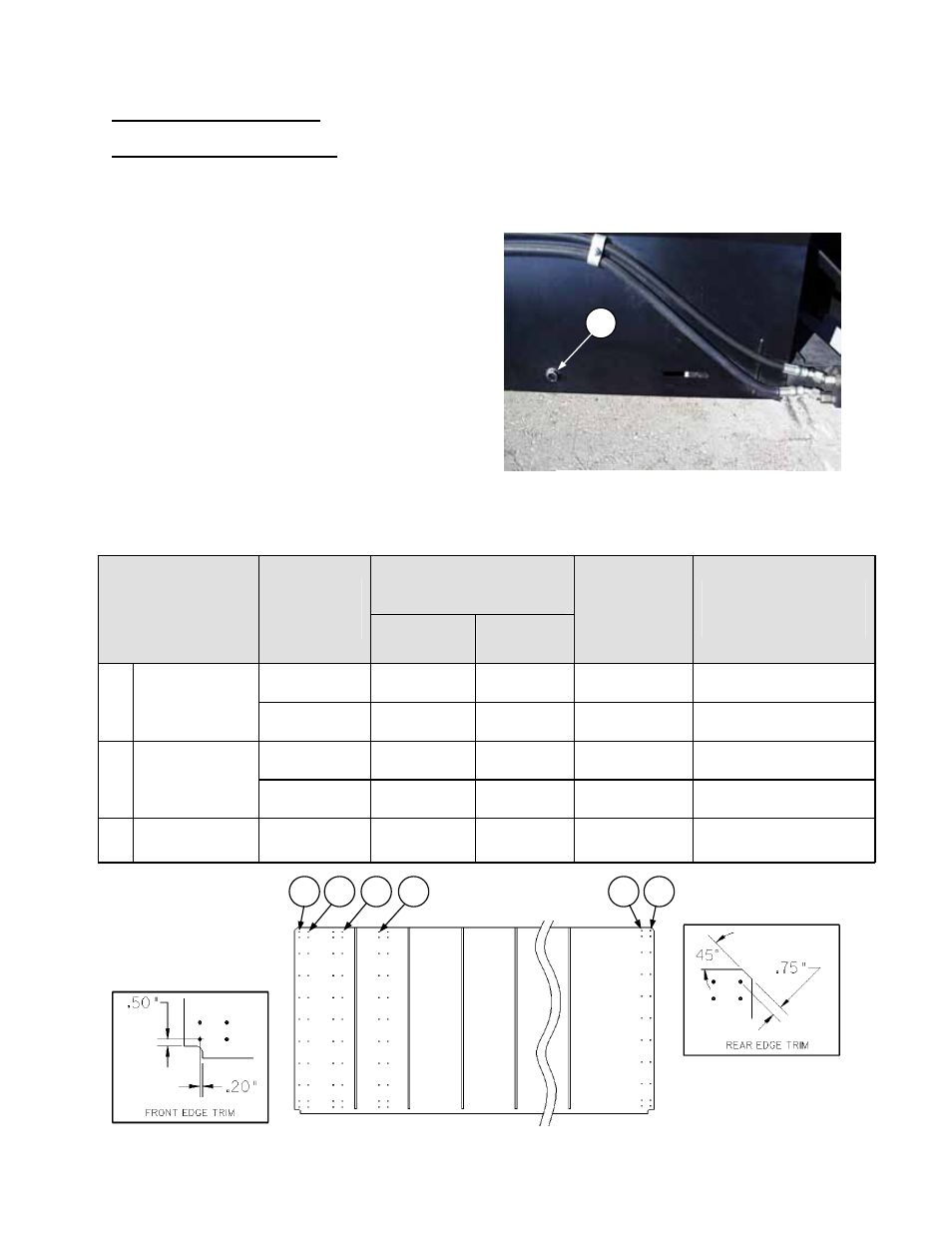

RELEASE DRAPER TENSION
D
OPERATION
DELIVERY OPENING WIDTH
Adjust delivery opening width:
Decks can be slid inwards to adjust opening size without cutting or extending the drapers
All headers are supplied with a long draper which may be cut to provide a wider opening. By cutting both
drapers, opening can be increased by 19” (480 mm). If reducing the opening size after it has been enlarged, a
short section of draper (available from your dealer) can be added to increase draper length.
NOTE: To avoid damage to draper and/or draper tension
mechanism, do not use drapers that are different in
length from those specified.
For adjusting opening size without cutting drapers,
go to step 8:
To cut or extend draper:
1. Release draper tension by turning bolt (D) counter-
clockwise until bolt begins to turn out of backsheet.
2. Remove screws from draper connector slat.
3. Use the following chart to determine which opening
size and row of holes are required for the desired
application.
NOTE: Recommended starting point is with decks shifted in, column (Y) for rows I and III.
For row II start at 45.4” (1155 mm) for specialty crops and 42.1” (1070 mm) or less for cereal crops.
CENTER DELIVERY
OPENING WIDTH
(between rollers)
HEADER AND
COMBINE MODELS
CONNECTION
(both drapers)
With decks
shifted out
(W)
With decks
shifted in (Y)
LEG TO
IDLER ROLLER
EDGE (DIM. X)
(decks in)
ENDPANEL DEFLECTORS
(Shown on next page)
Row D to Row F
63.7”
(1620 mm)
53.5”
(1360 mm)
11”
(280 mm)
Standard (G)
I
John Deere, New
Holland CX, Lexion
(Wide Decks)
Row B to Row E
49.8”
(1265 mm)
45.9”
(1165 mm)
16.8”
(427 mm)
Narrow (H)
Row B to Row E
49.8”
(1265 mm)
39.6”
(1005 mm)
20”
(507 mm)
Standard (G)
II
Case 77, 80 & 88
Case AFX, New
Holland CR
970/980, Lexion
(Mid Size Decks)
Row A to Row F
45.9”
(1165 mm)
42”
(1065 mm)
18.8”
(477 mm)
Narrow (H)
III
Case 60 & 66,
Agco, New Holland
CR 920/940/960
Row A to Row F
45.9”
(1165 mm)
35.6”
(905 mm)
20”
(508 mm)
Standard (G)
A C D E F B
