Paxton 2A/12V DC boxed power supply with Net2 ACU - Manual (Page 2)

1. Screws and wall plugs are provided in a fitting kit.
With reference to the diagrams, determine where
the top, central mounting position is required and
drill a hole suitable for a No 8 wall plug.
2. Tap in one of the wall plugs.
3. Put in one of the long screws, leaving a suitable
gap to the wall surface and slide the cabinet over it.
4. Mark the hole positions for the lower 2 screws.
5. Remove the cabinet and drill the additional holes.
6. Tap in the 2 wall plugs and hang the cabinet back
onto the top screw.
7. Secure the cabinet with the 2 lower screws.
8. Tighten the top screw.
Fitting
A detachable figure 8 power cable is provided
with the unit. This is pre-stripped at one end for
connection to a fused spur.
Anchor points are supplied inside the case to
secure the incoming mains cable. (cable tidy/ties
are provided) There are also 'knock-outs' in the
case to allow convenient access for the cable.
Ensure that the supplied compression gland is
used when passing the mains cable through any
holes in the cabinet.
AC Mains Connection
The power supply is double insulated and
requires no additional earth connection.
The PSU's battery function will not work
until this unit has first been connected to the
mains supply. It is the loss of this supply that
switches the unit to battery power.
A Net2 nano ACU or a Hands free interface cannot be installed in the Metal cabinet as this
would block the RF signal used for the Net2Air wireless technology.
This product is not suitable for retail sale.
All warranties are invalid if this product is
not installed by a competent person.

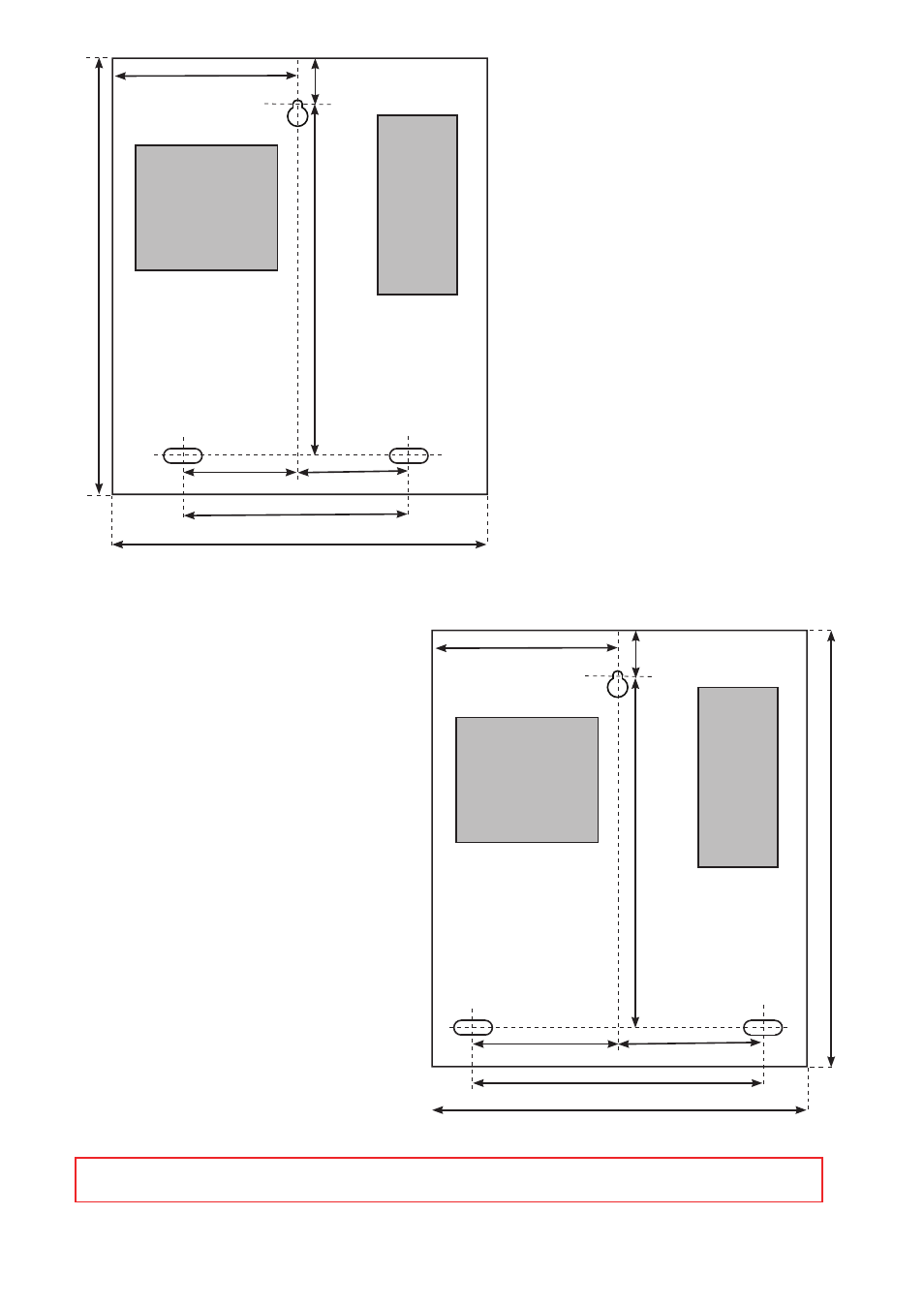

Metal Cabinet
232 mm
68 mm
116 mm
25 mm
320 mm
268 mm
68 mm
136 mm
236 mm
Plastic Cabinet
196 mm
118 mm
18 mm
320 mm
284 mm
98 mm 98 mm
