1. Power down the unit.
2. Press and hold the exit button.
3. Power up the unit. It will give several quick beeps.
4. Wait for a further beep and then release and press
the exit button twice more.
5. The reader will beep 3 times to confirm the reset.
OR
1. Present Enrolment card.
2. Present Door open time card twice.
3. Present Enrolment card.
4. Present Door open time card twice.
5. WAIT FOR 5 SECONDS!
Issuing tokens

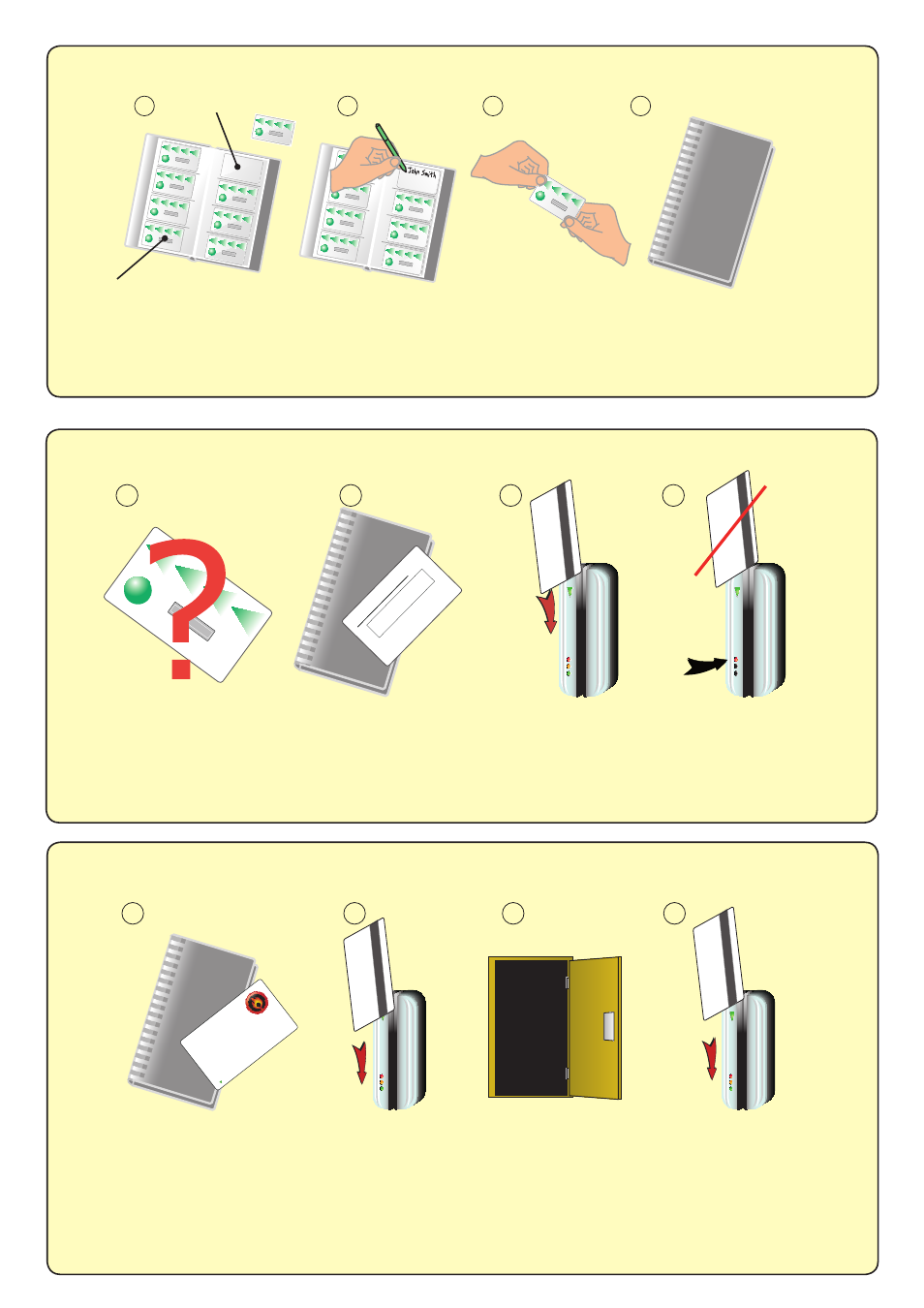

1. On each page there are 4 'pairs' of cards - a 'User card' and a corresponding 'Shadow card' behind it.
2. Write the name of the user on the shadow card.
3. Issue the 'User card' to the user.
4. Keep the card pack containing the shadow cards in a safe place.
Fail open release card - Compact systems are fail closed as default
THIS CARD CAN ONLY BE USED WITH A FAIL OPEN LOCK.
1. Take the fail open release function card from the starter pack.
2. Present/swipe the card through the reader. The reader will beep for about a second.
3. The reader is now set to fail open mode. This allows safe operation of the door in case of fire: The lock will
release when the power is cut.
4. To revert to fail closed mode, swipe the card again and the reader will beep once.
Bar a user
1. When a card is lost or stolen it is important to bar the card from your system to avoid unauthorized access.
2. To bar a card or token take it's corresponding shadow card from the card pack.
3. Present the shadow card to the reader. This will remove the lost card or token from your system.
4. A barred card can re-validated by presenting the enrolment card followed by the user card to the reader.
1 2 3 4
User Card CARDLOCK
User Card CARDLOCK
User Card CARDLOCK
User Card CARDLOCK
User
Card
CARD
LOCK
User Card CARDLOCK
User Card CARDLOCK
User Card CARDLOCK
User Card CARDLOCK
User Card CARDLOCK
User Card CARDLOCK
User Card CARDLOCK
User Card CARDLOCK
User Card CARDLOCK
User Card CARDLOCK
User Card CARDLOCK
User
Card
CARD
LOCK
1 2 3 4
Swipe this card to bar:
W rite name:
John Smith
John
Sm
ith
BEEP!
BEEP!
1 2 3 4
This ca
rd is used
with systems where a f
ail open
electric release is used for the sa
fe operation in
the
event
of a fire. Present the ca
rd to the reader
to
drive a
fail open
release
or a
maglock.
Present
the
card again
to revert to
the f
ail closed
operation
