Paxton ASEC Compact Keypad - Manual (Page 6)

Push to make
door release
Schematic shows
a 12V d.c. release.
The current rating
must be less than 1A
The diode current
rating must be equal
to or greater than
the current in the
release.
1 2 3
4 5 6
7 8 9
* 0 #
+12Vd.c.
0V
12-15V d.c.
(Fuse rating 1A)
+
-
+12Vd.c.
Time clock keeps door
open during working hours
1 2 3
4 5 6
7 8 9
* 0 #
12V d.c.
electric release:
current must be
less than 1A
Diode current
must be equal to
or greater than
the release
current
12-15V d.c.
(Fuse rating 1A)
0V
+
-
12-15V d.c.
(Fuse rating 1A)
+12Vd.c.
0V
1 2 3
4 5 6
7 8 9
* 0 #
12V d.c.
electric release:
current must be
less than 1A
Diode current
must be equal to
or greater than
the release
current

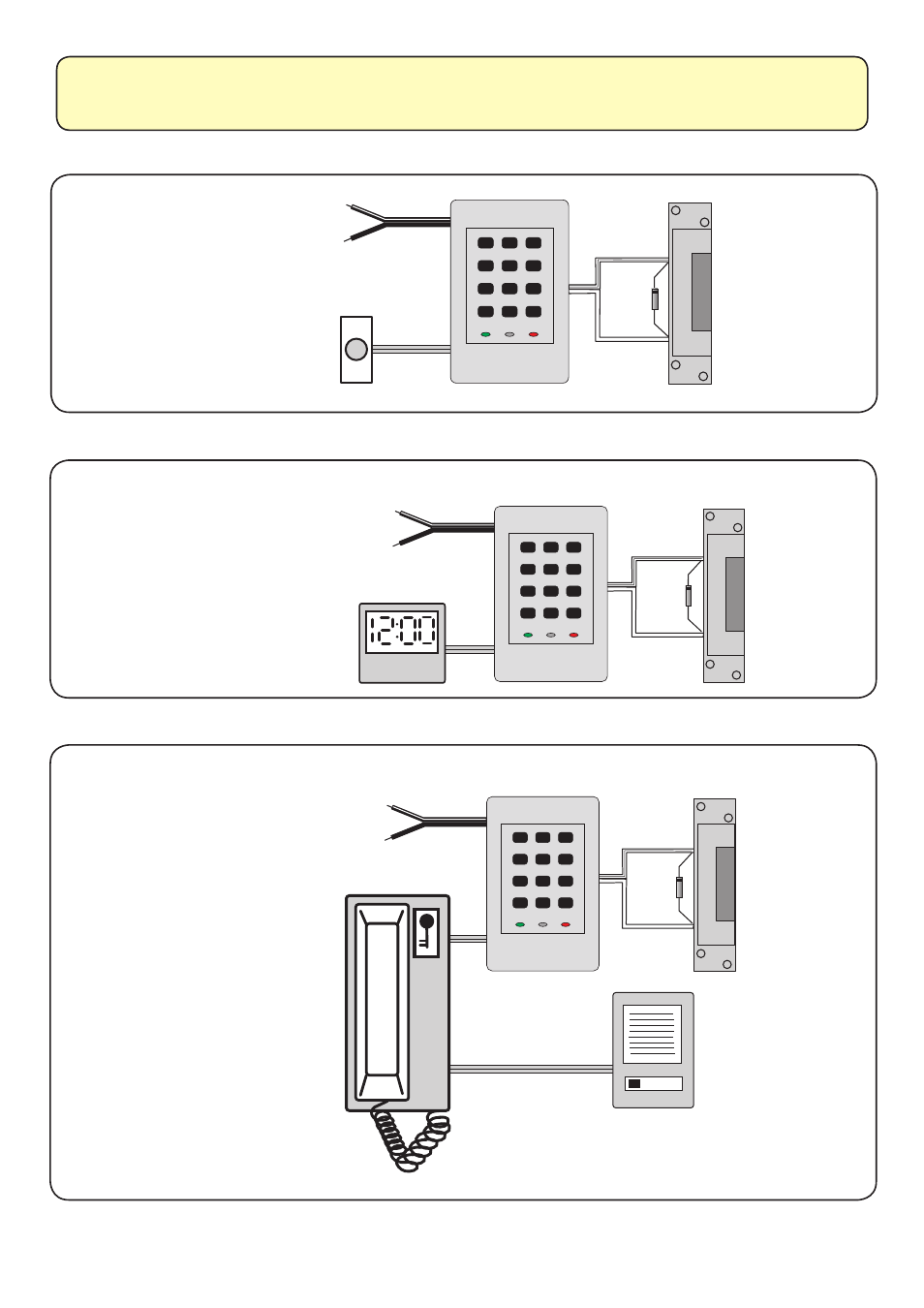

Entryphone will release
door on demand
+
-
- Using an exit button.
This is used to exit through
the door. A standard
‘bell push’ button, fitted on
the safe side of the door
can be used to operate the
electric release.
- Providing timed access.
This may be required, for
example, where a main
entrance door is required
to be unlocked during office
hours. A standard central
heating time switch with
voltage free contacts can be
used. When the contacts are
closed the door release will
remain open.
- Entryphone access.
May be required, for
example, at a main
entrance door, so that staff
can gain access by using
a code whilst visitors are
verified before entry is
granted. The voltage free
contacts on the entryphone
are connected to the
grey wires of the keypad.
PAGE 6
Applications
