Wire outputs, Wiring, Full system reset – Paxton TOUCHLOCK K series stainless steel compact keypad User Manual
Page 2: K75 screw connector option

Bell
Exit button
(push to make)
Electric release
12V DC power
supply

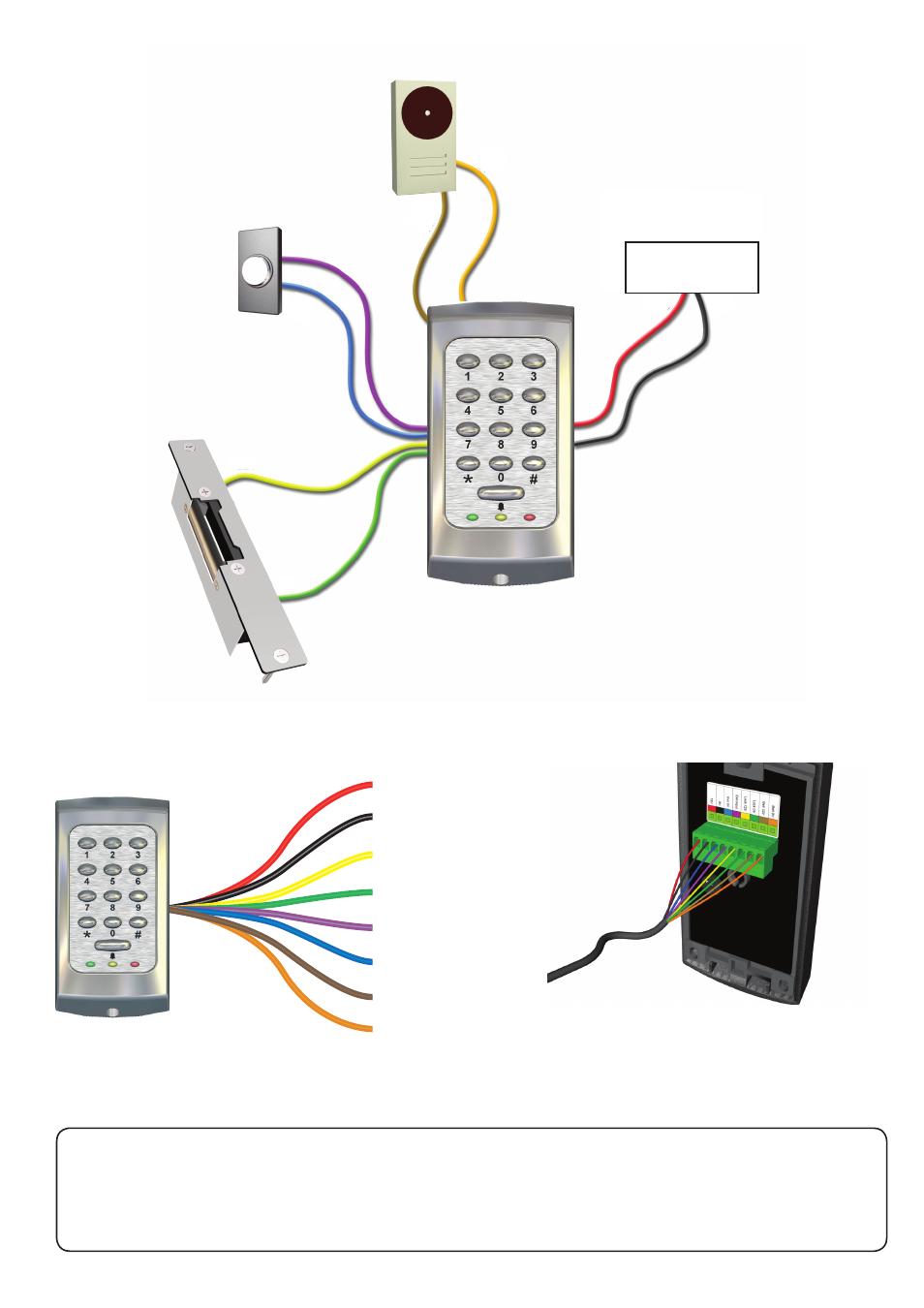

Wire outputs
+12V DC
0V
Lock 12V
Lock 0V
Exit input
Exit 0V
12V DC release current rating must be less than 1A.
Wiring
1. Power down the system.
2. Power the system up whilst pressing and holding 3.
3. The LED's will flash and the unit will beep 3 times a second.
4. Go to the programming guide. - Initialising a new system.
Full System Reset
Bell 12V
Bell 0V
K75 Screw connector option
The unit should be mounted in conjunction with
an electrical backbox to achieve the required
clearance for the connector.
If an adaptor plate (310-750) is fitted, the
mountings on the backbox can also be used.
If the +12V bell wire (Brown) is not connected
it must be terminated to avoid a short circuit.
Exit
0V
0V
+12V
+12V
0V
0V
+12V
