Paxton Net2Air Ethernet bridge - Manual

Page 1
3m 15m 20m 30m 0
Ins-30085 Net2Air Ethernet bridge
18/04/2013
Technical Support
Technical help is available: Monday - Friday from 07:00 - 19:00 (GMT)
Saturday from 09:00 - 13:00 (GMT)
01273 811011 [email protected]
Software - Requires Net2 v4.14 or later.
Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/
The access control unit connects to the Net2 system using Paxton Net2Air proprietary wireless technology through
a Net2Air bridge.
Radio signals do not always behave as you might expect. For example, a mobile phone that displays a full signal
on one part of the site will lose signal completely only a few metres away.
See also: X AN1095 - Net2 wireless access control - How does it work? < http://paxton.info/974 >
X AN1096 - How to plan a Net2 wireless installation < http://paxton.info/975 >

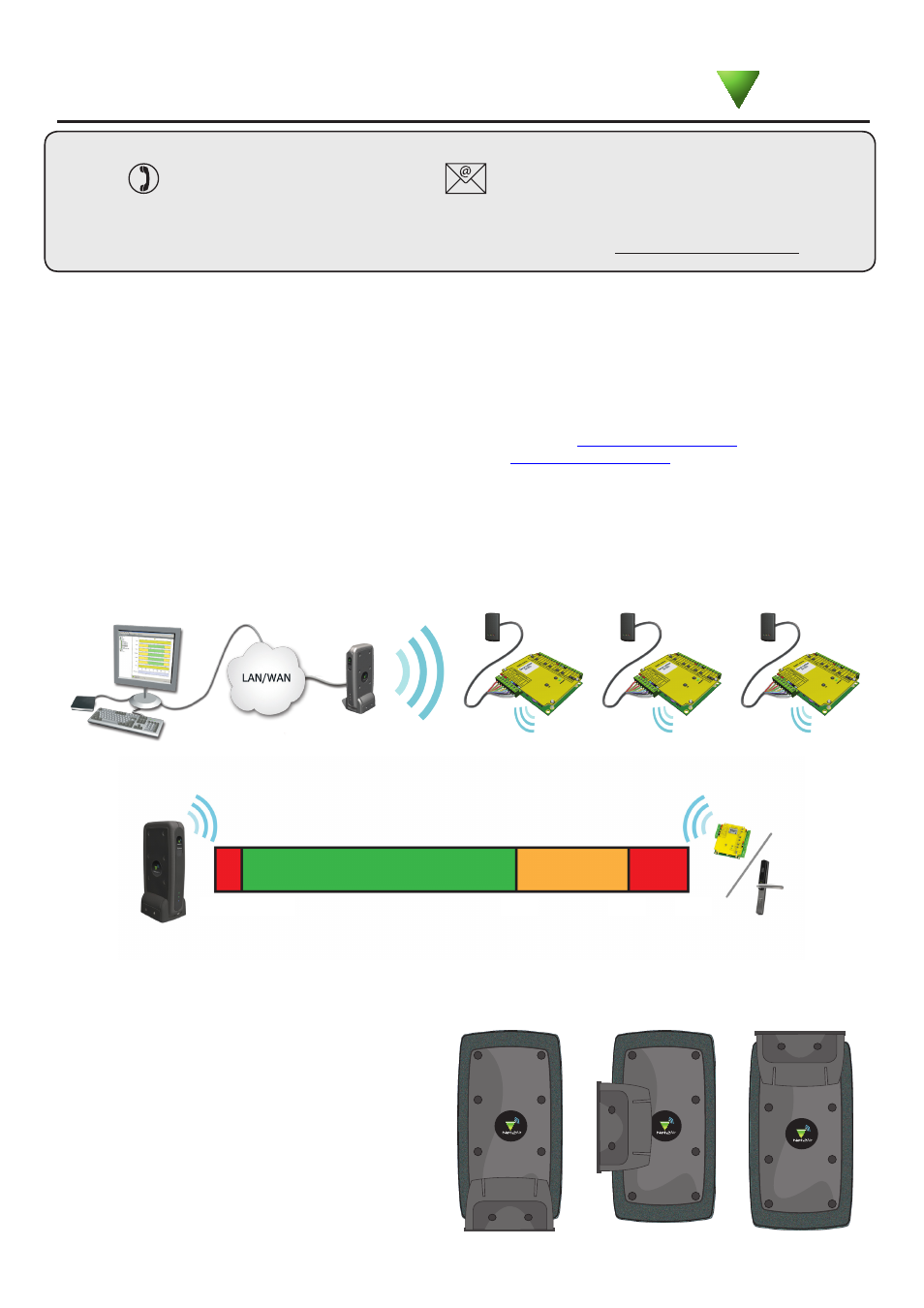

Net2Air wireless communication
Reader
Control unit
Net2Air Ethernet bridge
Net2 Server
Paxton
Radio frequency
This product should not be installed within 3 metres of other wireless equipment operating on a 2.4Ghz frequency.
To ensure optimum performance other wireless networks should avoid WiFi channels 11, 12 and 13 to reduce the
possibility of interference.
Enclosure
The unit should be mounted vertically in the
supplied base to achieve the optimum range.
Power over Ethernet.
This unit can be powered over the ethernet
link with POE compatible hardware.
Range
With reference to the diagram, the unit should be located at a distance as shown within the Green area.
Performance may be reduced with an increase in distance as shown by the Amber area.
The unit should not be used at distances shown by the Red areas.
