51203 pg 8 0612 Rev. A
When operating the vehicle without the Quarter Windows, the Rear Window should be rolled up and
secured with the elastic garters for proper ventilation.
Step Twenty-seven
T
O
F
OLD THE
T
OP
D
OWN
C
OLLAPSE
T
OP

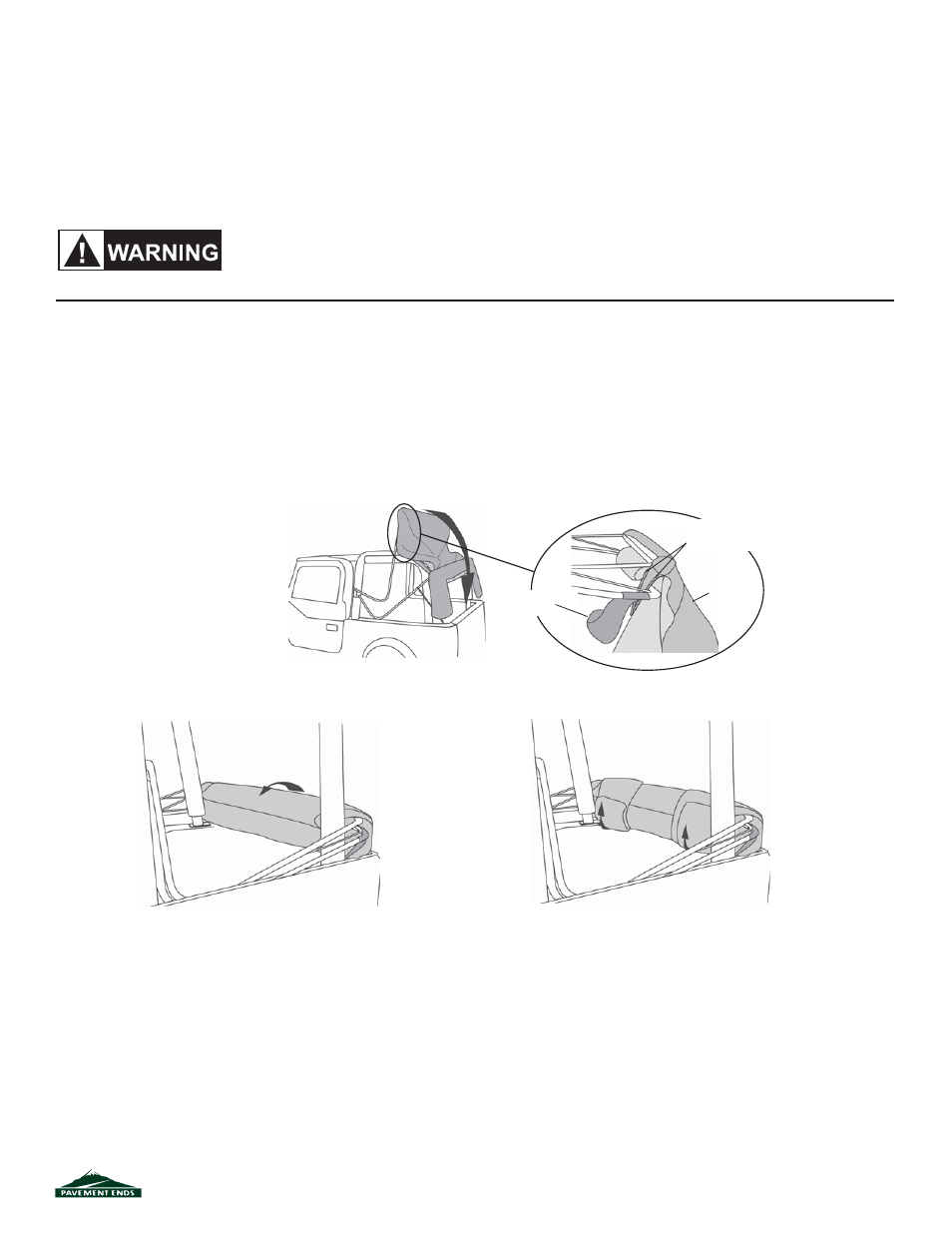

Release the front of the top from the windshield. Raise the front of the deck
and collapse the rear bows, tucking the two plastic strips above the door
openings and the stay pad on the rear bow inside of the bows, Wrap the
fabric around the bows, then tuck the rear legs of the top under the bows.
Wrap rear legs
under bows
Top Fabric
Tuck plastic strips
inside bows
Tuck stay pad
inside bows
Collapse bows and
fold toward rear
Wrap fabric
around bows
Step Twenty-six
T
O
F
OLD THE
T
OP
D
OWN
R
EMOVE
Q
UARTER
P
ANELS AND
R
EAR
W
INDOW
Remove the Quarter Panels and the Rear Window. To remove the Quarter Windows, unzip the rear and top zippers. Release
the plastic strip from the retainer. Release the Hook and Loop Fasteners from around the Vertical Retainer.
To roll up the Rear Window, remove the Tailgate Bar and open the zippers on each side of the window to the top. Start at the
bottom and roll the window to the inside. Avoid wrinkles in the fabric and window. Secure it in place with the elastic garters
inside of the top.
