Pavement Ends 51203 Replay - Manual (Page 2)

51203 pg 2 0612 Rev. A
Tools Needed
Safety Glasses
Phillips Screwdriver
Masking Tape
Pliers
T-15 Torx Wrench
Parts List
Fabric Top Qty - 1
Quarter Window, Right Qty - 1
Quarter Window, Left Qty - 1
Rear Window Qty - 1
Elastic Garter Qty - 2
Header Foam, Driver's Side Qty - 1
Header Foam, Passenger Side Qty - 1
Fabric Foam Qty - 2
Step One
R
EMOVE
Q
UARTER
W
INDOWS AND
R
EAR
W
INDOW
Remove the Quarter Windows and the Rear
Window. Remove the metal Tailgate Bar from the
bottom of the Rear Window and set it aside.
Step Two
R
ELEASE
W
INDSHIELD
L
ATCHES

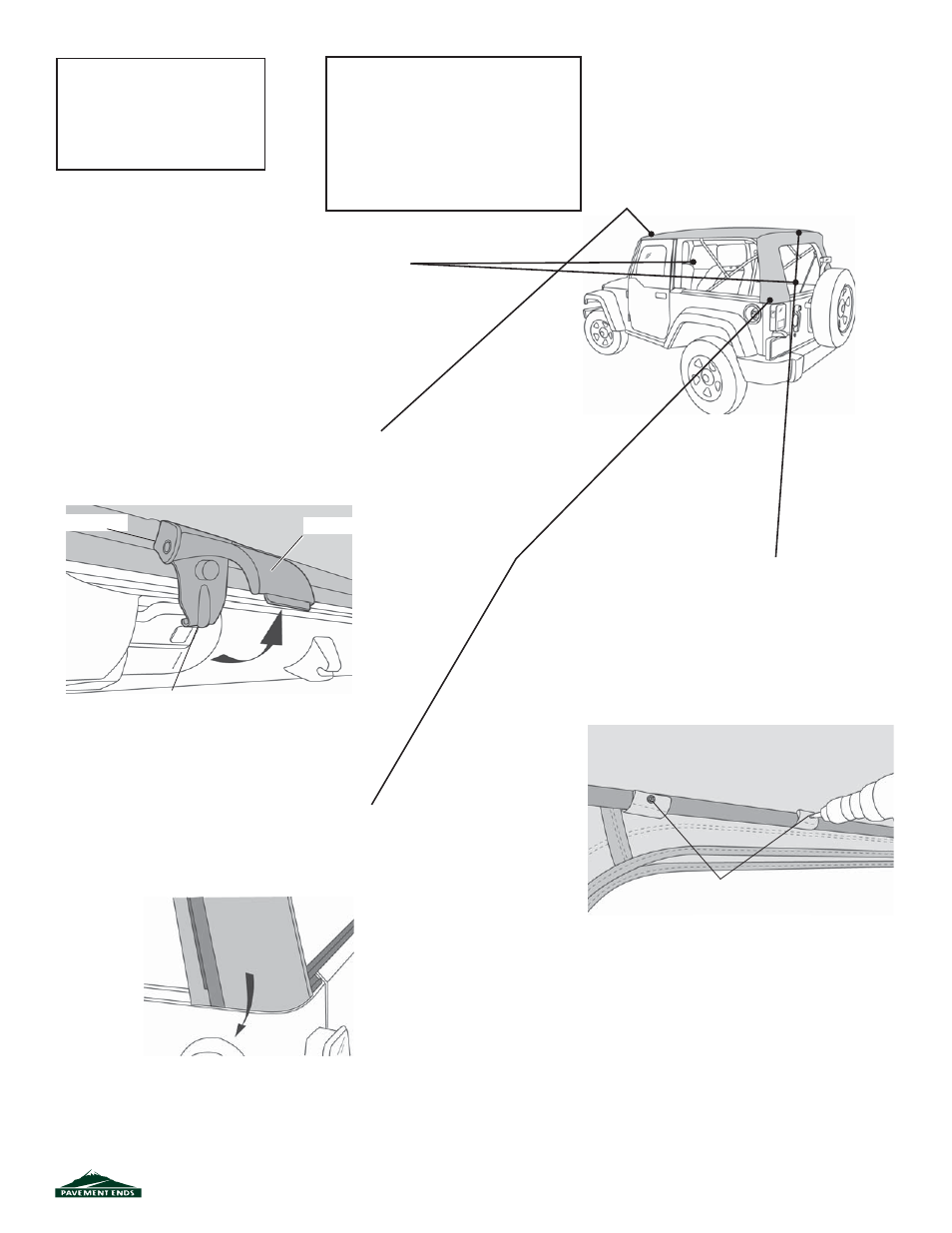

Release the latch that secures the header to the
windshield. Pull up on the lever and then down
and out to release the hook from the loop in the
windshield frame.
Step Three
R
ELEASE
R
EAR
C
ORNERS
Release the rear corners of the top. Pull gently
down and then out to release the plastic strip
from the retainer on the vehicle.
Pull down and then out
to release the fabric from
the retainer
Step Four
R
ELEASE
R
EAR
B
OW
Use a phillips screwdriver to remove the four (4)
screws that attach the fl ap in the top to the rear
bow. Set the screws aside to be reused later.
Allow the bow to drop onto the tailgate.
Windshield
Frame
Windshield
Header Latch
Pull lever up
Release hook
from loop
Unscrew the fabric
from the Rear Bow
View from inside vehicle
Rear Window
Opening
