Pavement Ends 51203 Replay - Manual (Page 4)

51203 pg 4 0612 Rev. A

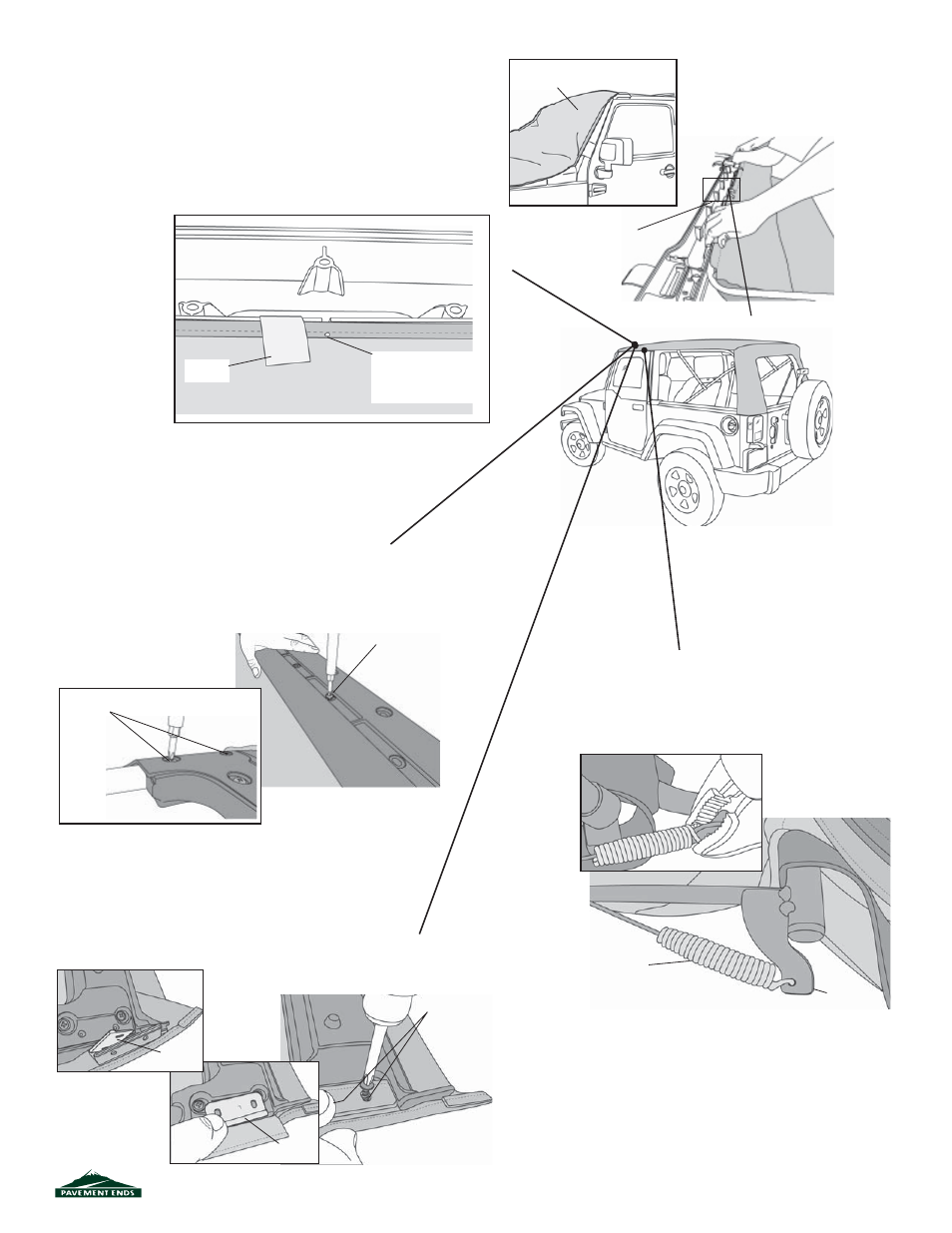

Step Nine
I
NSTALL
T
OP
F
ABRIC
Close the upper header over the fabric, sandwich-
ing the fabric. Reinstall the four (4) corner screws.
Then install the twenty-three (23) screws across the
header.
Lower the bow assembly to the rear of the vehicle.
Step Ten
I
NSTALL
C
ORNER
S
CREWS
Slip the fabric pocket sewn into the top between the
headers and position the cable anchor.
Install two (2) T-15 Torx Screws through the fabric and
metal fl ag into the Lower Header on each side.
Step Eleven
S
ECURE
C
ABLE
S
PRING
Hook the Cable Spring to the bracket on the bow
and use pliers to crimp the spring.
Step Eight
I
NSTALL
T
OP
F
ABRIC
Raise the bow assembly and lock the header to the windshield.
Drape the top fabric, backing side up, over the hood and wind-
shield. Slide the extrusion along the front edge of the top into
the channel in the lower header. Line up the center drill hole in
the fabric with the center notch in the header. Use masking tape
to help hold the fabric in place along the lower header.
Install Screws
Across Header
Top Fabric - Backing
Side Up
Slide Extrusion along
the Front Edge of the
Channel
Line up the Center Drill
Hole in the Fabric with
the Center Notch in the
Header
Masking
Tape
Reinstall Torx
Screws
Cable
Anchor
Reinstall Corner
Screws
Cable
Anchor
Bracket
Cable Spring
