51131 pg 3 Rev. C 0204

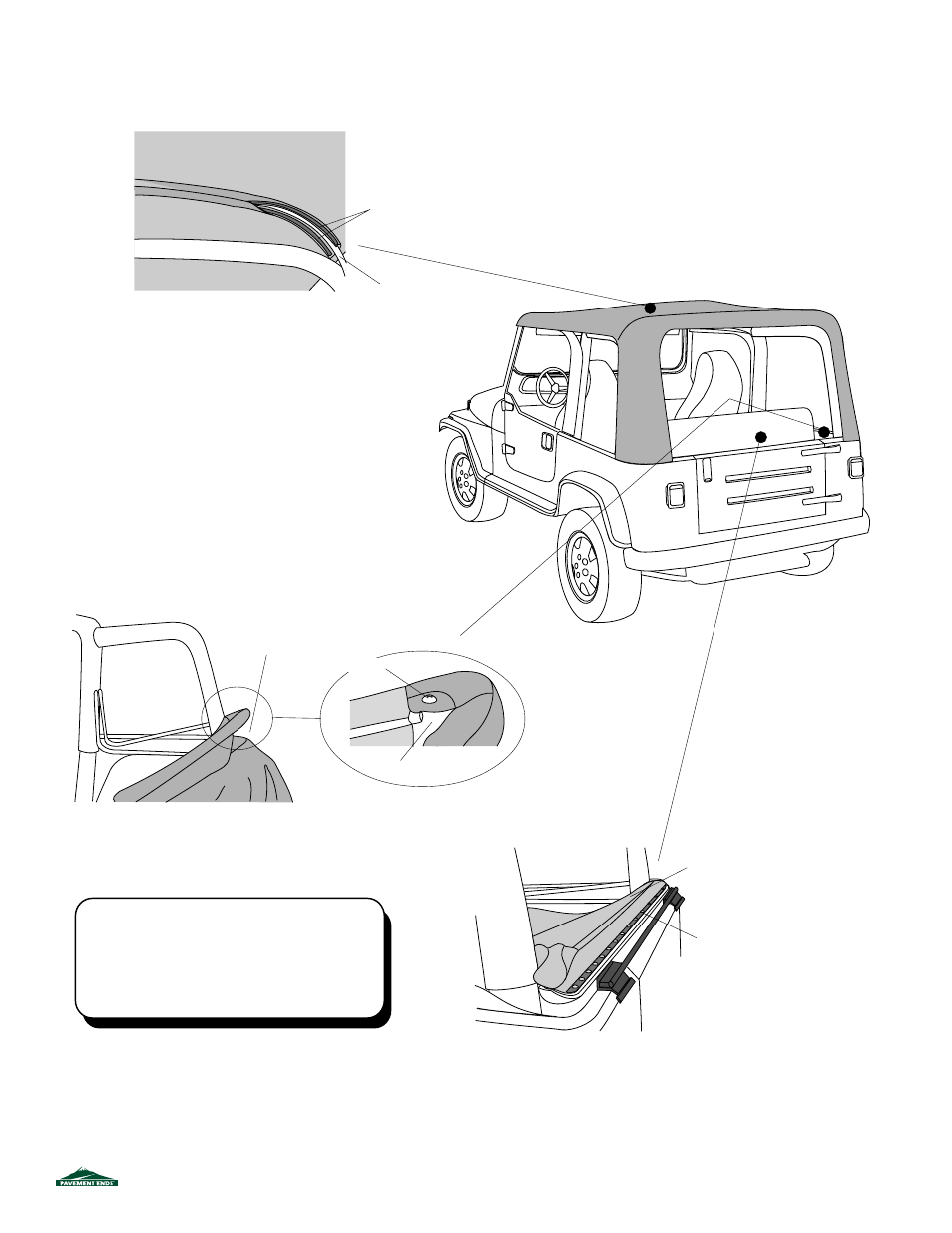

Step Five
Unfasten the flap around the middle bow.
Unfasten hook and
loop to unwrap flap
View from inside vehicle
Sport Bar
Middle Bow
Step Six
Collapse the bow assembly down onto the tailgate.
With the bow assembly laying on the tailgate, remove the
screws that fasten the fabric to the corners of the header.
Set the screws aside for use in installing the new top
fabric.
Detail of Header
Remove Screw
Header
Collapse bows and fabric
onto tailgate
Remove the 8 or 14 screws
that secure the fabric
to the header.
Flip the fabric into the
rear of the vehicle
Step Seven
Flip the top fabric back over into the rear of the vehicle (so that the
fabric lays backing side up) to expose the plastic strip along the edge
of the fabric. Remove the eight or fourteen screws that secure the fabric
to the header, setting the screws aside for use in installing the new top.
Then remove the old top fabric from the vehicle.
Manufacturing Note: Due to a recent header assembly
modification by Daimler Chrysler, the plastic strip on the
windshield header may have 8 screw locations instead
of 14. Both attachment numbers of screws will securely
fasten the header and perform as the original design was
intended.
