Pavement Ends 44587 Flip Top - Manual (Page 9)

44587 pg 9 Rev. H 1210

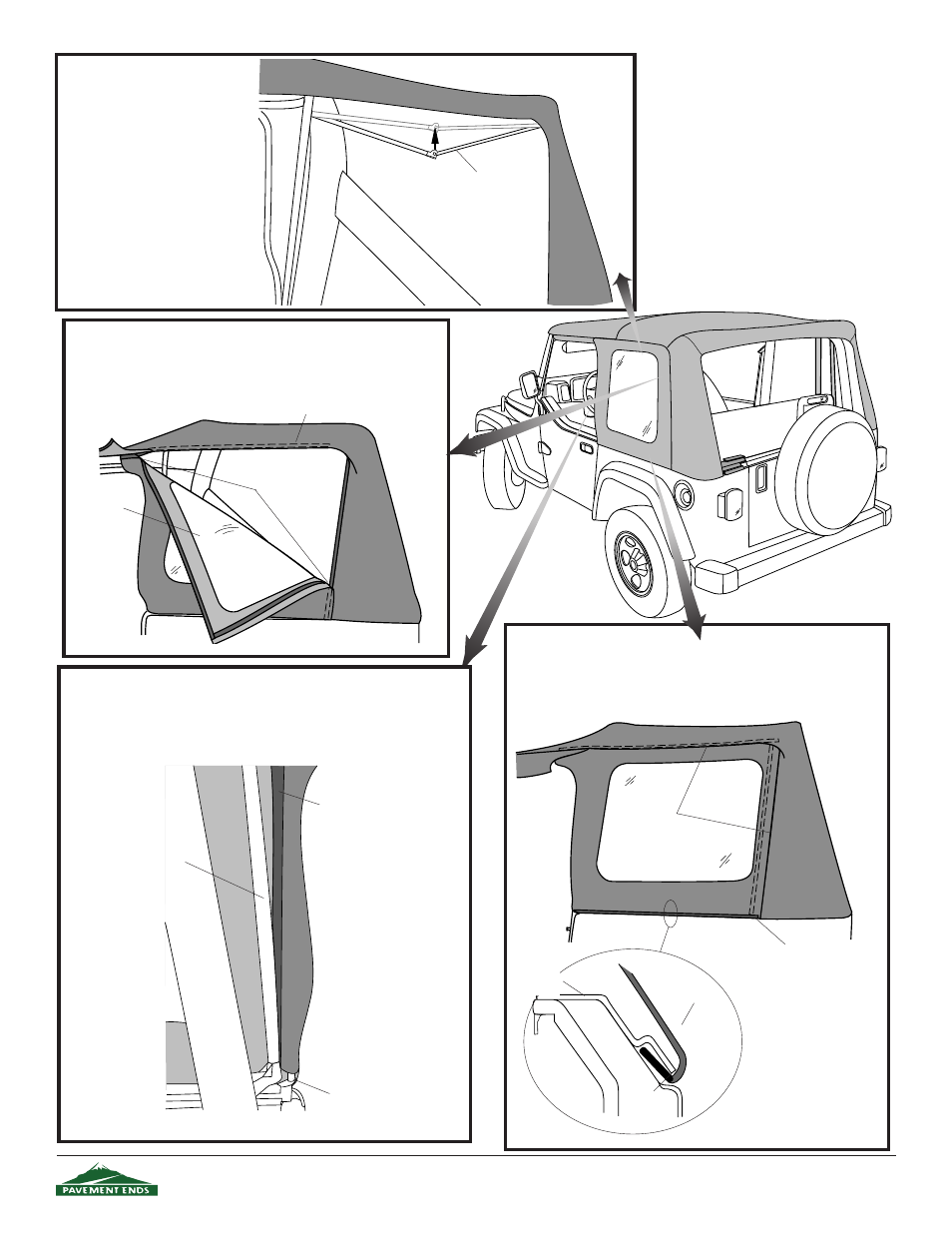

Step Fourteen
P
OSITION
S
PREADER
B
ARS
Push in the two snap buttons
on the spreader bar and
raise the bar into position.
Release the snap buttons to
lock the bar in place.
Spreader
Bar
Step Fifteen
I NSTALL S IDE C URTAINS
Start the top and rear zippers on the Side Curtains 2-3
inches.
Start top and
rear zippers
Side
Curtain
Zipper under fl ap
Step Seventeen
I NSTALL S IDE C URTAINS
Slip the plastic strip on the bottom of the Side Curtain into
the Side Belt Rail. Close the top and rear zippers on the
side curtain.
Side Belt
Rail
Fabric
Plastic
Strip
Start at one end
of the strip and
work along it to
the other end.
Close Zippers
View from inside vehicle - Driver's Side
Front Bow
Hook and Loop Fastener
Sport
Bar
Vertical
Retainer
Front
Step Sixteen
I NSTALL S IDE C URTAINS
Wrap fabric fl ap on the front of the side curtain around the Verti-
cal Rod (not the front bow) and fasten the hook and loop strips
to each other.
