Front
5/16" TORX Bolt
Sport Bar
Side Belt
Rail
Step Two
I
NSTALL
B
ELT
R
AILS

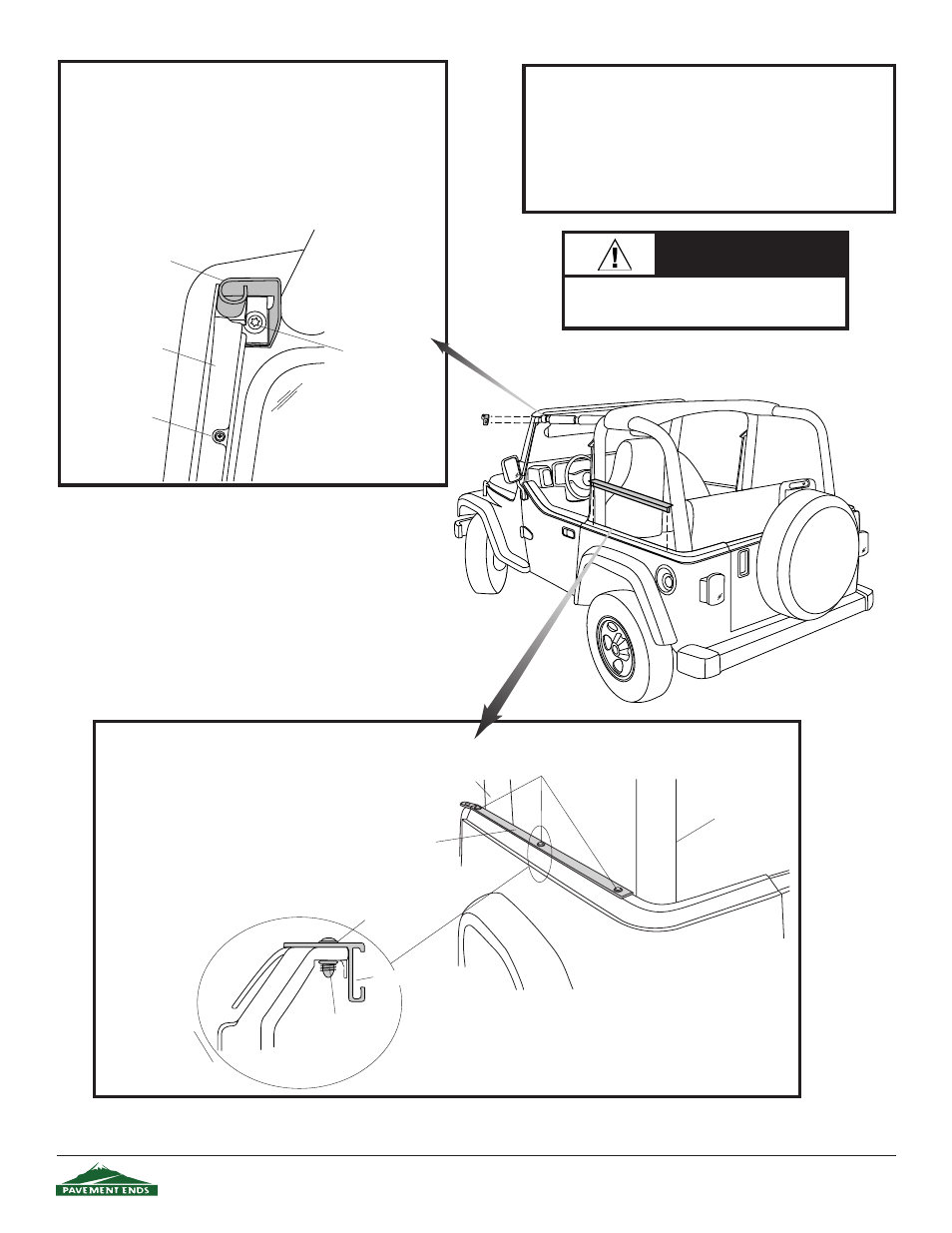

Install the Left and Right Side Belt Rails
on each side of the vehicle. Use the
existing holes, three 5/16"-18 x 1 TORX
Bolts and three 5/16"-18 Tapping Plates
on each side. Use a #35 TORX Socket to
install the TORX Bolts.
5/16" TORX
Bolt
Tapping Plate
Side Belt Rail
Body Panel
Inside of Vehicle
Side Belt Rail Detail
Cross Section
Sport Bar
Step One
I
NSTALL
W
INDSHIELD
B
RACKETS
Loosen the Top Molding Screw on the A Pillar Molding at-
tached to each side of the windshield. With a #40 Torx Driv-
er, remove the outboard bolt that attaches the Sport Bar to
the Windshield. Slide the Windshield Bracket behind the A
Pillar Molding and fasten the bracket to the Windshield with
the bolt you removed. Re-tighten the top Molding screw.
Tools Needed
1/8" Drill Bit Flat Screwdriver
and Drill Motor Phillips Screwdriver
Center Punch Hammer
#35 Torx Pencil
#40 Torx Adjustable Wrench
Ratchet Safety Glasses
Windshield
Bracket
#40 TORX
A Pillar Molding
Windshield
Top Molding
Screw
Sport Bar
Safety glasses should be worn at all
times while installing this product.
Caution
