44587 pg 10 Rev. H 1210
Windshield
Wrap Flap around
Horizontal Retainer Front

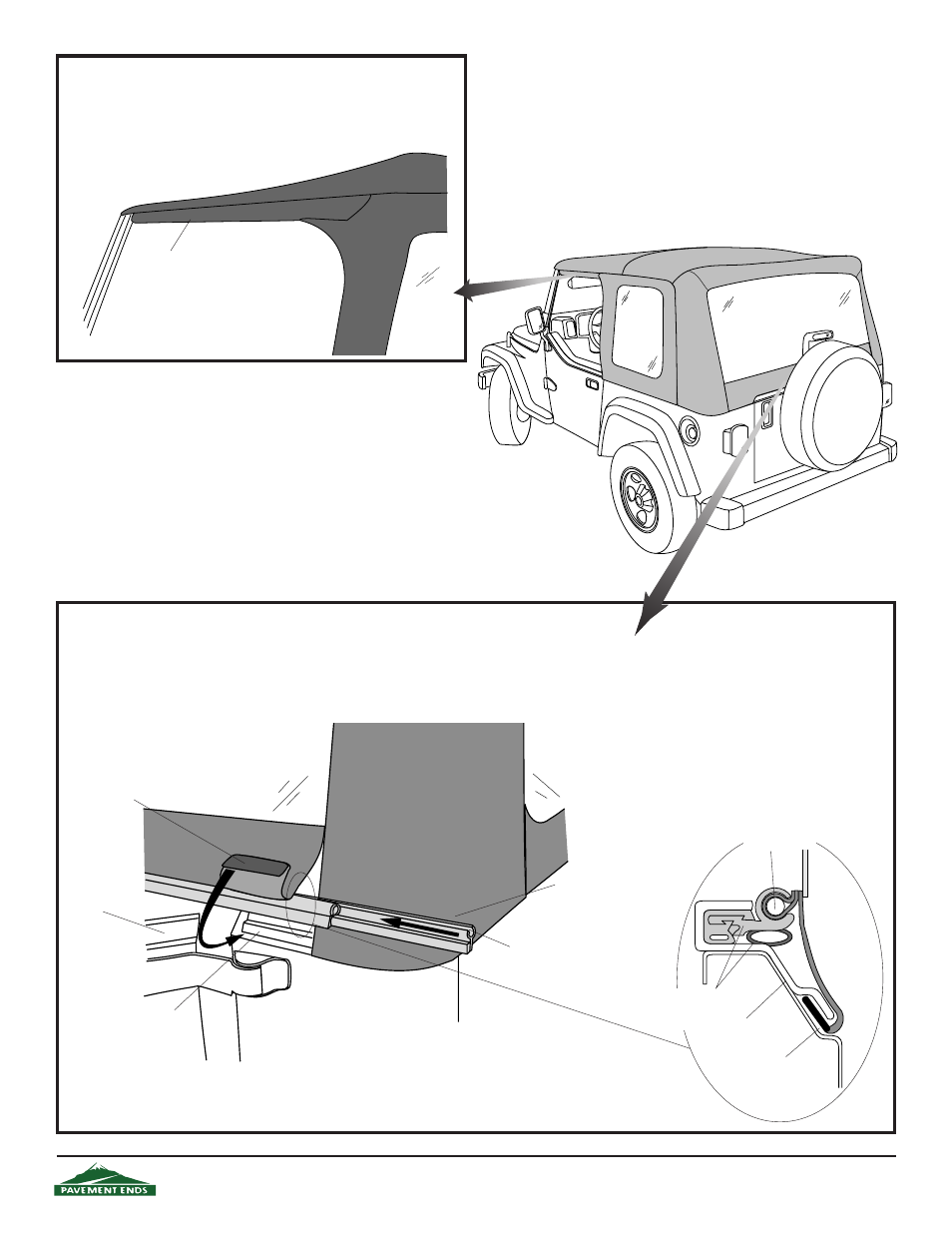

Step Nineteen
I NSTALL T AILGATE B AR
Open the tailgate. Orient the Rear Curtain Retainer with the rubber bulb facing down, in order to form a seal with the top of the
tailgate. Slide the groove in the Rear Curtain Retainer onto the tube inside the bottom of the Rear Curtain. Roll the Rear Curtain
Retainer into the top of the Corner Belt Rail. Slip the plastic on the bottom of the corners under the bottom of the Corner Belt Rail.
Close the rear curtain zippers.
Rear Curtain
Slip Plastic Strip under
Corner Retainer
Rear Corner
Retainer
Slide groove in Rear
Curtain Retainer onto
tube on inside of Rear
Curtain. Push it into
Tailgate Retainer.
Rear Curtain Retainer
Plastic
Strip
Rear Corner
Retainer
Rear Curtain Retainer -
Oriented with Rubber
Bulb Down
Tailgate
must be
open
Tube on inside of
Rear Curtain
Step Eighteen
S ECURE D OOR O PENING
Wrap the fl ap, sewn to the top above each door, around
the Horizontal Rod and fasten the hook and loop strips
to each other.
