Step thirteen, Step twelve – Pavement Ends 44587 Flip Top User Manual
Page 8

44587 pg 8
Rev. H 1210

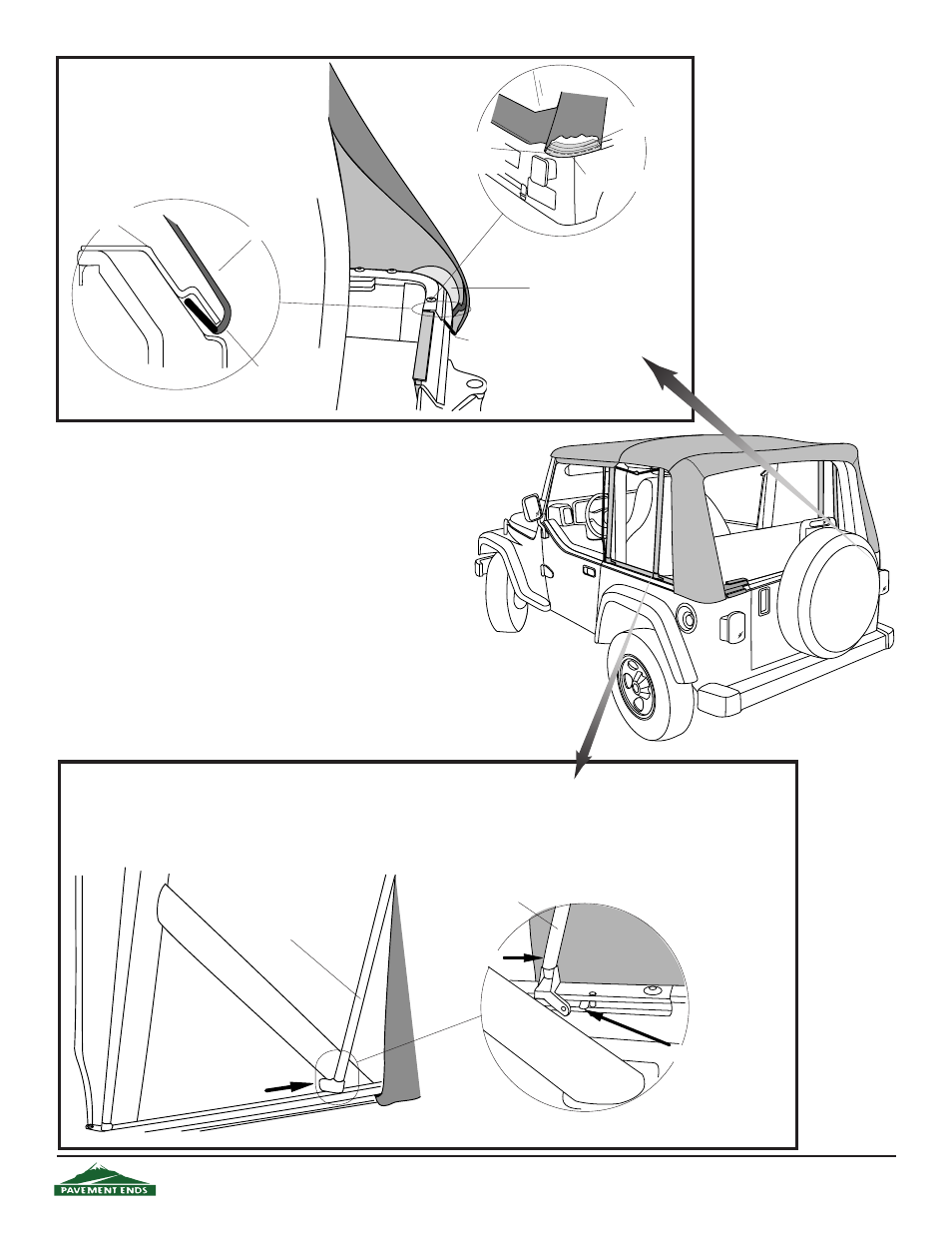

Rear Support
Bow
Rear Support Bow
Push bow back
View from inside vehicle
Step Thirteen
P
OSITION
R
EAR
S
UPPORT
B
OW
Pull the bottom of the rear support bow back until it snaps into the notch in the side rail. Make sure that the zippers
are not caught or folded behind rear support bow and that the bow slips into the notch in the Side Belt Rail.
Bow must slip into
notch in belt rail
Plastic Strip
Rear Corner
Retainer
Fabric
Step Twelve
S
ECURE
R
EAR
C
ORNERS
Insert the rear corners of the top into
the Rear Corner Retainers. Make sure
the front header is not latched.
Plastic Strip
under retainer
Plastic Reinforcement not
caught under retainer
Rear of Vehicle
Rear Corner
Retainer
Plastic Strip -
under retainer
Edge of Plastic
Strip must line
up with edge of
retainer
