Rev. H 1210 44527 pg 3
Front
5/16" Phillips Bolt
Sport Bar
Side Belt
Rail
Step Two
I
NSTALL
B
ELT
R
AILS

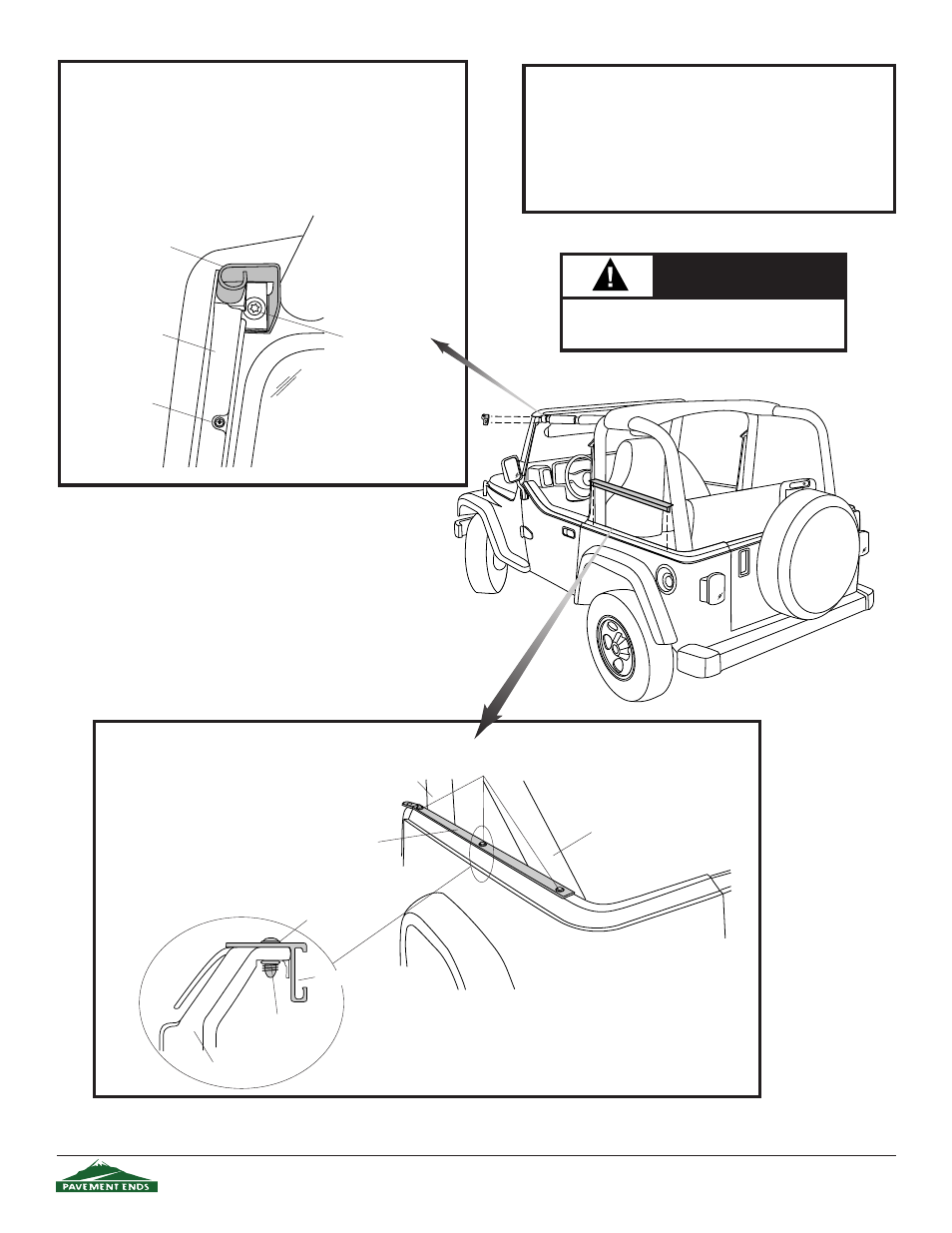

Install the Left and Right Side Belt
Rails on each side of the vehicle.
Use the existing holes, three 5/16"-
18 x 1 Phillips Bolts and three
5/16"-18 Tapping Plates on each
side.
5/16" Phil-
lips Bolt
Tapping Plate
Side Belt Rail
Body Panel
Inside of Vehicle
Side Belt Rail Detail
Cross Section
Sport Bar
Step One
I NSTALL W INDSHIELD B RACKETS
Loosen the top screw on the A Pillar Molding. Use a #40 TORX
Driver to remove the outboard bolt that attaches the Sport Bar
to the windshield. Slide the Windshield Bracket behind the A
Pillar Molding and reinstall the bolt you removed to secure the
bracket to the windshield. Re-tighten the top molding screw.
Tools Needed
1/8" Drill Bit Flat Screwdriver
and Drill Motor Phillips Screwdriver
Center Punch Hammer
#35 Torx Pencil
#40 Torx Adjustable Wrench
Ratchet Safety Glasses
Windshield
Bracket
#40 TORX
A Pillar Molding
Windshield
Top Molding
Screw
Sport Bar
Safety glasses should be worn at all
times while installing this product.
Caution
