DCA-600SSV — OPERATION AND PARTS MANUAL — REV. #0 (07/13/09) — PAGE 35
DCA-600SSV — SETUP

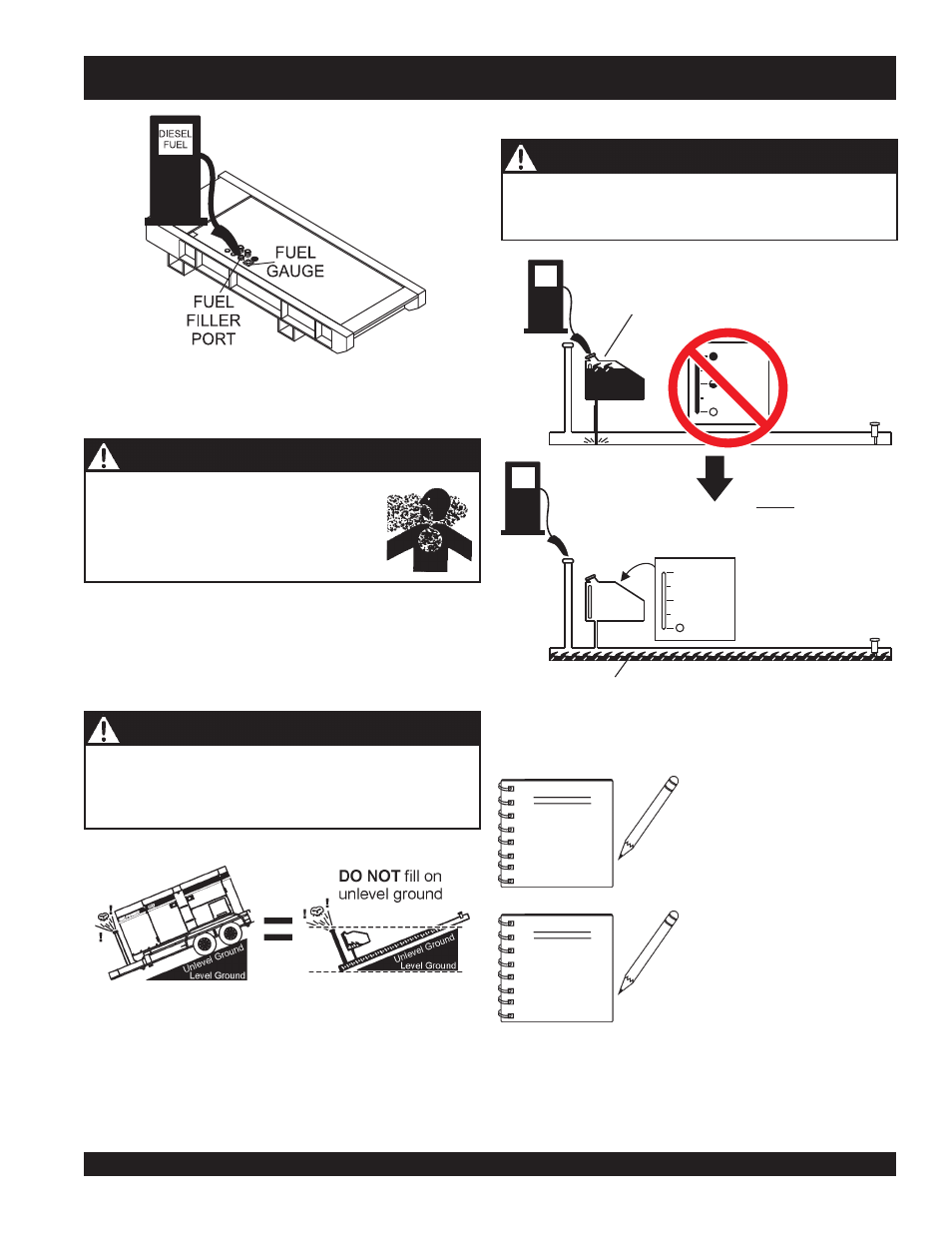

Refueling Procedure:
1. Level Tanks – make sure fuel cells are level with the
ground. Failure to do so will cause fuel to spill from the
tank before reaching full capacity. See Figure 32.
2. Trailer Fuel Tank First – The trailer fuel tank is the
primary fuel tank and holds a larger capacity of fuel.
The fuel in the trailer will be filtered and sent to the
engine.
ALWAYS fill trailer fuel tank (Figure 33) first.
Figure 33. Fuel Tank Filling Order
Figure 32. Only Fill on Level Ground
ONLY! use #2 diesel fuel when
refueling.
ALWAYS! fill trailer tank first with #2 diesel fuel, before
filling secondary internal tank.
NOTE
NOTE
Fuel from the secondary inner
tank will eventually drain into the
primary trailer tank.
Figure 31. Skid Type Fuel Tank System
Diesel fuel and its vapors are dangerous
to your health and the surrounding
environment. Avoid skin contact and/or
inhaling fumes.
WARNING - RESPIRATORY HAZARDS
ALWAYS place trailer on firm level ground before refueling
to prevent spilling and maximize the amount of fuel that
can be pumped into the tank.
CAUTION - REFUELING THE GENERATOR
CAUTION - TRAILER FUEL TANK
Full
Empty
3/4
1/4
1/2
Full
Empty
3/4
1/4
1/2
ALWAYS! FILL THE
TRAILER FUEL TANK
, BEFORE FILLING
INTERNAL FUEL TANK
FIRST
CORRECT
INCORRECT
INTERNAL
FUEL TANK
SIGHT GAUGE
DIESEL
FUEL
DIESEL
FUEL
INTERNAL
SECONDARY
TANK
TRAILER
TANK
