DCA-600SSV — OUTPUT TERMINAL FAMILIARIZATION

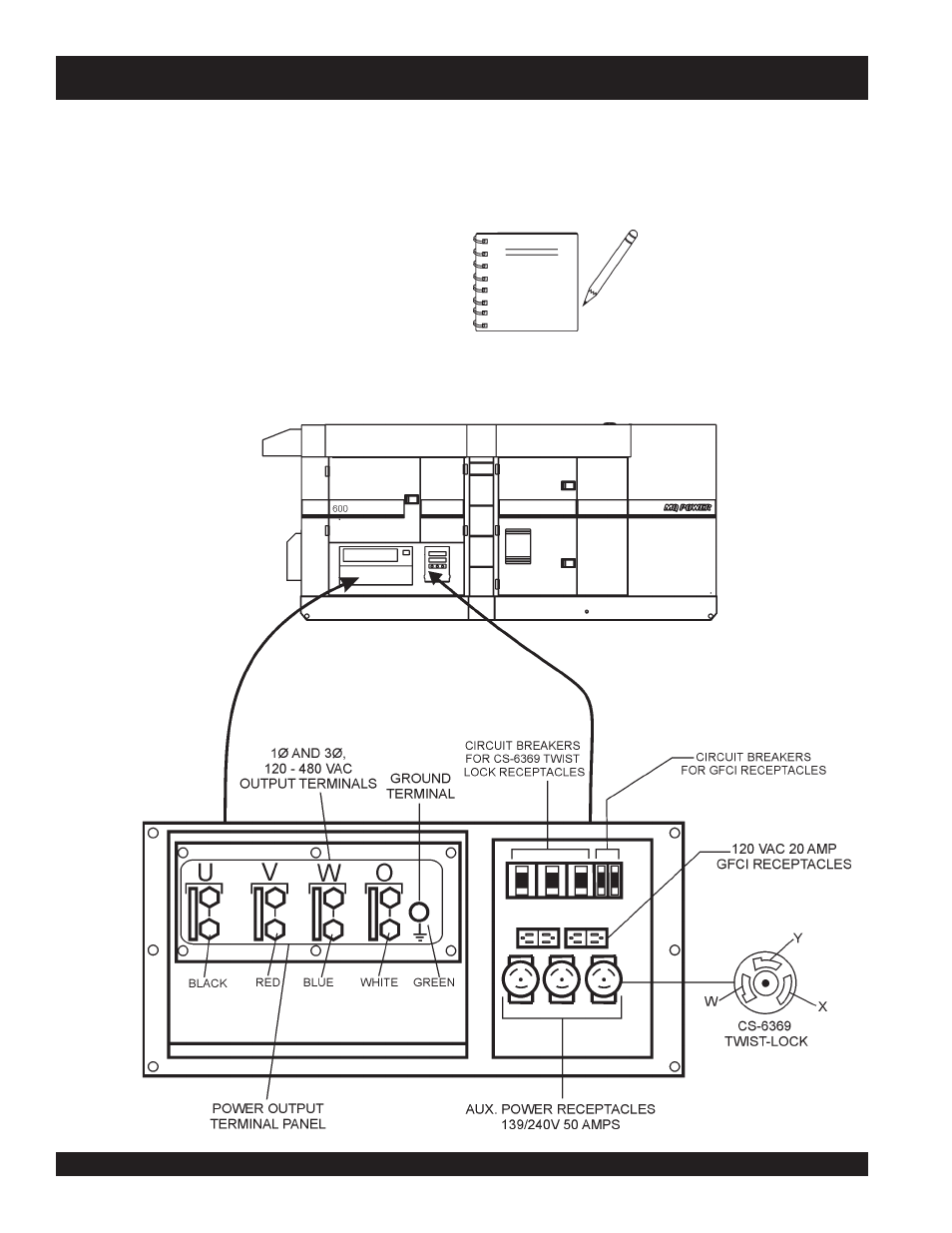

Figure 8. Output Terminal Panel

Output Terminal Familiarization

The “

Output Terminal Panel ” (Figure 8) is provided with

the following:

 Three 240/139V output receptacles, 50 amp
 Three AUX. circuit breakers 240V @50 amps
 Two 120V GFCI receptacles, 20 amp
 Two (2) GFCI circuit breakers 120V@ 20 amps
 Eight (16) output terminal lugs

Output Terminal Panel

Shown below (Figure 8) is the

Output Terminal Panel , lift

up on the cover to gain access to receptacles and terminal
lugs.

Terminal legs "O" and "Ground"
are considered

bonded grounds

NOTE
