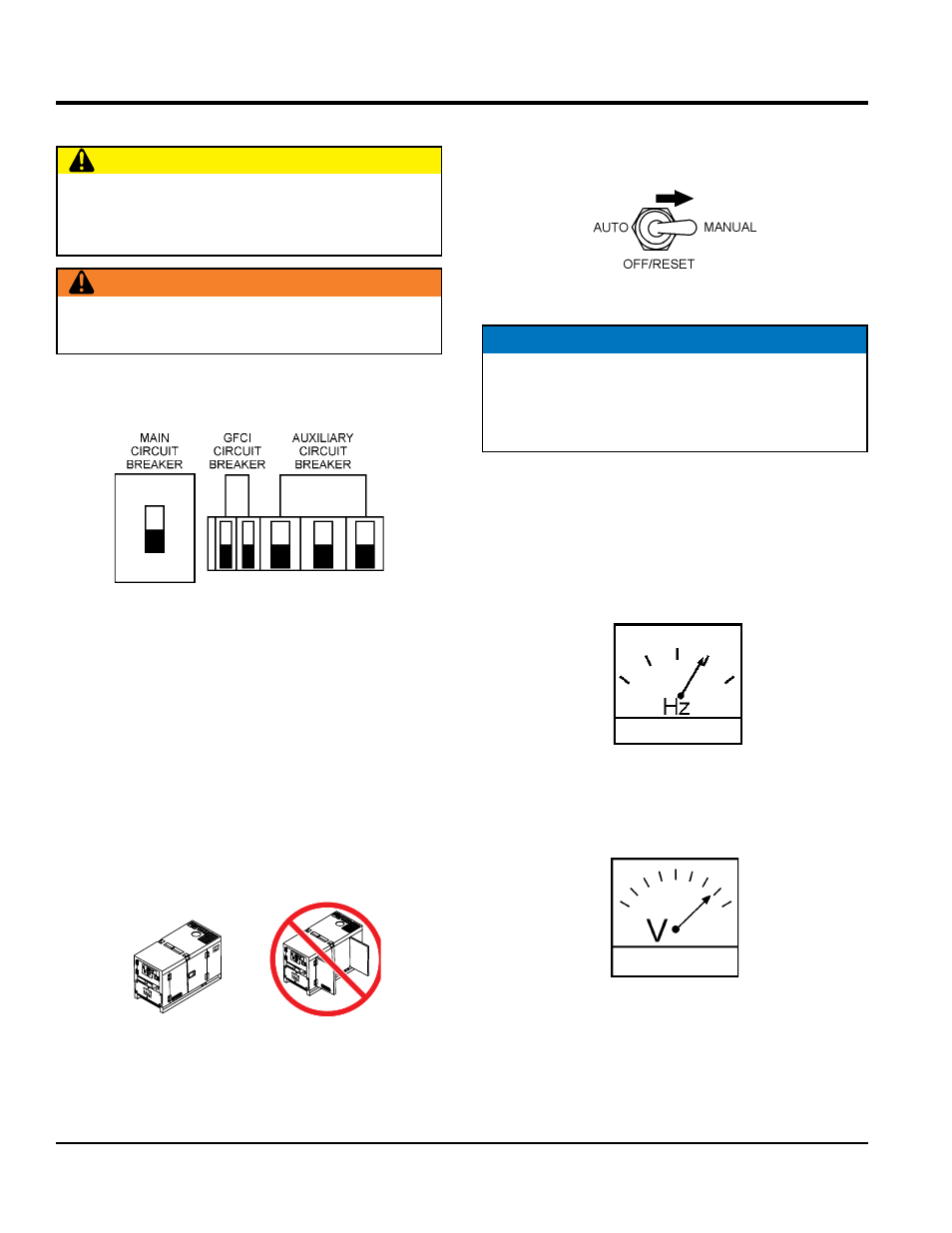

BeFore StartIng
1. Place the main, g.F.c.I., and aux. circuit breakers
(Figure 34) in the OFF position prior to starting the
engine.
Figure 34. Main, Aux. and GFCI
Circuit Breakers (OFF)
2. Make sure the voltage change-over board has been
configured for the desired output voltage.
3. Connect the load to the receptacles or the output
terminal lugs as shown in Figure 10. These load
connection points can be found on the output terminal
panel and the output terminal panel’s hard wire hookup
panel.
4. Tighten terminal nuts securely to prevent load wires
from slipping out.
5. Close all engine enclosure doors (Figure 35).
Figure 35. Engine Enclosure Doors
caUTION
The engine’s exhaust contains harmful emissions.
alWaYS have adequate ventilation when operating.
Direct exhaust away from nearby personnel.
WaRNING
never manually start the engine with the main, GFcI
or auxiliary circuit breakers in the ON (closed) position.
INCORRECT CORRECT
StartIng (manUal)
1. Place the Auto-Off/Reset Manual Switch in the
manUal position to start the engine (Figure 36).
Figure 36. Auto-Off/Reset Manual Switch
(Manual Position)
2. Once the engine starts, let the engine run for 1-2
minutes. Let engine idle longer in cold weather
conditions. Listen for any abnormal noises. If any
abnormalities exist, shut down the engine and correct
the problem.
3. The generator’s frequency meter (Figure 37) should be
displaying the 60 cycle output frequency in hertz.
Figure 37. Frequency Meter
4. The generator’s AC-voltmeter (Figure 38) will display
the generator’s output in voltS. If the voltage is not
within the specified tolerance.
Figure 38. Voltmeter
NOTICE
If engine fails to start in a specified number attempts,
the shutdown lamp will illuminate and the Auto-Off/
Reset Switch must be place in the Off/Reset position
before the engine can be restarted.
