ASSEMBLY INSTRUCTIONS/OPERATIONS
8FP FLOOR PLANER SERIES OPERATION AND PARTS MANUAL REV #1 (10/27/06) PAGE 38

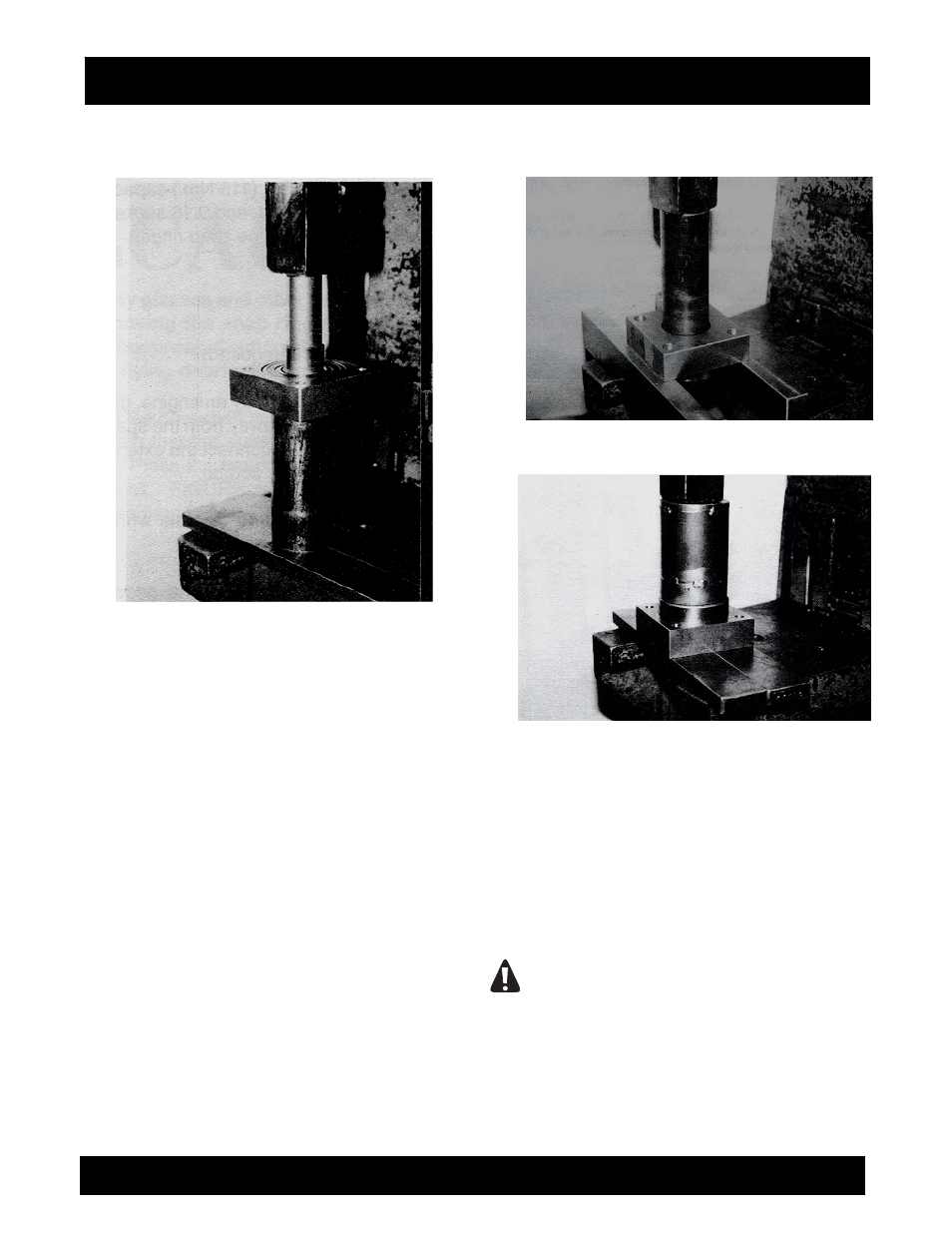

FIGURE 46
7) Clean and inspect the internal hexagon bushing for
damage and excessive wear. Replace the bushing if
required.
8) Position the bearing block on the arbor press with
the bearing facing down. Determine that the bearing
block is properly supported. Using the arbor press and
an appropriate sized thrust bushing, remove the
bearing from the block. FIGURE 47.
9) Clean the inside bore diameter of the bearing block
and inspect for damage.
10) Clean the outside diameter of the replacement
bearing. Apply a suitable amount of anaerobic
adhesive/sealant to the outside diameter of the
bearing. Align and press the replacement bearing into
the bearing housing until it seats itself against the
flange. FIGURE 48.
FIGURE 47
FIGURE 48
11) Position the bearing block with the bearing facing
down. Determine that the bearing block and
replacement bearing are both properly supported.
Using the arbor press, align and press the internal
hexagon bushing into the bearing block until it seats
itself against the flange. FIGURE 49.
12) Reinstall the snap ring on the internal hexagon
bushing.
CAUTION
Wear safety glasses and other appropriate apparel
when removing/installing the snap ring or
performing any work with an arbor press. Caution
all onlookers about the possibility of flying debris
and personal injury.
