PAGE 30 — HTXD6i/STXD6i TROWEL • SETUP, ADJUSTMENTS AND CALIBRATIONS — REV. #1 (01/24/14)
FUSE INFORMATION
Table 3. Fuses
Fuse Number Amps Designator Functions Fused
1 20
T13 MCU Power
T21 Service Port Connector
2 20 T3 Oil Cooler
3 5
T5 Light Switch
T15 Pitch Switches
4 20 T6 Left Lights
5 7.5 T23 Sprayers
6 20 T7 Right Lights
Table 4. Ground
Location Designator Functions Grounded
Top Left
T12 MCU
T14 Pitch Switch, Throttle, Cruise, LED's, Cluster gauge
Middle Left
T20 Service Port Connector
T24 Spray Pumps
Bottom Left
T25 Rear Lights
T26 Pitch Switch, Throttle, Cruise, LED's, Cluster gauge
T28 Engine Harness
Bottom Right
T1 Pitch Valves
T2 Control Relay
Middle Right
T4 Cooler Fan
T27 Front Right Lights
Top Right
T31 PRM (Power Relay Module)
T32 Hour Meter
Refer to Figure 45 for location on fuse panel.

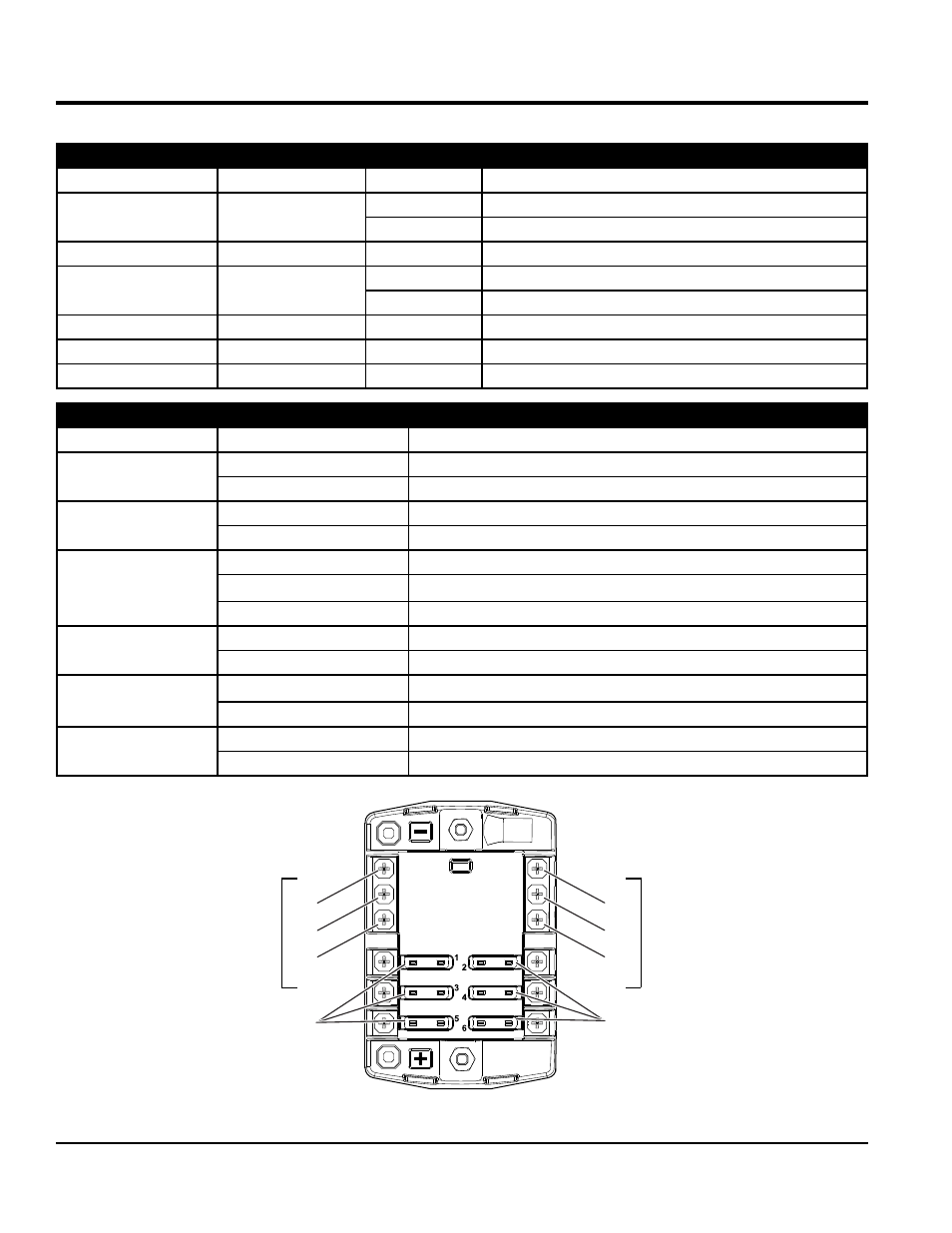

Figure 45. Fuse and Ground Location
20
5
7.5
20
20
20
TL TR
MR
BR
ML
GROUND
FUSES
FUSE PANEL
FUSES
GROUND
BL
