INITIAL CHECK AND ADJUSTMENTS
PRELIMINARY CHARGE PRESSURE ADJUSTMENT
1. Loosen 1-1/16" jam nut on charge relief valve (Item
A, Figure 5).
2. Use a 1/2" socket to adjust the small hex nut within the
larger hex jam nut (Item B, Figure 5).
3. Rotate small hex nut (Item B, Figure 5) clockwise until
bottomed out. DO NOT overtighten.

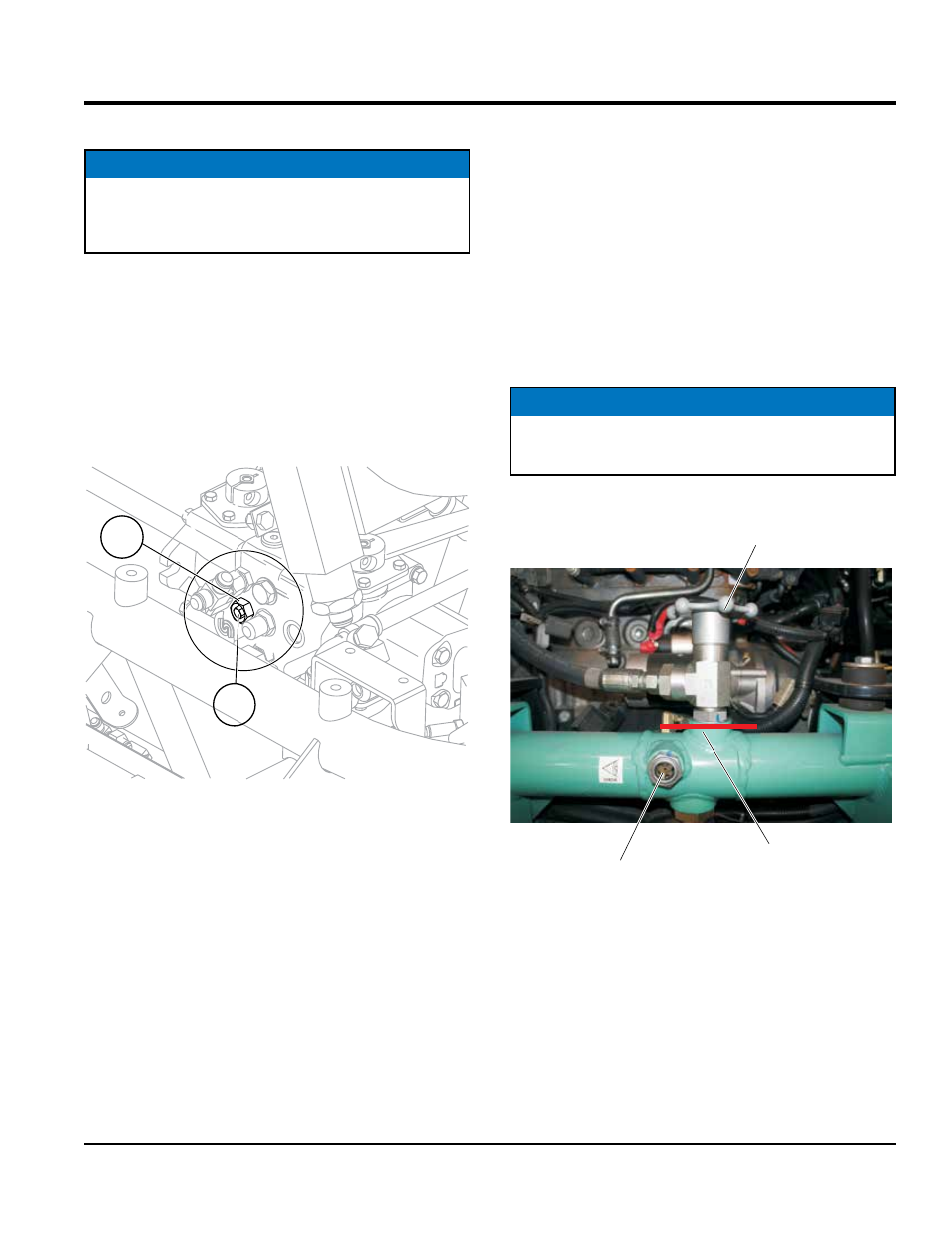

Figure 5. Preliminary Charge Pressure
Adjustment
NOTICE
Skipping this step during initial set-up may cause
machine to inadvertently move during further steps,
due to insufficient charge pressure.
A
B
OIL AND COOLANT CHECK
Hydraulic Oil Check
1. Make sure the machine is cold.
2. Remove the starwheel cap (Figure 6) and visually
check oil level.
3. Make sure that it is filled to the red line as shown in
Figure 6.
4. Put back and tighten starwheel cap after checking or
filling.
Figure 6. Oil Level Check
NOTICE
The sight glass is only used to check the fluid condition
(dirt or air bubbles) and not to check the oil level.
FLUID CONDITION
SIGHT GLASS
OIL LEVEL
(FULL)
REMOVE STARWHEEL
CAP TO CHECK OIL LEVEL
