PAGE 26 — HTXD6i/STXD6i TROWEL • SETUP, ADJUSTMENTS AND CALIBRATIONS — REV. #1 (01/24/14)
Set Zero Pitch Cylinder Stops
1. Flatten blades (bottom out the pitch cylinders).
2. Turn machine off.
3. Remove clevis pin (Item E, Figure 39) from pitch
cylinder allowing yoke (Item B, Figure 39) to rest on
thrust collar.

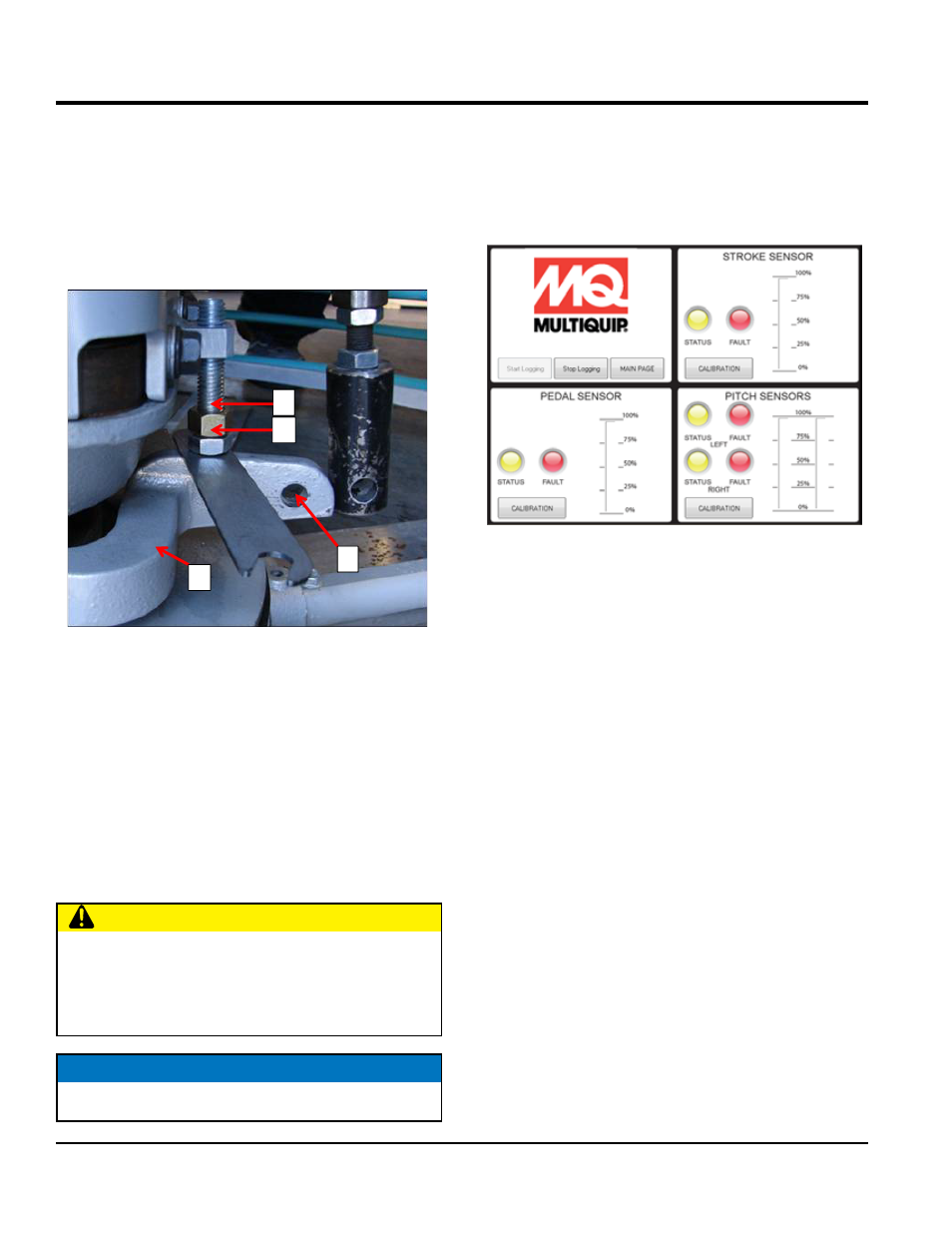

Figure 39. Zero Pitch Adjustment
4. Loosen jam nut (Item C, Figure 39) with ¾” wrench.
5. Set distance between head of stop (Item D, Figure 39)
and yoke (Item B, Figure 39) to .075” (14 gauge steel,
Gauge #32020).
6. Loctite and tighten jam nut (Item C, Figure 39).
7. Reinstall clevis pin (Item E, Figure 39) between pitch
cylinder and yoke.
Pitch Sensor Calibration
E
B
C
D
CAUTION
Machine movement will occur during this step. All
guards should be in place. Keep fingers, hands, hair,
and clothing away from all moving parts to prevent
injury.
NOTICE
Pitch mode switch must be in the manual position.
MACHINE SETUP AND CALIBRATION
1. Turn machine off for at least 10 seconds and then
restart machine.
2. Click “Calibration” button on machine setup page.
3. Click “Calibration” button in Pitch Sensors section
(Figure 40).
Figure 40. Pitch Sensor Calibration
4. Press “zero” button (Figure 42) to begin calibration.
5. Set Calibration Point 1.
a. Press Hard Ext. button to fully extend pitch
cylinders.
