PAGE 10 — HTXD6i/STXD6i TROWEL • SETUP, ADJUSTMENTS AND CALIBRATIONS — REV. #1 (01/24/14)
TOOLS NEEDED
The specialized tools listed in Table 1 are required to maintain and service the HTXD6i and STXD6i ride-on trowels. Fleet
technicians and servicing dealers must have these tools for efficient unit setup and component calibration.

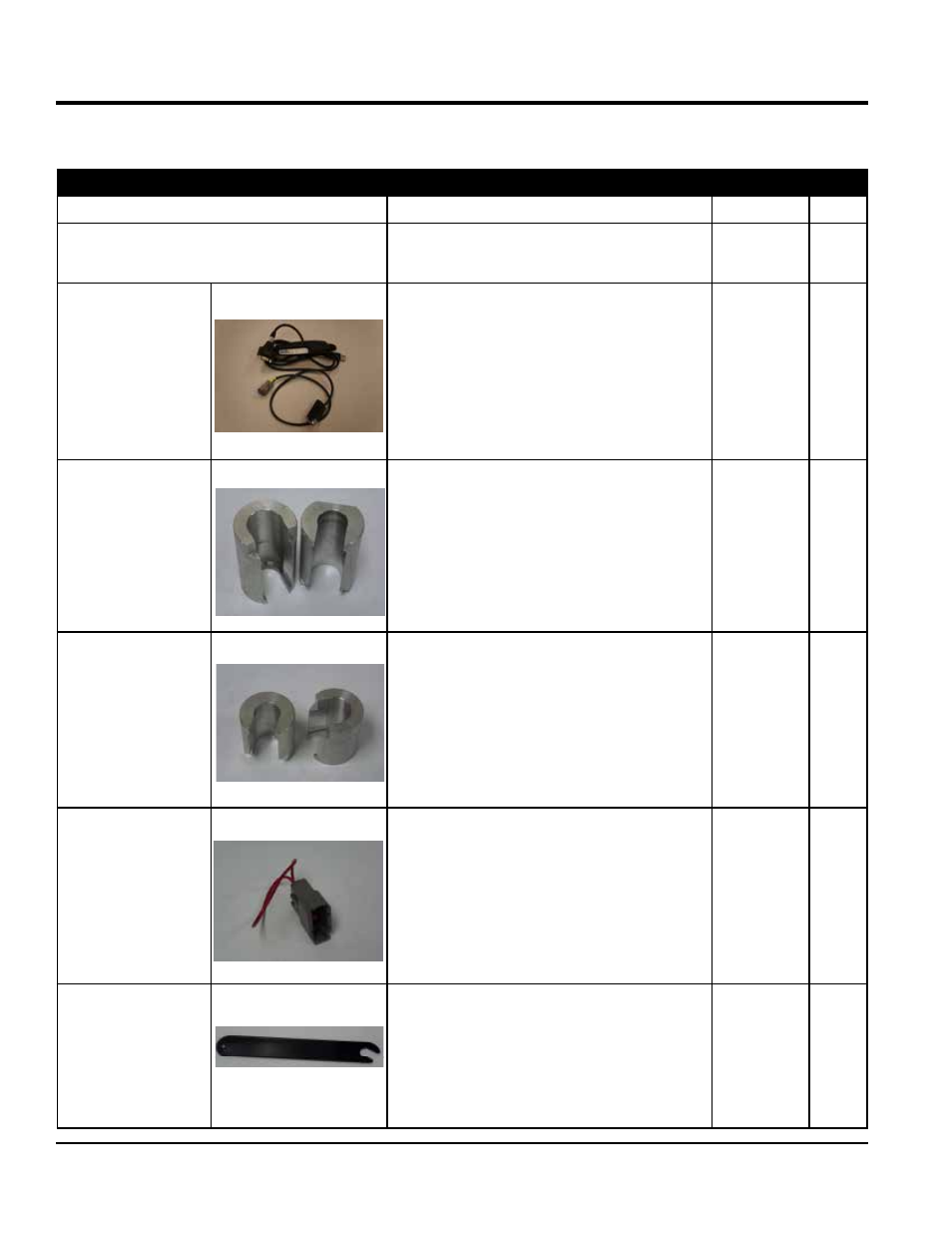

Table 1. Setup, Calibration, and Diagnostic Tools
TOOL DESCRIPTION PART NO. QTY
Tool Kit Includes all tools listed below. 32062 1
CAN Gateway Cable
Required to interface to the trowel MCU.
Required for foot pedal calibration, pitch
sync calibration, stroke cylinder calibration,
engine fault code reading, diagnostics, ETC.
22882 1
Gauge Tool (3.25”)
Used in calibrating one of the two blade pitch
set points as part of the synchronization
process.
32044 2
Gauge Tool (2.25”)
Used in calibrating one of the two blade pitch
set points as part of the synchronization
process.
32000 2
Set Up Jumper
Used to place the engine at full speed for
component calibration and to simultaneously
disable both the stroke follower and cold
start mode.
32007 1
Pedal Wrench
Used to help set the foot pedal sensor. It is
also used for setting the Zero Pitch Cylinder
Stops by using the thickness of the wrench.
32020 1
