HTXD6i/STXD6i TROWEL • SETUP, ADJUSTMENTS AND CALIBRATIONS — REV. #1 (01/24/14) — PAGE 17

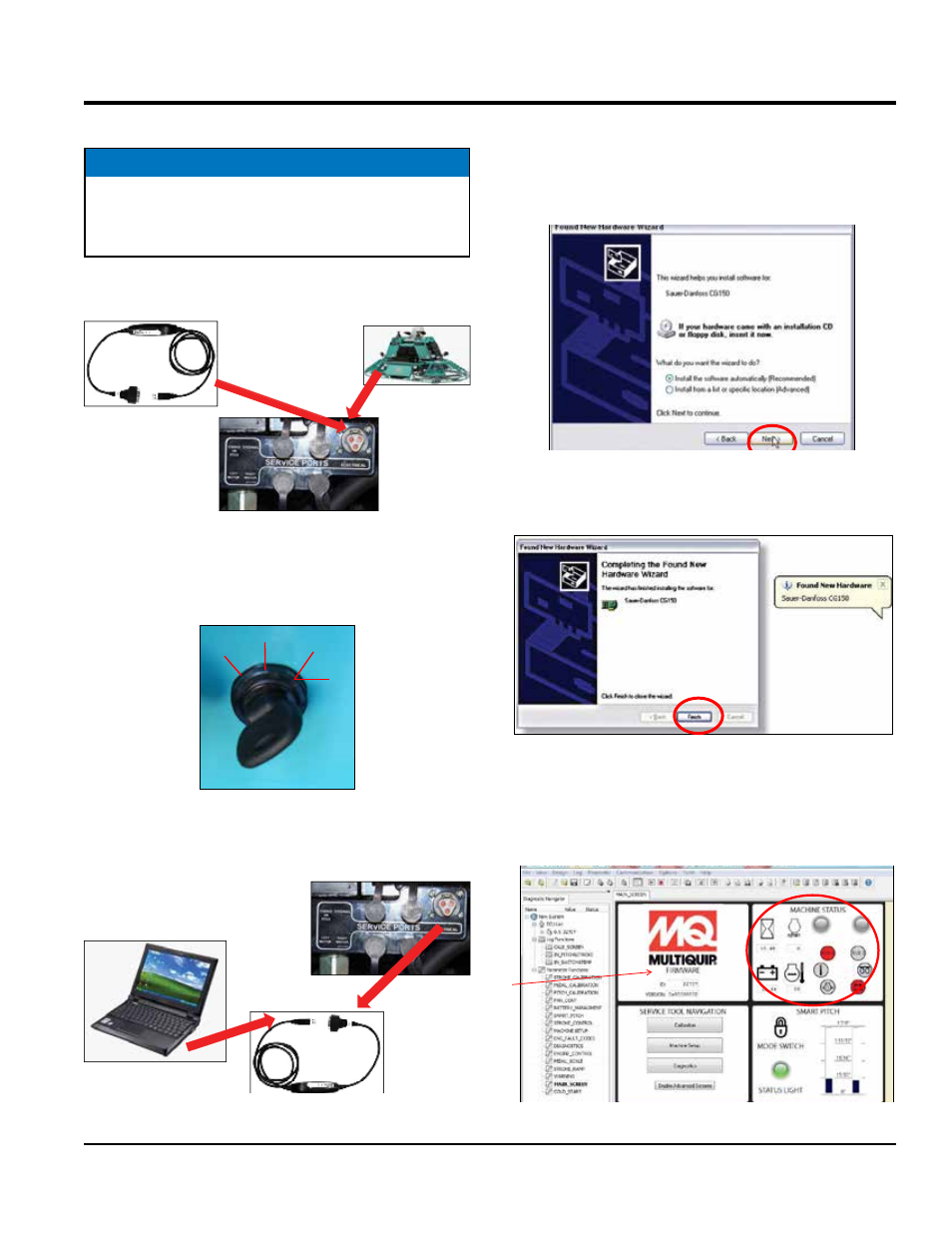

LAPTOP CONFIGURATION
CONNECTION PROCEDURE
1. Plug the CAN Gateway cable to the trowel at the service
port (Figure 16). Do not connect laptop at this time.
Figure 16. CAN Gateway Cable to Service Port
2. On the trowel, turn the ignition key to the ON position
(Figure 17). This will turn on the MCU. It is not
necessary to crank or turn on the engine.
Figure 17. Ignition Key ON
3. Connect the USB connector of the CAN Gateway cable
to the USB port (Figure 18).
Figure 18. Connecting the Laptop
NOTICE
Make sure that the Sauer Danfoss Plus Software and
Whiteman Service Tool (WST) are installed before
proceeding with the connection procedure.
Whiteman Service Tool Application
Connecting Laptop to Trowel
24
• Turn the Key to the ON position, Cranking or turning on the
engine is not required.
CRANK
ON ACC
OFF
4. When the CAN Gateway cable is connected to the
laptop for the first time, it is necessary to install the
CAN driver software. The installation screen will
appear (Figure 19). Click "Next" to install the software
automatically (default).
Figure 19. CAN Driver Installation
5. Click "Finish" on the next screen (Figure 20) to
complete installation.
Figure 20. CAN Driver Installation Complete
6. On the Service Tool software on your laptop, the main
screen should show Firmware info loaded from trowel
MCU and the Machine Status box shows lamps lit
(Figure 21).
Figure 21. Service Tool Main Screen
Connecting Laptop to
Trowel
26
• First time connected.
• CAN Driver Software install.
WST – Whiteman Service Tool
Connecting Laptop to
Trowel
26
• First time connected.
• CAN Driver Software install.
WST – Whiteman Service Tool
Connecting Laptop to Trowel
27
• Main Screen
• Firmware info
is loaded from
MCU
• Machine
Status box
shows LAMPS
lit.
WST – Whiteman Service Tool
