HHNg5 RIDe-ON TROWeL • OpeRaTION maNuaL — Rev. #0 (07/16/13) — page 19
cOMPOnEntS

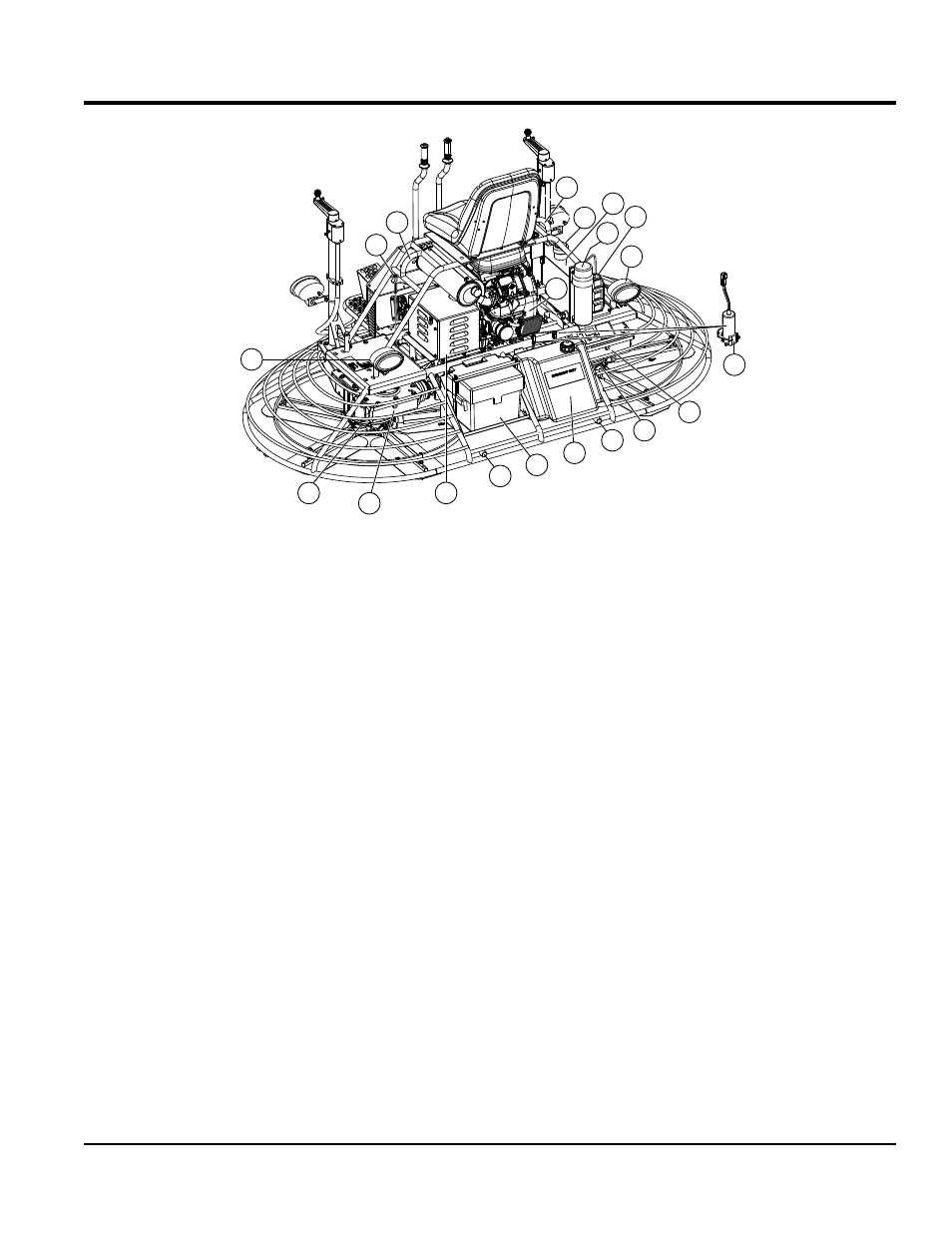

Figure 3. HHNG5 Components (Rear)
20
22
24
26
28
31
33
36
35
34
38
37
23
29
32
39
25
27
30
21
20.
left Rear light — 55 watt, 12 VDC Hella™ halogen
light is provided for night time and indoor work.
21.
Choke knob — Used in the starting of a cold engine,
or in cold weather conditions. The choke enriches the
fuel mixture.
22.
left-Side lift loop — Attach a strap of adequate lifting
capacity to this loop when the trowel must be lifted.
23.
Right-Side lift loop — Attach a strap of adequate
lifting capacity to this loop when the trowel must be
lifted onto a concrete slab.
24.
Fuel Tank — Holds 5 gallons of fuel. Use unleaded fuel.
25.
Fuel gauge/Filler Cap — Indicates the amount of fuel
in the fuel tank. Remove this cap to add fuel.
26.
documentation Holder — Contains operation manual
and other documents relating to the trowel.
27.
Charcoal Canister — A container filled with activated
charcoal that traps gasoline vapors emitted by the fuel
system.
28.
left Rear light — 55 watt, 12 VDC Hella™ halogen
light is provided for night time and indoor work.
29.
Engine — This trowel uses a Briggs ans Stratton,
Vanguard 35 HP gasoline engine.
30.
Right and left Side Retardant Spray Pumps —
Delivers retardant to the spray nozzles.
31.
Right-Side Hydraulic Oil Sight Glass — Indicates
the level of the hydraulic oil in the right-side gear box.
32.
Right-Side Spider — Consists (basic) of trowel arms,
blades, wear plate, and thrust collar etc.
33.
ez- mover Boss — Insertion point (right-rear) for EZ
Mover. Used when the transporting of the trowel is
required.
34.
Retardant Spray Tank — Holds 5 gallons of retardant.
35.
Battery — Provides +12V DC power to the electrical system
36.
ez- mover Boss — Insertion point (left-rear) for EZ
Mover. Used when the transporting of the trowel is
required
37.
Belt guard — Encloses drive belt used in conjunction
with clutch. Spare drive belt is also enclosed inside
this guard.
38.
left-Side Hydraulic Oil Sight Glass — Indicates the
level of the hydraulic oil in the left-side gear box.
39.
left-Side Spider — Consists (basic) of trowel arms,
blades, wear plate, and thrust collar etc.
