page 14 — HHNg5 RIDe-ON TROWeL • OpeRaTION maNuaL — Rev. #0 (07/16/13)

DIMEnSIOnS/SPEcIfIcAtIOnS (tROwEL)

Table 1.

C

B

A

D

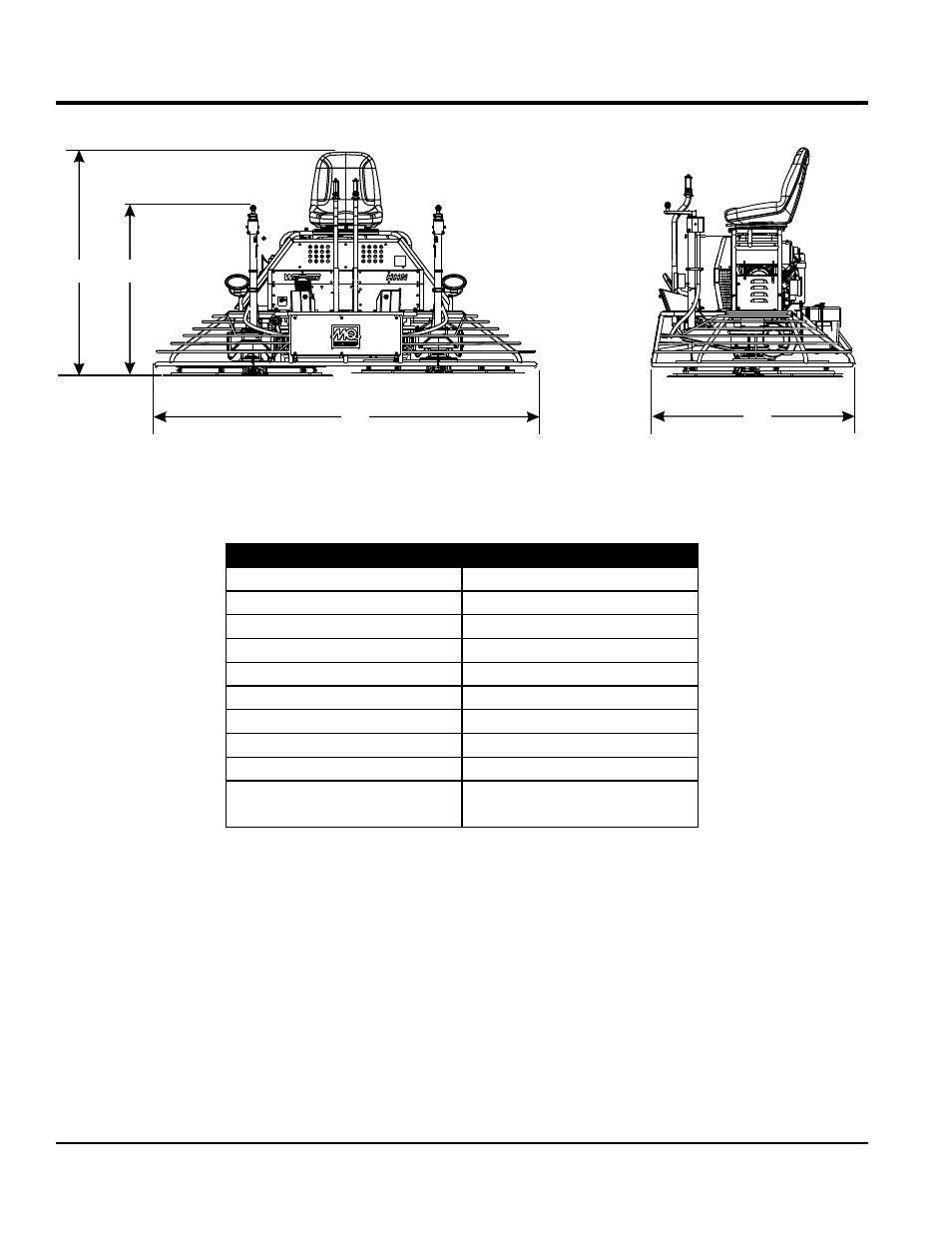

Figure 1. Dimensions

Table 2. HHNG5 Specifications

A–Length – in. (cm)

97.0 (246.4)

B–Height (Seat) – in. (cm)

50.0 (127)

C–Height (Crank Handle) – in. (cm)

46.0 (117)

D–Width – in. (cm)

46.0 (117)

Weight – lbs. (kgs.) Operating

1,083 (495)

Weight – lbs. (kgs.) Shipping

1,368 (620)

Fuel Tank – gallons (liters)

5 (19)

Rotor – RPM

0 to 180

Path Width – in. (cm)

92 (233)

Gear Box Oil Capacity

144 OZ.

(4.26 liters)

ISO 22O AGMA GR 5EP
