PAGE 18 — WRS 5200 RIDE-ON ROLLER SCREED — PARTS MANUAL — REV. #2 (08/09/02)

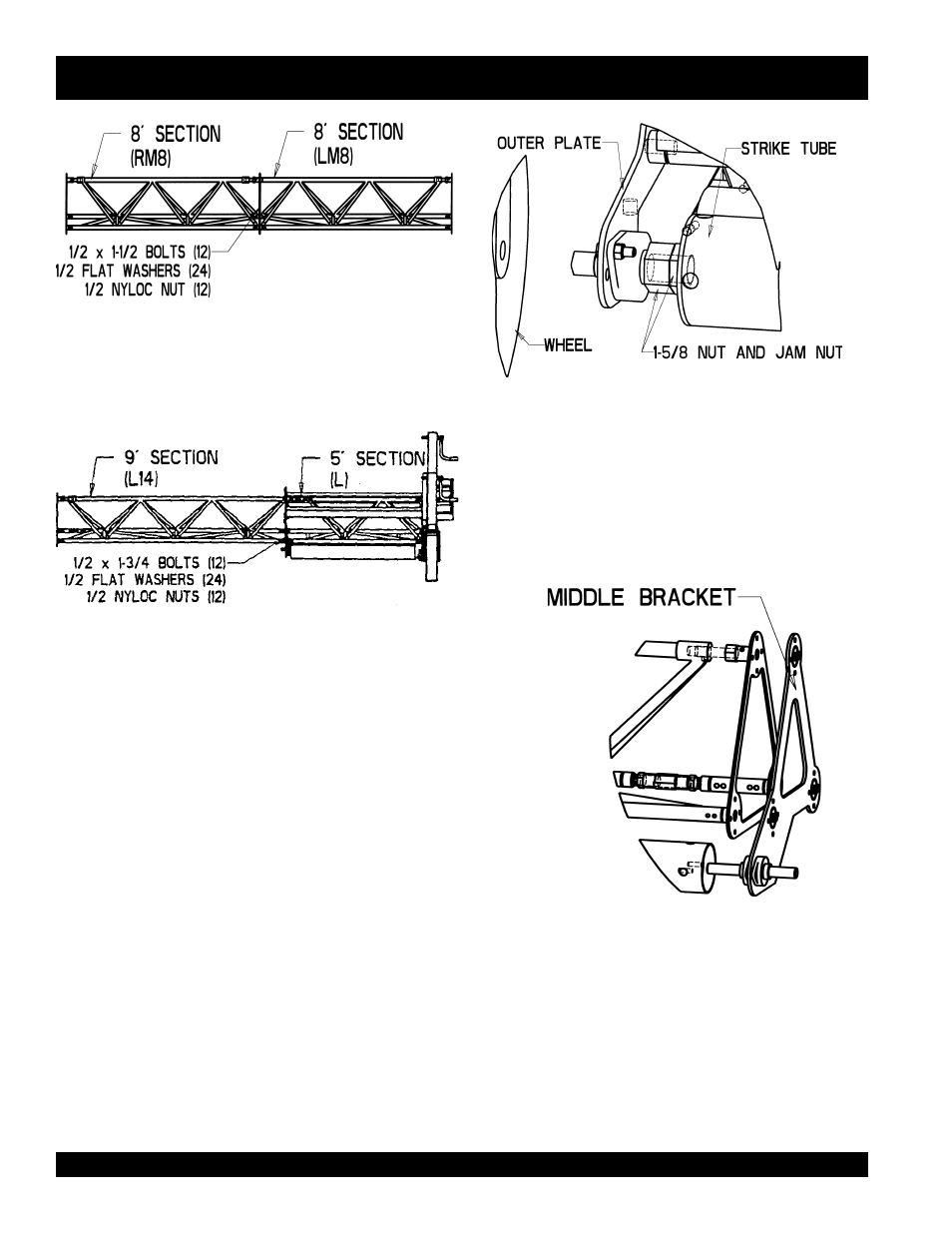

Figure 6. Middle Section 16 Feet
Figure 7. Left Section 14 Feet
Task 2.
Once the assemblies mentioned above are finished, start
on one end, take the strike tube and insert it into the 1-3/8
bearing mounted on the outer plate as shown in Figure 8.
The 1-5/8 nut and jam nut should be turned in until they are
against the strike tube hub.
Figure 8. Strike Tube Mount
Task 3.
Take the middle bracket and insert the splined shaft of it into
the other end of the strike tube as shown in Figure 9. Slide
the middle bracket pins into the section just made.
Figure 9. Middle Bracket Mount
WRS-5200 — ASSEMBLY INSTRUCTIONS
