PAGE 26 — PRO12 HYDRAULIC MIXER • OPERATION MANUAL — REV. #1 (06/04/14)
OPERATION
MIXING

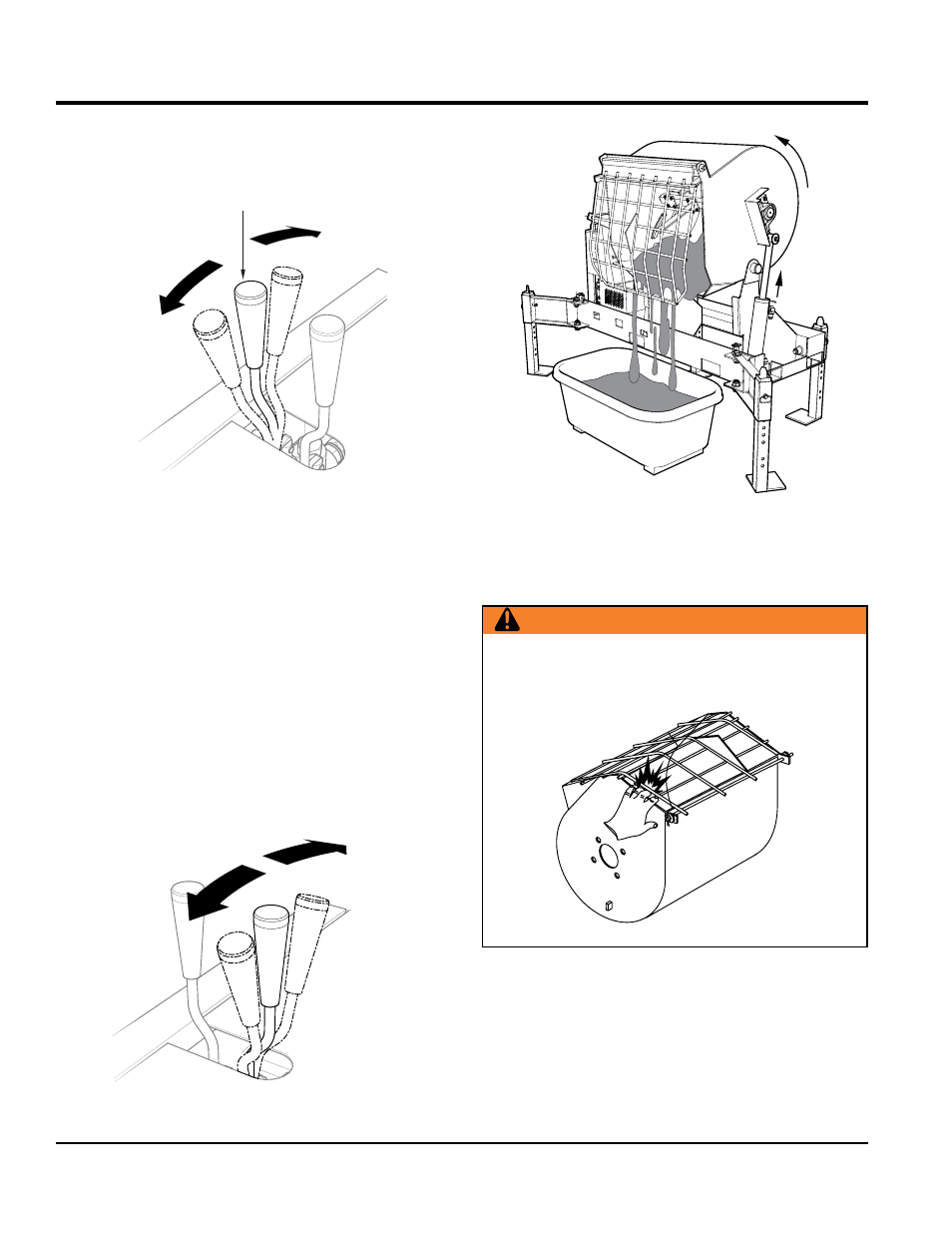

1. On the hydraulic valve, push lever inward (Figure 26)
for clockwise mixing rotation of blades.
Figure 26. Hydraulic Paddle Lever
2. The paddle shaft inside the drum should be rotating
at this time.
3. Add a small amount water to the mixing drum.
4. Lift the mixing bag compound onto the steel safety
grate over the bag cutter and let the contents fall into
the drum. Add more water if desired and mix compound
to desired consistency.
DUMPING
1. Push hydraulic dump lever (Figure 27) outward to place
drum in dump position (Figure 28).
Figure 27. Hydraulic Dump Lever
NEUTRAL
PUSH IN
TO MIX
PULL OUT
TO REVERSE
PUSH
TO DUMP
PULL
TO RETURN
Figure 28. Hydraulic Dump
2. Pull hydraulic dump lever inward to place drum back
in upright position.
WARNING
When rotating the mixing drum from the dump position
to the upright position, keep hands clear of safety grate.
The possibility exists of hands or fingers being crushed.
