INSPECTION
HYDRAULIC OIL
Check hydraulic oil sight gauge (Figure 9) to ensure that
hydraulic oil is at the midway level.

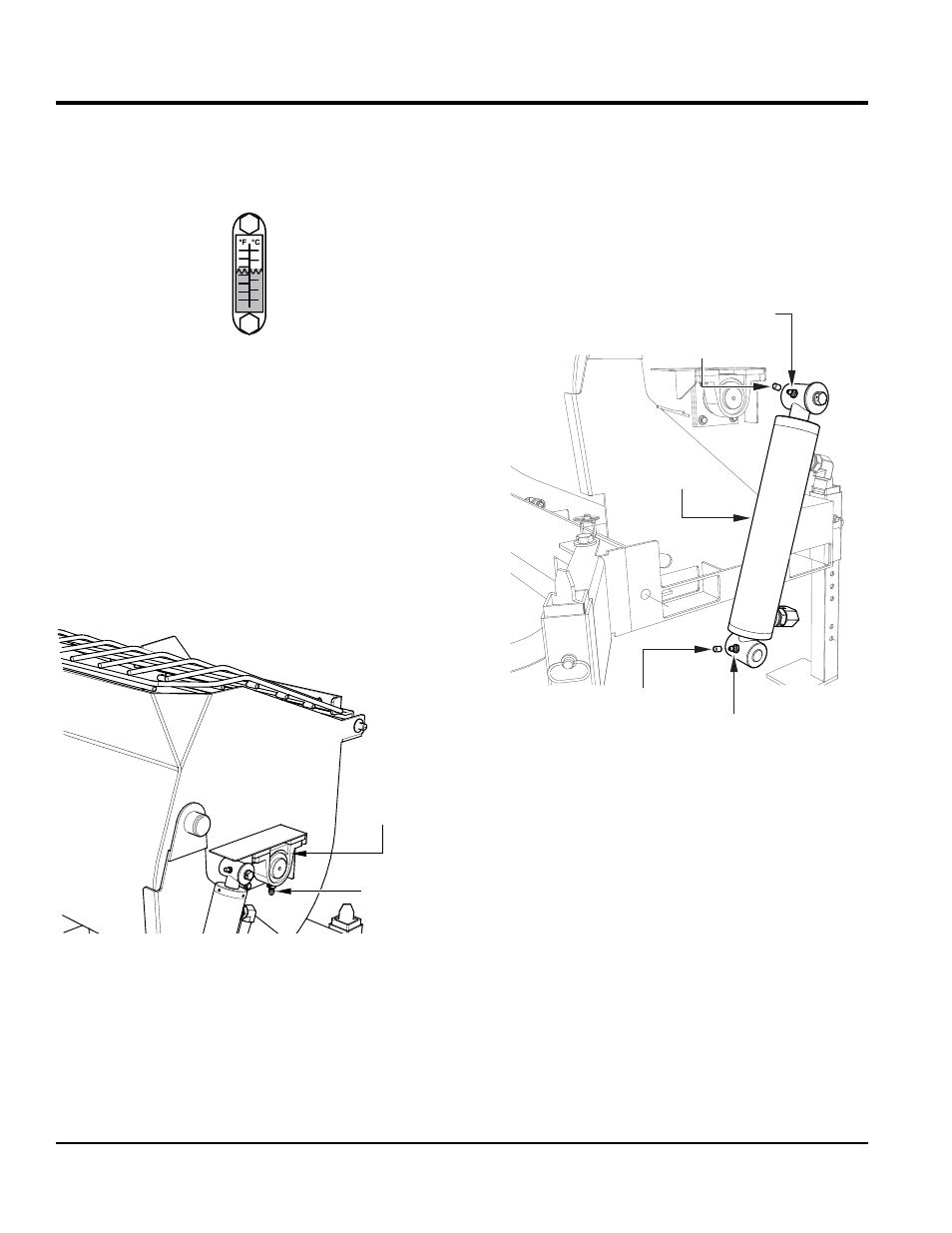

Figure 9. Hydraulic Oil Sight Gauge
HYDRAULIC HOSES
Check hydraulic hoses (Figure 3) to make sure they are
not worn, frayed or defective.
GREASE FITTINGS (BEARINGS)
Check the zerk grease fittings (Figure 10) at each end of
the mixing drum. These grease fittings lubricate the paddle
shaft bearings. Grease daily, preferably at the end of the
day. Grease until visible inside drum to assure cavity area
is free of contamination.
GREASE
FITTING
BEARING
Figure 10. Grease Fittings (Bearings)
GREASE FITTING (DUMP CYLINDER)
Check the zerk grease fittings on the dump cylinder
(Figure 11). Give the fittings a shot of grease every week.
This grease fitting lubricates the hydraulic dumping
mechanism.
Figure 11. Grease Fittings (Dump Cylinder)
GREASE FITTING CAP
GREASE FITTING CAP
GREASE FITTING
GREASE FITTING
DUMP CYLINDER
