pAgE 24 — ga6HB/ga6HeB 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (03/13/14)
oPeRaTion/sHuTDown

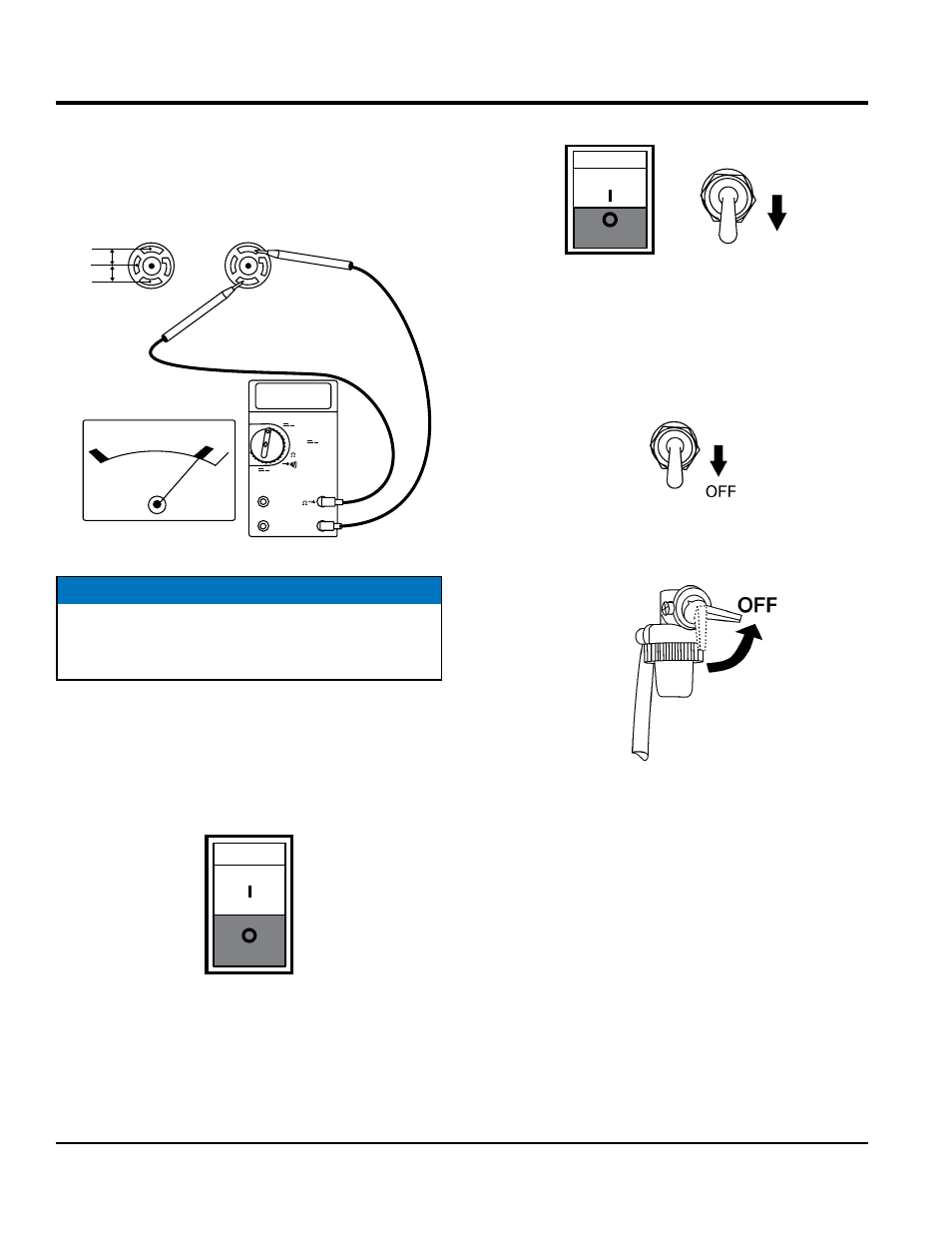

12. Read voltmeter on front panel of generator (Figure 22)
and verify that 240 VAC is displayed. Using an external
voltmeter as shown in Figure 22, verify that 240 VAC is
present at the 120/240V, L14-30R twist-lock receptacle.
Figure 22. 120/240V L14-30R Receptacle
13. Connecting of loads (power tools, lighting etc.) to the
generator receptacles can now be done.
stopping the Engine (Normal shutdown)
1. Place main circuit breaker (Figure 23) in the OFF
position.
Figure 23. Main Circuit Breaker (OFF)
240 V
OFF V~
V
300 mV
A A~
V
COM
240 VAC
L14-30R
240VAC
G
Y
X
W
120VAC
G
Y
X
W
120VAC
120VAC
L14-30R
NOTICE
When using a combination of dual receptacles, total
load should not exceed the rated capacity of the
generator.
ON
OFF
2. Place idle control switch (Figure 24) in the OFF position.
Figure 24. Idle Control switch (OFF)
3. Let engine run at idle with no load for 2-3 minutes.
4. To shut-down the engine, place the generator's
operation switch (Figure 25) in the OFF position).
Figure 25. Operation Switch (OFF)
5. Place engine fuel valve lever (Figure 26) in the OFF
position.
Figure 26. Engine Fuel Valve Lever (OFF)
6. Remove all loads from the generator.
Emergency shutdown
1. Place operation switch (Figure 25) in the OFF position
