MVC-90H PLATE COMPACTOR — OPERATION AND PARTS MANUAL — REV. #3 (01/10/11)— PAGE 19

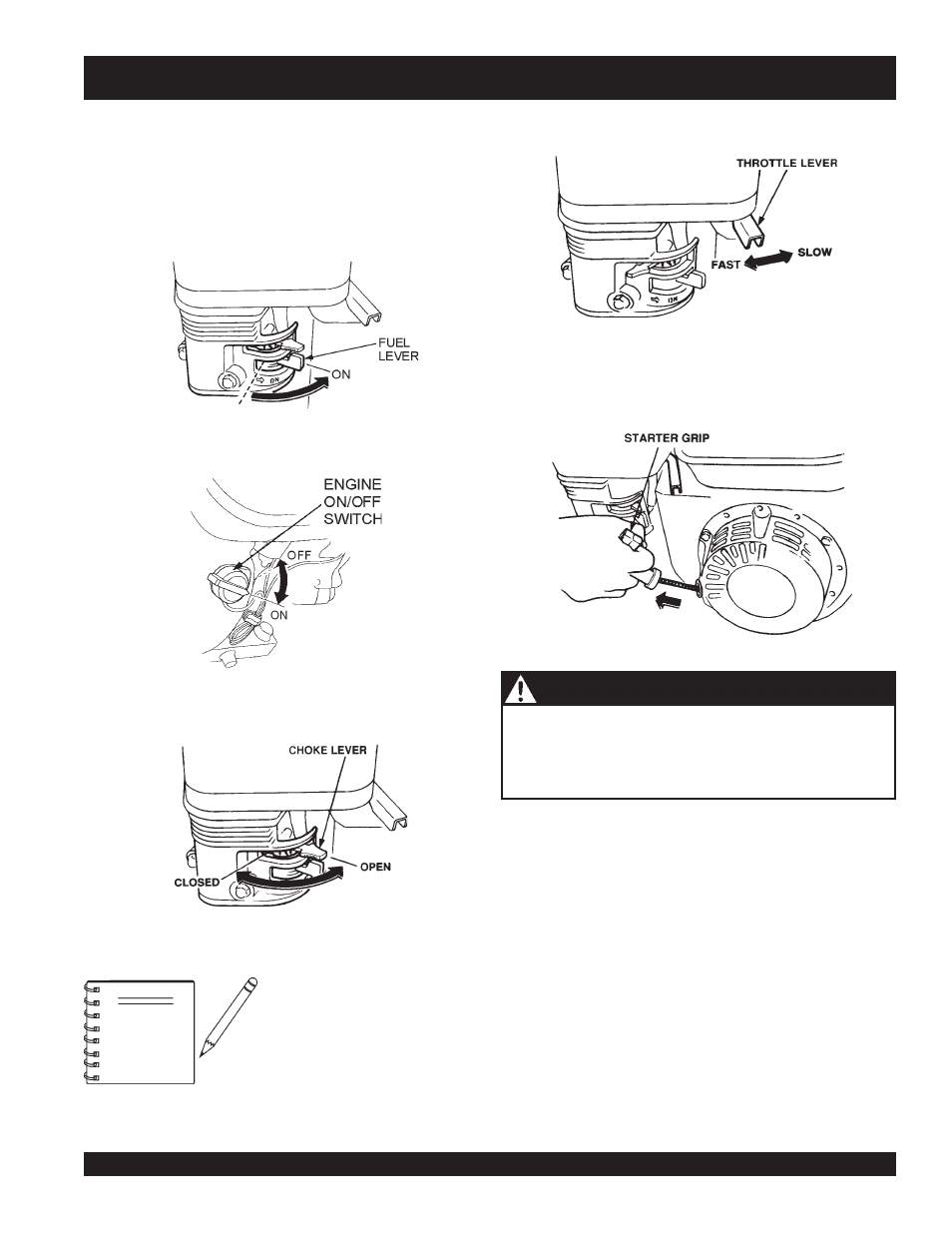

Figure 10. Fuel Valve Lever (ON Position)
Figure 11. Engine ON/Off Switch (ON Position)
4. Place the throttle lever (Figure 13) halfway between fast
and slow.
Figure 13. Throttle Lever (FAST Position)
5. Grasp the starter grip (Figure 14) and slowly pull it out.
The resistance becomes the hardest at a certain posi-
tion, corresponding the compression point. Rewind the
rope a little from that point and pull out sharply.
DO NOT pull the starter rope all the way to the end.
D O NOT release the starter rope after pulling. Allow it to
rewind as soon as possible.
MVC-90H PLATE COMPACTOR — START-UP PROCEDURE
The CLOSED position of the
choke lever enriches the fuel
mixture for starting a COLD
engine. The OPEN position
provides the correct fuel mixture
for normal operation after
starting, and for restarting a
warm engine.
2. Place the Engine ON/OFF switch (Figure 11) in the ON
position.
3. Place the Choke Lever (Figure 12) in the OPEN position.
Figure 12. Choke Lever (OPEN Position)
NOTE
Starting the Engine (Honda engine):
This section is intended to assist the operator with the initial
start-up of the compactor. It is extremely important that
this section be read carefully before attempting to use the
compactor in the field.
1. Place the fuel valve lever (Figure 10) in the ON position.
CAUTION - Using the Recoil Starter Rope
Figure 14. Recoil Starter Grip (Pull to Start)
6. If the engine has started, slowly return the choke lever
(Figure 11) to the CLOSED position. If the engine has not
started repeat steps 1 through 5.
7. Before the compactor is put into operation run the engine
for 3-5 minutes.
8. Check for abnormal engine noises or fuel leaks.
