Handset Setup Procedures
MTS Model 494.05 Handset
19
Note
You can click Thumbwheel Speed to display a window that allows you
to customize the Thumbwheel Speed slider control.
How to Set the Handset Thumbwheel Direction
Use the Station Options window to set what direction the actuator moves when
you move the thumbwheel.
1. Start the Station Manager application.
2. Set the Station Manager access level to Tuning.
3. On the Tools menu, click Station Options.
4. In the Station Options window, click the Handset Options tab.
5. From the Thumbwheel Direction list, select the direction the actuator
moves when you move the thumbwheel.

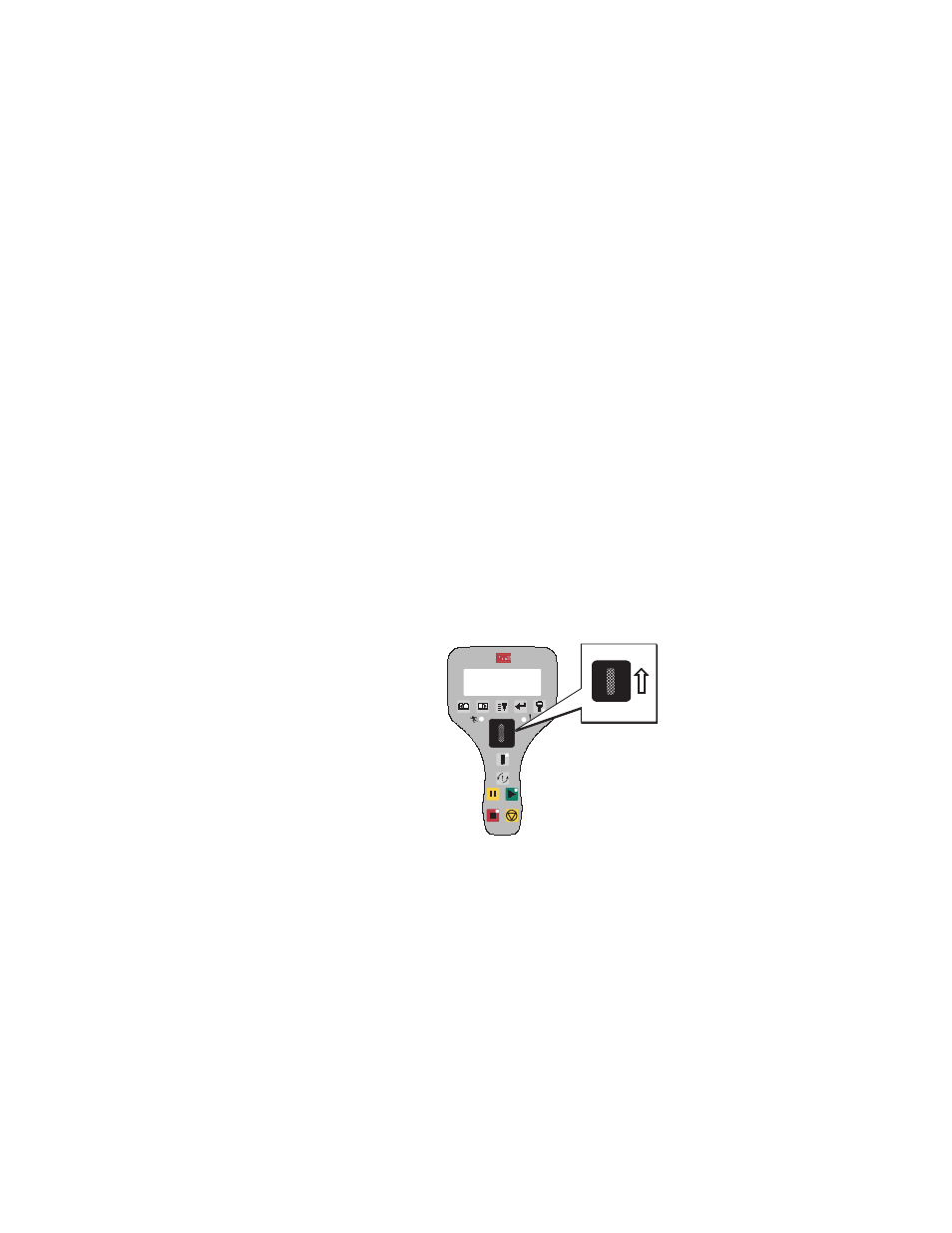

Normal = Move the thumbwheel forward to move the actuator in the
positive direction.
Invert = Move the thumbwheel forward to move the actuator in the
negative direction.
Normal = Positive (+) actuator movement
Invert = Negative (-) actuator movement
