Auto setup, Auto setup 21 – MTS Multi-Pump Control Manager Remote Human-Machine Interface User Manual
Page 23

Auto Setup
Remote Human Machine Interface
Operation
21

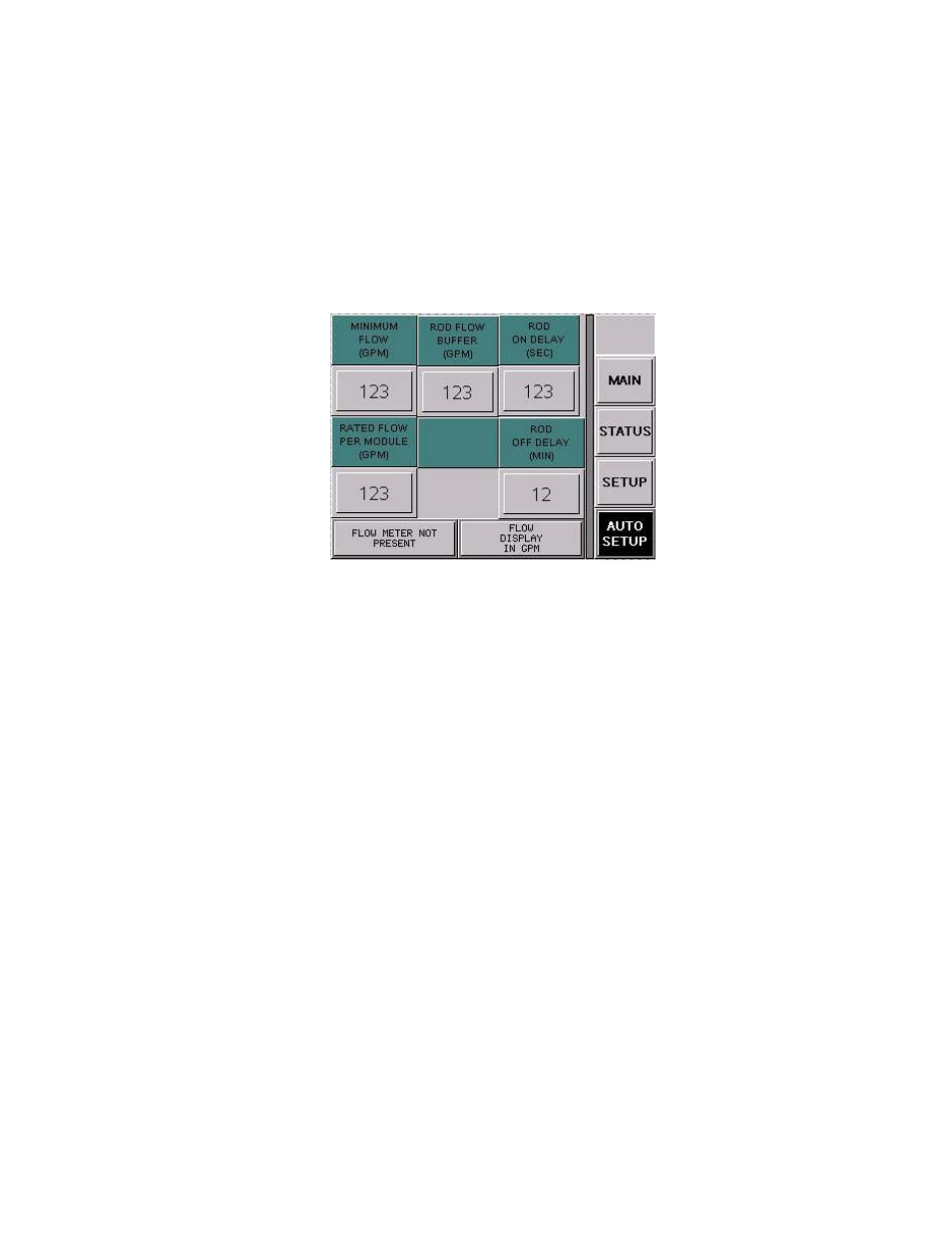

Auto Setup
Note
ROD (Run On Demand) is a purchased option.
Auto Setup parameters can only be viewed on the RHMI. All parameters must be
changes at the local HPU HMI. Information in the following paragraphs is for
reference only.
To select this screen, press and hold the Auto Setup button for five seconds.
